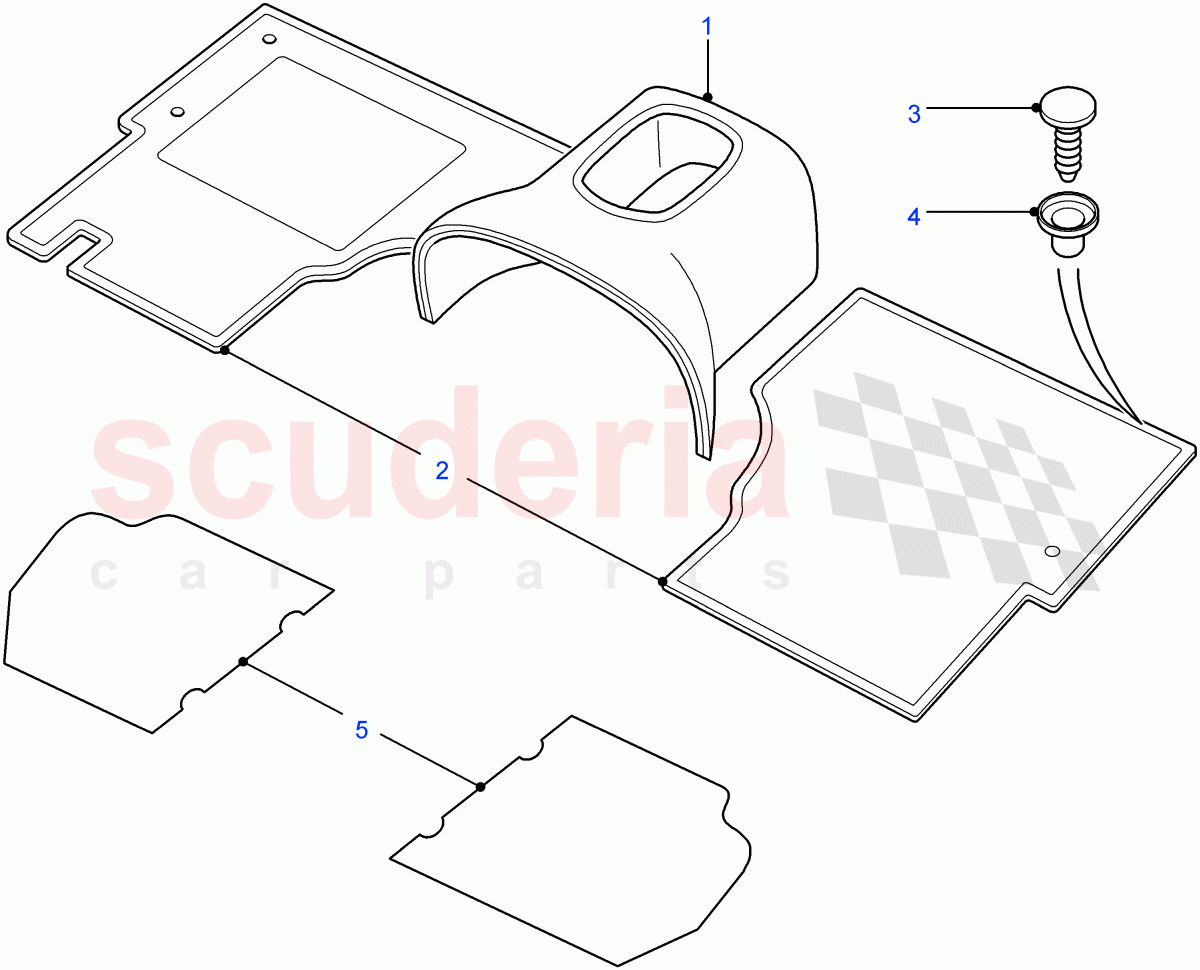

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EAD500550PVJ	CARPET	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ADU8026PMA	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AJU1136L	INSERT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	EAD500550PVJ	CARPET	EAD500550PVJ CARPET Carpet, Ebony Black	-	1	Enquire
2	EAD500410PVJ	CARPET - FLOOR	EAD500410PVJ CARPET - FLOOR RHD / RH, Ebony Black, For Drivers Side / To: BA999999	-	1	Enquire
2	EAD500430PVJ	CARPET - FLOOR	EAD500430PVJ CARPET - FLOOR RHD / LH, Ebony Black, passenger side / To: BA999999	-	1	Enquire
2	EAD500440PVJ	CARPET - FLOOR	EAD500440PVJ CARPET - FLOOR LHD / LH, Ebony Black, For Drivers Side / To: BA999999	-	1	Enquire
2	EAD500460PVJ	CARPET - FLOOR	EAD500460PVJ CARPET - FLOOR LHD / RH, Ebony Black, passenger side / To: BA999999	-	1	Enquire
2	LR031352	CARPET - FLOOR	LR031352 CARPET - FLOOR RHD / RH / From: CA000001	-	1	Enquire
2	LR031382	CARPET - FLOOR	LR031382 CARPET - FLOOR RHD / LH / From: CA000001	-	1	Enquire
2	LR031353	CARPET - FLOOR	LR031353 CARPET - FLOOR LHD / RH / From: CA000001	-	1	Enquire
2	LR031383	CARPET - FLOOR	LR031383 CARPET - FLOOR LHD / LH / From: CA000001	-	1	Enquire
3	ADU8026PMA	CLIP	ADU8026PMA CLIP Ebony Black	-	4	Enquire
4	AJU1136L	INSERT	AJU1136L INSERT	-	4	Enquire
5	LR031505	SOUND DEADENER	LR031505 SOUND DEADENER RH, Sound Deadening / From: CA000001	-	1	Enquire
5	LR031506	SOUND DEADENER	LR031506 SOUND DEADENER LH, Sound Deadening / From: CA000001	-	1	Enquire
