Roof Trim (Station Wagon - 5 Door, 110" Wheelbase, Station Wagon - 3 Door, 90" Wheelbase) ((V)...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Roof Trim (Station Wagon - 5 Door, 110" Wheelbase, Station Wagon - 3 Door, 90" Wheelbase) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EDB000260LUH HEADLINING - ROOF Enquire To Order
EDF000190LUH HEADLINING - ROOF Enquire To Order
EDF000200LUH HEADLINING - ROOF Enquire To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EDB000240LUH HEADLINING - ROOF Enquire To Order
EDB501700LUH HEADLINING - ROOF Enquire To Order
LR033222 HEADLINING - ROOF Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EDB000220LUH HEADLINING - ROOF Enquire To Order
EDB000210LUH HEADLINING - ROOF Enquire To Order
EDB501720LUH HEADLINING - ROOF Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AWR4709LUH FINISHER Enquire To Order
EDV500520 EDGE PROTECTOR Enquire To Order
LR033231 EDGE PROTECTOR Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MWC9832LUH FASTENER Enquire To Order
MWC9832PMA FASTENER Enquire To Order
Photo Part No Description Price (each) Stock
MWC3137 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
MWC8916LOY FINISHER Enquire To Order
AWR3032LOY FINISHER Enquire To Order
MWC8917LOY FINISHER Enquire To Order
Photo Part No Description Price (each) Stock
AB610062 SCREW Enquire To Order
AB610062 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MUC1237 ADHESIVE TAPE Enquire To Order
Photo Part No Description Price (each) Stock
JPC5640LNF HANDLE - GRAB Enquire To Order
JPC5640LNF HANDLE - GRAB Enquire To Order
View All

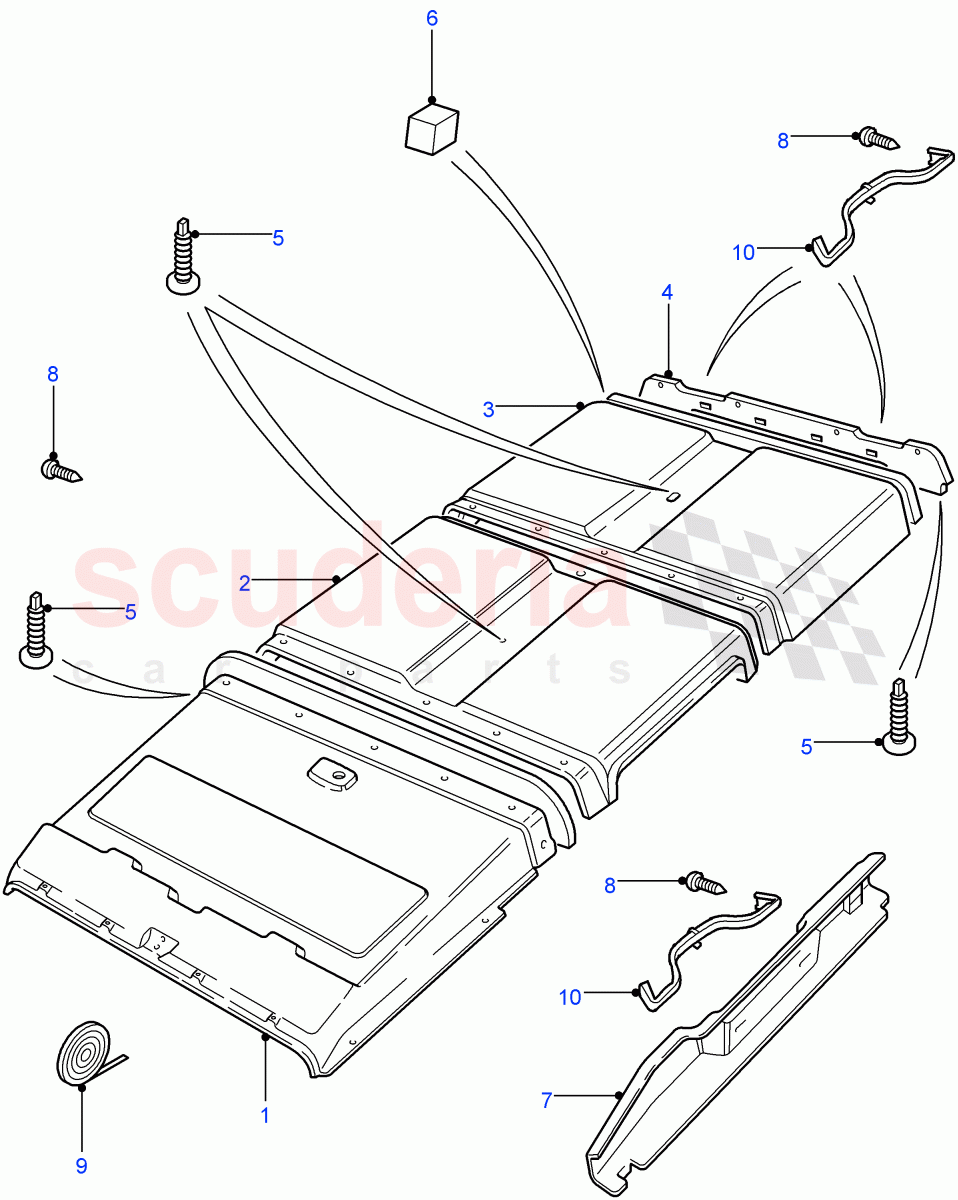

Roof Trim (Station Wagon - 5 Door, 110" Wheelbase, Station Wagon - 3 Door, 90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 EDB000260LUH
HEADLINING - ROOF
110" Wheelbase, Less Sun Roof / Front, Ripple Grey / To: 8A754603 		- 1 Enquire
1 EDF000190LUH
HEADLINING - ROOF
90" Wheelbase, With Tilt & Slide Sunroof / Front, Ripple Grey / To: 8A754603 		- 1 Enquire
1 EDF000200LUH
HEADLINING - ROOF
110" Wheelbase, With Tilt & Slide Sunroof / Front, Ripple Grey / To: 8A754603 		- 1 Enquire
1 EDB501650LUH
HEADLINING - ROOF
90" Wheelbase, Less Sun Roof / Front, Ripple Grey / To: BA888887 		- 1 Enquire
1 EDB501660LUH
HEADLINING - ROOF
110" Wheelbase, Less Sun Roof / Front, Ripple Grey / From: 8A754604 / To: BA888887 		- 1 Enquire
1 EDF500890LUH
HEADLINING - ROOF
90" Wheelbase, With Tilt & Slide Sunroof / Front, Ripple Grey / From: 8A754604 / To: BA888887 		- 1 Enquire
1 EDF500900LUH
HEADLINING - ROOF
110" Wheelbase, With Tilt & Slide Sunroof / Front, Ripple Grey / From: 8A754604 / To: BA888887 		- 1 Enquire
1 LR033204
HEADLINING - ROOF
90" Wheelbase, Less Sun Roof / Front, Ripple Grey / From: BA888888 		- 1 Enquire
1 LR033217
HEADLINING - ROOF
110" Wheelbase, Less Sun Roof / Front, Ripple Grey / From: BA888888 		- 1 Enquire
1 LR033220
HEADLINING - ROOF
90" Wheelbase, With Tilt & Slide Sunroof / Front, Ripple Grey / From: BA888888 		- 1 Enquire
1 LR033221
HEADLINING - ROOF
110" Wheelbase, With Tilt & Slide Sunroof / Front, Ripple Grey / From: BA888888 		- 1 Enquire
1 LR063673
HEADLINING - ROOF
90" Wheelbase, Ebony Headliner, With Tilt & Slide Sunroof / Front / To: FA471288 		- 1 Enquire
1 LR063674
HEADLINING - ROOF
90" Wheelbase, Ebony Headliner, Less Sun Roof / Front / From: FA000001 / To: FA471288 		- 1 Enquire
1 LR063675
HEADLINING - ROOF
110" Wheelbase, Ebony Headliner, With Tilt & Slide Sunroof / Front / From: FA000001 / To: FA471288 		- 1 Enquire
1 LR063676
HEADLINING - ROOF
110" Wheelbase, Ebony Headliner, Less Sun Roof / Front / From: FA000001 / To: FA471288 		- 1 Enquire
1 LR077716
HEADLINING - ROOF
90" Wheelbase, Ebony Headliner, With Tilt & Slide Sunroof / Front / From: FA471289 		- 1 Enquire
1 LR077717
HEADLINING - ROOF
90" Wheelbase, Ebony Headliner, Less Sun Roof / Front / From: FA471289 		- 1 Enquire
1 LR077718
HEADLINING - ROOF
110" Wheelbase, Ebony Headliner, With Tilt & Slide Sunroof / Front / From: FA471289 		- 1 Enquire
1 LR077719
HEADLINING - ROOF
110" Wheelbase, Ebony Headliner, Less Sun Roof / Front / From: FA471289 		- 1 Enquire
2 EDB000240LUH
HEADLINING - ROOF
110" Wheelbase / Intermediate, Ripple Grey / To: 8A754603 		- 1 Enquire
2 EDB501700LUH
HEADLINING - ROOF
110" Wheelbase / Intermediate, Ripple Grey / From: 8A754604 / To: BA888887 		- 1 Enquire
2 LR033222
HEADLINING - ROOF
110" Wheelbase / Intermediate, Ripple Grey / From: BA888888 		- 1 Enquire
2 LR063677
HEADLINING - ROOF
110" Wheelbase, Ebony Headliner / Intermediate / From: FA000001 		- 1 Enquire
3 EDB000220LUH
HEADLINING - ROOF
90" Wheelbase / Rear, Ripple Grey / To: 8A754603 		- 1 Enquire
3 EDB000210LUH
HEADLINING - ROOF
110" Wheelbase / Rear, Ripple Grey / To: 8A754603 		- 1 Enquire
3 EDB501720LUH
HEADLINING - ROOF
110" Wheelbase / Rear, Ripple Grey / From: 8A754604 / To: BA888887 		- 1 Enquire
3 EDB501710LUH
HEADLINING - ROOF
90" Wheelbase / Rear, Ripple Grey / From: 8A754604 / To: BA888887 		- 1 Enquire
3 LR033215
HEADLINING - ROOF
110" Wheelbase / Rear, Ripple Grey / From: BA888888 		- 1 Enquire
3 LR033216
HEADLINING - ROOF
90" Wheelbase / Rear, Ripple Grey / From: BA888888 		- 1 Enquire
3 LR063678
HEADLINING - ROOF
90" Wheelbase, Ebony Headliner / Rear / From: FA000001 		- 1 Enquire
3 LR063679
HEADLINING - ROOF
110" Wheelbase, Ebony Headliner / Rear / From: FA000001 		- 1 Enquire
4 AWR4709LUH
FINISHER
Rear, Ripple Grey / To: 8A754603 		- 1 Enquire
4 EDV500520
EDGE PROTECTOR
Rear, Ripple Grey / From: 8A754604 / To: BA888887 		- 1 Enquire
4 LR033231
EDGE PROTECTOR
Rear, Ripple Grey / From: BA888888 / To: DA444878 		- 1 Enquire
4 LR058103
FINISHER - ROOF
Rear, Ripple Grey / From: DA444879 / To: FA458439 		- 1 Enquire
4 LR063680
HEADLINING - ROOF
Ebony Headliner / Rear / From: FA000001 / To: FA458439 		- 1 Enquire
4 LR073364
FINISHER - ROOF
Ivory Headliner / Rear / From: FA458440 		- 1 Enquire
4 LR077736
HEADLINING - ROOF
Ebony Headliner / Rear / From: FA458440 		- 1 Enquire
5 MWC9832LUH
FASTENER
Light Grey 		- 30 Enquire
5 MWC9832PMA
FASTENER
Ebony Headliner / From: FA000001 		- - Enquire
6 MWC3137
SPACER
foam 		- 3 Enquire
7 MWC8916LOY
FINISHER
110" Wheelbase, Less Safeguard Anti-Theft System (Pats) / RH, Dark Granite 		- 1 Enquire
7 AWR3032LOY
FINISHER
110" Wheelbase, Perimeter / Volume Theft System / RH, Dark Granite 		- 1 Enquire
7 MWC8917LOY
FINISHER
110" Wheelbase / LH, Dark Granite 		- 1 Enquire
8 AB610062
SCREW
Station Wagon - 3 Door 		- 8 Enquire
8 AB610062
SCREW
Station Wagon - 5 Door 		- 16 Enquire
9 MUC1237
ADHESIVE TAPE
Cut To The Required Length 		- - Enquire
10 JPC5640LNF
HANDLE - GRAB
Station Wagon - 3 Door 		- 2 Enquire
10 JPC5640LNF
HANDLE - GRAB
Station Wagon - 5 Door 		- 4 Enquire
