Name: Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Electric Engine Battery-MHEV) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Electric Engine Battery-MHEV) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Electric Engine Battery-MHEV) ((V)...

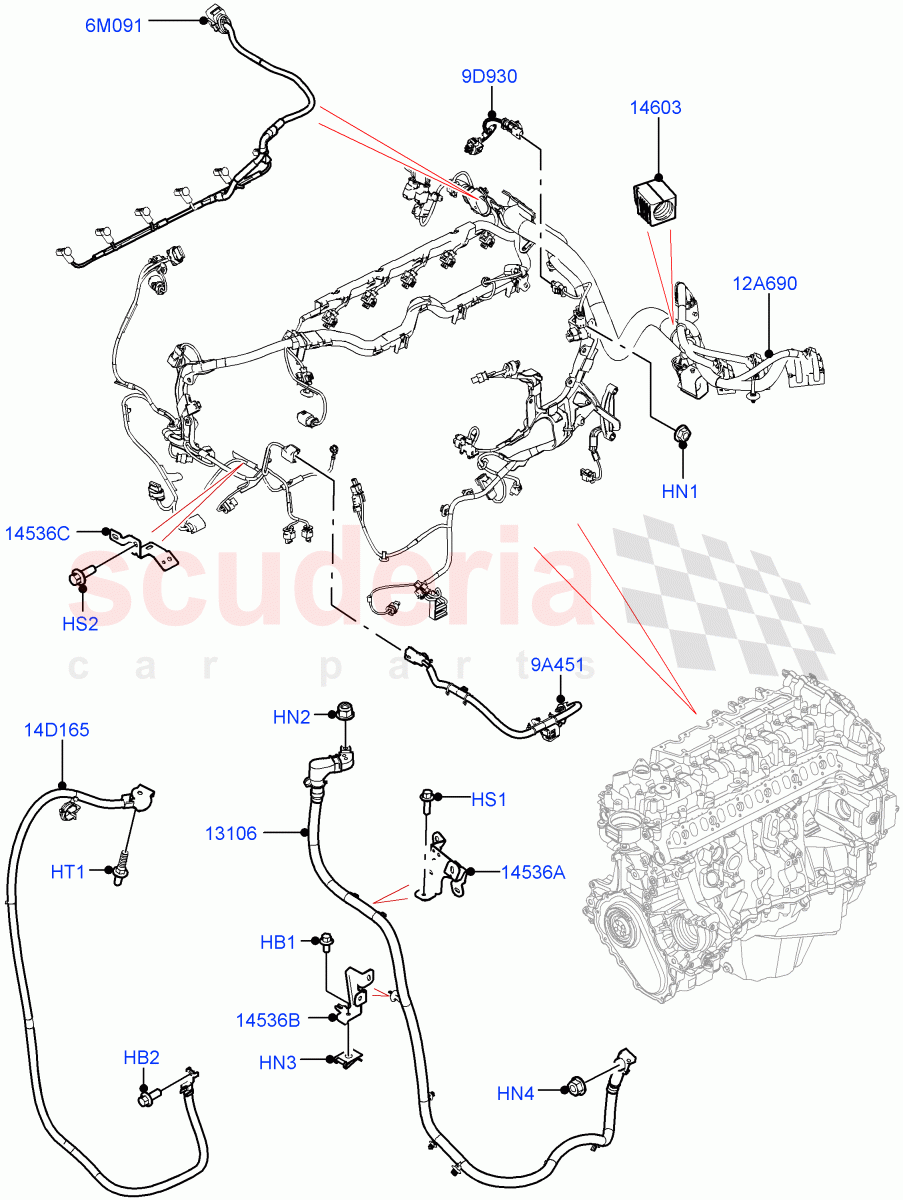

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126612	NUT - ADJUSTING	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR124564	SCREW	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123740	STUD	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149109	WIRING - ALTERNATOR	$120.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141820	PLUG - BLANKING	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125536	WIRE - GLOW PLUG	$102.08	To Order
	LR157219	WIRE - GLOW PLUG	$98.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149127	WIRING - AIR BAG	$27.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125612	WIRE - FUEL PRESSURE SENSOR	$84.74	To Order
	LR157235	WIRE - FUEL PRESSURE SENSOR	$71.34	To Order
	LR171955	WIRE	$83.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125613	WIRING - ENGINE	$1,160.59	To Order
	LR157228	WIRING - ENGINE	$1,005.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136767	BRACKET - WIRING	$18.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136775	BRACKET - WIRING	$15.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140118	BRACKET - WIRING	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149128	WIRE - ENGINE EARTH	$42.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: M2000001 IN STOCK	$0.50	1
HB2	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001 IN STOCK	$2.23	1
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: M2000001	$1.40	1
HN2	LR126612	NUT - ADJUSTING	LR126612 NUT - ADJUSTING M8 / From: M2000001	$0.69	1
HN3	LR027995	NUT IN STOCK	LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring / From: M2000001 IN STOCK	$0.97	1
HN4	LR122999	NUT - HEX.	LR122999 NUT - HEX. M8 / From: M2000001	$2.92	1
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$0.97	1
HS2	LR124564	SCREW	LR124564 SCREW Hexagonal Head, M8 X 20MM, Taptite / From: M2000001	$2.15	1
HT1	LR123740	STUD	LR123740 STUD M8 x 17 + M8 x 24 / From: M2000001	$4.88	1
6M091	LR125536	WIRE - GLOW PLUG	LR125536 WIRE - GLOW PLUG From: M2000001 / To: M2053834	$102.08	1
6M091	LR157219	WIRE - GLOW PLUG	LR157219 WIRE - GLOW PLUG From: M2053835	$98.69	1
9A451	LR149127	WIRING - AIR BAG	LR149127 WIRING - AIR BAG Belt Integrated Starter Generator, Link / From: M2000001	$27.63	1
9D930	LR125612	WIRE - FUEL PRESSURE SENSOR	LR125612 WIRE - FUEL PRESSURE SENSOR Link, Sensor - Fuel Rail Pressure / From: M2000001 / To: M2053834	$84.74	1
9D930	LR157235	WIRE - FUEL PRESSURE SENSOR	LR157235 WIRE - FUEL PRESSURE SENSOR Link, Sensor - Fuel Rail Pressure / From: M2053835 / To: N2102546	$71.34	1
9D930	LR171955	WIRE	LR171955 WIRE Link, Sensor - Fuel Rail Pressure / From: N2102547	$83.49	1
12A690	LR125613	WIRING - ENGINE	LR125613 WIRING - ENGINE From: M2000001 / To: M2053555	$1,160.59	1
12A690	LR157228	WIRING - ENGINE	LR157228 WIRING - ENGINE From: M2053556	$1,005.10	1
14D165	LR149128	WIRE - ENGINE EARTH	LR149128 WIRE - ENGINE EARTH Engine Earth / From: M2000001	$42.64	1
13106	LR149109	WIRING - ALTERNATOR	LR149109 WIRING - ALTERNATOR Starter Motor / From: M2000001	$120.09	1
14536A	LR136767	BRACKET - WIRING	LR136767 BRACKET - WIRING Top / From: M2000001	$18.86	1
14536B	LR136775	BRACKET - WIRING	LR136775 BRACKET - WIRING Bottom / From: M2000001	$15.71	1
14536C	LR140118	BRACKET - WIRING	LR140118 BRACKET - WIRING Engine Harness / From: M2000001	$9.60	1
14603	LR141820	PLUG - BLANKING	LR141820 PLUG - BLANKING Engine Harness / From: M2000001	$5.19	1
