Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Less Electric Engine Battery) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Less Electric Engine Battery) ((V)...

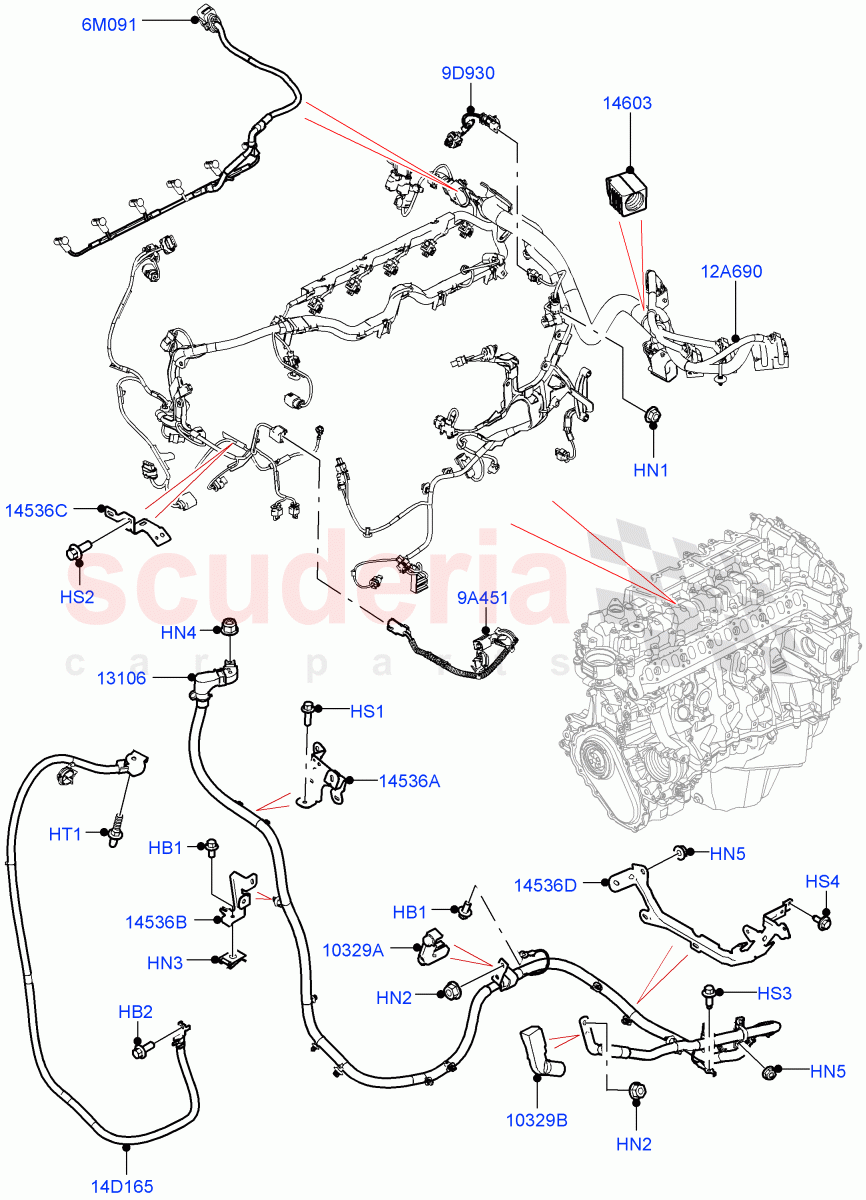

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126612	NUT - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124564	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500400	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123740	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149110	WIRING - ALTERNATOR	Enquire	To Order
	LR172159	WIRING - ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141820	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125536	WIRE - GLOW PLUG	Enquire	To Order
	LR157219	WIRE - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147071	WIRE - ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125612	WIRE - FUEL PRESSURE SENSOR	Enquire	To Order
	LR157235	WIRE - FUEL PRESSURE SENSOR	Enquire	To Order
	LR171955	WIRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143999	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144002	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125613	WIRING - ENGINE	Enquire	To Order
	LR157228	WIRING - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136767	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136775	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140118	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147021	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149128	WIRE - ENGINE EARTH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: M2000001	-	2	Enquire
HB2	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001	-	1	Enquire
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: M2000001	-	1	Enquire
HN2	LR122999	NUT - HEX.	LR122999 NUT - HEX. M8 / From: M2000001	-	2	Enquire
HN3	LR027995	NUT	LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring / From: M2000001	-	1	Enquire
HN4	LR126612	NUT - ADJUSTING	LR126612 NUT - ADJUSTING M8 / From: M2000001	-	1	Enquire
HN5	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: M2000001	-	4	Enquire
HS1	FS106206	SCREW	FS106206 SCREW Hexagonal Head, M6 X 20MM / From: M2000001	-	1	Enquire
HS2	LR124564	SCREW	LR124564 SCREW Hexagonal Head, M8 X 20MM, Taptite / From: M2000001	-	1	Enquire
HS3	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM / From: M2000001	-	1	Enquire
HS4	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: M2000001	-	1	Enquire
HT1	LR123740	STUD	LR123740 STUD M8 x 17 + M8 x 24 / From: M2000001	-	1	Enquire
6M091	LR125536	WIRE - GLOW PLUG	LR125536 WIRE - GLOW PLUG From: M2000001 / To: M2053834	-	1	Enquire
6M091	LR157219	WIRE - GLOW PLUG	LR157219 WIRE - GLOW PLUG From: M2053835	-	1	Enquire
9A451	LR147071	WIRE - ALTERNATOR	LR147071 WIRE - ALTERNATOR Alternator, Link / From: M2000001	-	1	Enquire
9D930	LR125612	WIRE - FUEL PRESSURE SENSOR	LR125612 WIRE - FUEL PRESSURE SENSOR Link, Sensor - Fuel Rail Pressure / From: M2000001 / To: M2053834	-	1	Enquire
9D930	LR157235	WIRE - FUEL PRESSURE SENSOR	LR157235 WIRE - FUEL PRESSURE SENSOR Link, Sensor - Fuel Rail Pressure / From: M2053835 / To: N2102546	-	1	Enquire
9D930	LR171955	WIRE	LR171955 WIRE Link, Sensor - Fuel Rail Pressure / From: N2102547	-	1	Enquire
12A690	LR125613	WIRING - ENGINE	LR125613 WIRING - ENGINE From: M2000001 / To: M2053555	-	1	Enquire
12A690	LR157228	WIRING - ENGINE	LR157228 WIRING - ENGINE From: M2053556	-	1	Enquire
14D165	LR149128	WIRE - ENGINE EARTH	LR149128 WIRE - ENGINE EARTH Engine Earth / From: M2000001	-	1	Enquire
10329A	LR143999	COVER	LR143999 COVER Starter Motor / From: M2000001	-	1	Enquire
10329B	LR144002	COVER	LR144002 COVER Alternator / From: M2000001	-	1	Enquire
13106	LR149110	WIRING - ALTERNATOR	LR149110 WIRING - ALTERNATOR Alternator, Starter Motor / From: M2000001 / To: N2999999	-	1	Enquire
13106	LR172159	WIRING - ALTERNATOR	LR172159 WIRING - ALTERNATOR Alternator, Starter Motor / From: P2000001	-	1	Enquire
14536A	LR136767	BRACKET - WIRING	LR136767 BRACKET - WIRING Top / From: M2000001	-	1	Enquire
14536B	LR136775	BRACKET - WIRING	LR136775 BRACKET - WIRING Middle / From: M2000001	-	1	Enquire
14536C	LR140118	BRACKET - WIRING	LR140118 BRACKET - WIRING Engine Harness / From: M2000001	-	1	Enquire
14536D	LR147021	BRACKET - WIRING	LR147021 BRACKET - WIRING Bottom / From: M2000001	-	1	Enquire
14603	LR141820	PLUG - BLANKING	LR141820 PLUG - BLANKING Engine Harness / From: M2000001	-	1	Enquire
