Electrical Wiring - Engine And Dash (Main Harness)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Electrical Wiring - Engine And Dash (Main Harness)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR131910 BOLT $1.11 To Order
Photo Part No Description Price (each) Stock
LR087365 BOLT $0.88 To Order
LR087365 BOLT $0.88 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
LR136795 HARNESS - MEGA $7,043.03 To Order
LR146698 HARNESS - MEGA $8,157.29 To Order
LR159279 HARNESS - MAIN $7,043.03 To Order
Photo Part No Description Price (each) Stock
LR105641 BRACKET - WIRING $30.50 To Order
Photo Part No Description Price (each) Stock
LR136768 BRACKET - WIRING $37.71 To Order
Photo Part No Description Price (each) Stock
LR136769 BRACKET - WIRING $37.71 To Order
Photo Part No Description Price (each) Stock
LR136770 BRACKET - WIRING $15.71 To Order
Photo Part No Description Price (each) Stock
LR136772 BRACKET - WIRING $15.71 To Order
Photo Part No Description Price (each) Stock
LR136257 BRACKET - WIRING $8.52 To Order
Photo Part No Description Price (each) Stock
LR136754 PLUG - BLANKING $2.98 To Order
Photo Part No Description Price (each) Stock
LR136275 PLUG - BLANKING $26.42 To Order
LR172313 Grommet $25.26 To Order
Photo Part No Description Price (each) Stock
LR041086 GROMMET - WIRING $7.06 To Order
Photo Part No Description Price (each) Stock
LR136753 PLUG - BLANKING $2.53 To Order
Photo Part No Description Price (each) Stock
LR138365 PLUG - BLANKING $7.97 To Order
Photo Part No Description Price (each) Stock
LR130630 GROMMET - WIRING $17.63 To Order
View All

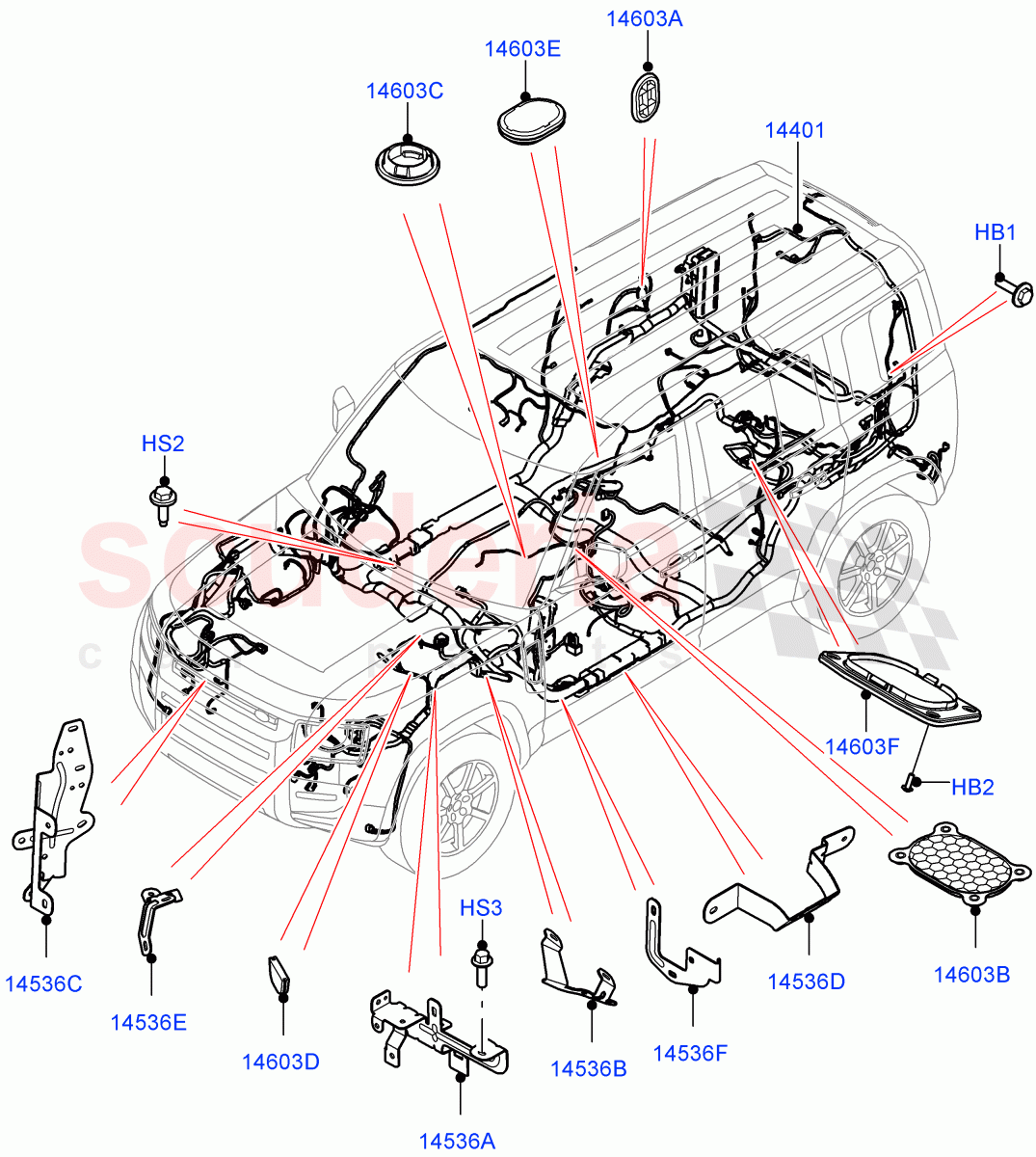

Electrical Wiring - Engine And Dash (Main Harness) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR131910
BOLT
M6 X 25MM 		$1.11 2
HB2 LR087365
BOLT
2.0L I4 High DOHC AJ200 Petrol / Grommet, M6 x 18MM / To: L2999999 		$0.88 4
HB2 LR087365
BOLT
Grommet, M6 x 18MM / From: M2000001 		$0.88 4
HS2 RYG501590
SCREW
Hexagonal Head, M6 X 20MM 		$0.96 1
HS3 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.97 1
14401 LR136795
HARNESS - MEGA
KSK harness, Requires VIN To Order / To: L2999999 		$7,043.03 1
14401 LR146698
HARNESS - MEGA
KSK harness, Requires VIN To Order / From: M2000001 / To: N2999999 		$8,157.29 1
14401 LR159279
HARNESS - MAIN
KSK harness, Requires VIN To Order / From: P2000001 		$7,043.03 1
14536A LR105641
BRACKET - WIRING
2.0L AJ200P Hi PHEV / BISG Inline Bracket 		$30.50 1
14536B LR136768
BRACKET - WIRING
PCM Bracket 		$37.71 1
14536C LR136769
BRACKET - WIRING
EPAS Bracket 		$37.71 1
14536D LR136770
BRACKET - WIRING
2.0L I4 High DOHC AJ200 Petrol / Transmission To Cabin Inline Bracket 		$15.71 1
14536E LR136772
BRACKET - WIRING
With Continuous Variable Damping / Active Dampage Bracket 		$15.71 1
14536F LR136257
BRACKET - WIRING
LHD / ABS Bracket 		$8.52 1
14603A LR136754
PLUG - BLANKING
2.0L I4 DSL HIGH DOHC AJ200, Less Fuel Filler Flap Lock, Less Trailer Towing Hitch, With Standard Duty Coil Spring Susp / Rear, Wiring Blanking Grommet 		$2.98 1
14603B LR136275
PLUG - BLANKING
2.0L I4 High DOHC AJ200 Petrol, Long Wheelbase / 12V DC/DC Blanking Grommet / To: N2107139 		$26.42 1
14603B LR172313
Grommet
5.0 Petrol AJ133 DOHC CDA, Standard Wheelbase / 12V DC/DC Blanking Grommet / From: N2107140 		$25.26 1
14603C LR041086
GROMMET - WIRING
Electric Engine Battery-MHEV / ARC Blanking Grommet 		$7.06 1
14603D LR136753
PLUG - BLANKING
3.0L AJ20P6 Petrol High, Short Wheelbase / Front, Wiring Blanking Grommet 		$2.53 1
14603E LR138365
PLUG - BLANKING
2.0L I4 High DOHC AJ200 Petrol, Standard Wheelbase / Middle 		$7.97 1
14603F LR130630
GROMMET - WIRING
2.0L I4 High DOHC AJ200 Petrol, Standard Wheelbase 		$17.63 1
