Rear Door Glass And Window Controls (Standard Wheelbase) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

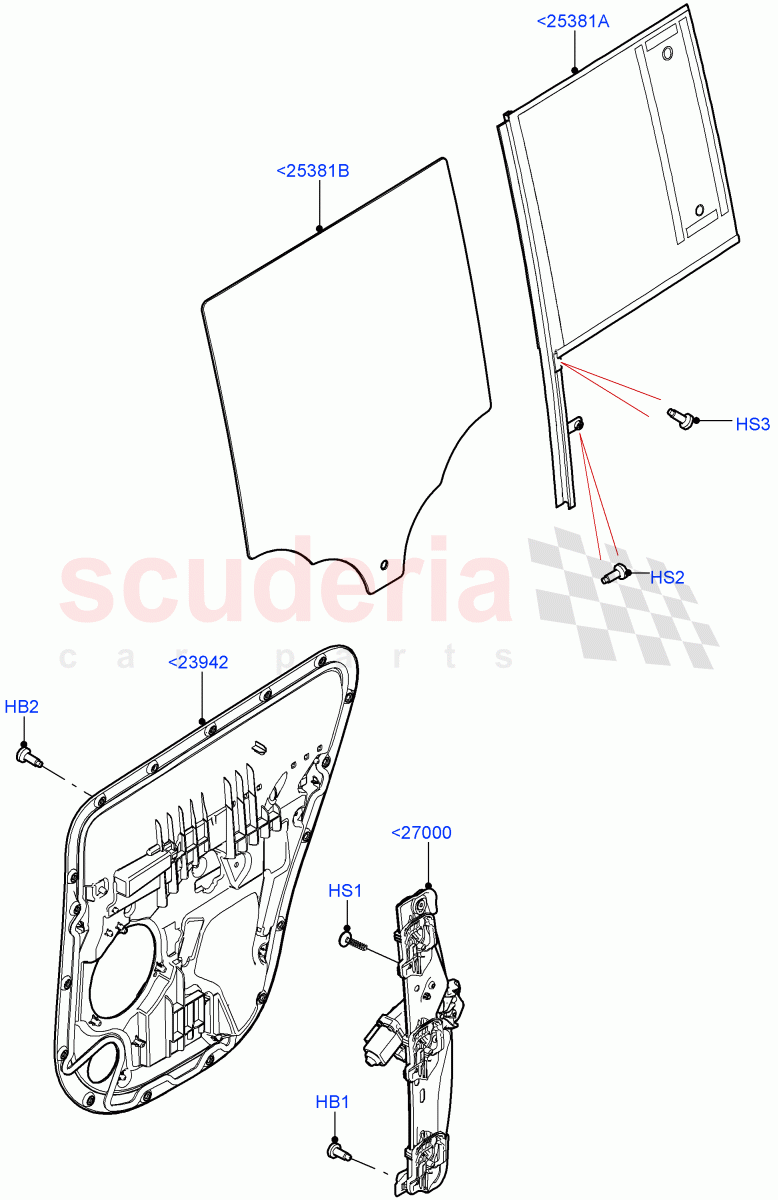

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Rear Door Glass And Window Controls (Standard Wheelbase)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132033	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049323	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132827	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132067	PANEL - DOOR TRIM	Enquire	To Order
	LR132069	PANEL - DOOR TRIM	Enquire	To Order
	LR132064	PANEL - DOOR TRIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132062	REGULATOR - WINDOW	Enquire	To Order
	LR132061	REGULATOR - WINDOW	Enquire	To Order
	LR164074	REGULATOR - WINDOW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132076	GLASS - DOOR REAR WINDOW - FIXED	Enquire	To Order
	LR146293	GLASS - DOOR REAR WINDOW - FIXED	Enquire	To Order
	LR132080	GLASS - DOOR REAR WINDOW - FIXED	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132072	GLASS - REAR DOOR	Enquire	To Order
	LR132073	GLASS - REAR DOOR	Enquire	To Order
	LR132075	GLASS - REAR DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<23942	LR132067	PANEL - DOOR TRIM	LR132067 PANEL - DOOR TRIM Interior Environment Colour - Lunar / LH / To: L2023521	-	1	Enquire
<23942	LR132069	PANEL - DOOR TRIM	LR132069 PANEL - DOOR TRIM Internal Environment Colour - Ebony / LH / To: L2023521	-	1	Enquire
<23942	LR132064	PANEL - DOOR TRIM	LR132064 PANEL - DOOR TRIM Interior Environment Colour - Lunar / RH / To: L2023521	-	1	Enquire
<23942	LR132066	PANEL - DOOR TRIM	LR132066 PANEL - DOOR TRIM Internal Environment Colour - Ebony / RH / To: L2023521	-	1	Enquire
<23942	LR146734	PANEL - DOOR TRIM	LR146734 PANEL - DOOR TRIM Internal Environment Colour - Ebony / RH / From: L2023522	-	1	Enquire
<23942	LR146736	PANEL - DOOR TRIM	LR146736 PANEL - DOOR TRIM Internal Environment Colour - Ebony / LH / From: L2023522	-	1	Enquire
<23942	LR146735	PANEL - DOOR TRIM	LR146735 PANEL - DOOR TRIM Interior Environment Colour - Lunar / LH / From: L2023522	-	1	Enquire
<23942	LR146733	PANEL - DOOR TRIM	LR146733 PANEL - DOOR TRIM Interior Environment Colour - Lunar / RH / From: L2023522	-	1	Enquire
<25381A	LR132076	GLASS - DOOR REAR WINDOW - FIXED	LR132076 GLASS - DOOR REAR WINDOW - FIXED Less Privacy Glass / RH / To: L2014242	-	1	Enquire
<25381A	LR146293	GLASS - DOOR REAR WINDOW - FIXED	LR146293 GLASS - DOOR REAR WINDOW - FIXED Privacy Glass / RH / To: L2014242	-	1	Enquire
<25381A	LR132080	GLASS - DOOR REAR WINDOW - FIXED	LR132080 GLASS - DOOR REAR WINDOW - FIXED Less Privacy Glass / LH / To: L2014242	-	1	Enquire
<25381A	LR146291	GLASS - DOOR REAR WINDOW - FIXED	LR146291 GLASS - DOOR REAR WINDOW - FIXED Privacy Glass / LH / To: L2014242	-	1	Enquire
<25381A	LR146291	GLASS - DOOR REAR WINDOW - FIXED	LR146291 GLASS - DOOR REAR WINDOW - FIXED Privacy Glass, Rear Quarter Glass - Small / LH / From: L2014243	-	1	Enquire
<25381A	LR146293	GLASS - DOOR REAR WINDOW - FIXED	LR146293 GLASS - DOOR REAR WINDOW - FIXED Privacy Glass, Rear Quarter Glass - Small / RH / From: L2014243	-	1	Enquire
<25381A	LR146294	GLASS - DOOR REAR WINDOW - FIXED	LR146294 GLASS - DOOR REAR WINDOW - FIXED Less Privacy Glass, Rear Quarter Glass - Small / RH / From: L2014243	-	1	Enquire
<25381A	LR146292	GLASS - DOOR REAR WINDOW - FIXED	LR146292 GLASS - DOOR REAR WINDOW - FIXED Less Privacy Glass, Rear Quarter Glass - Small / LH / From: L2014243	-	1	Enquire
<25381A	LR143427	GLASS - DOOR REAR WINDOW - FIXED	LR143427 GLASS - DOOR REAR WINDOW - FIXED Rear Quarter Vent Panel - Fixed / RH / From: M2000001	-	1	Enquire
<25381A	LR143428	GLASS - DOOR REAR WINDOW - FIXED	LR143428 GLASS - DOOR REAR WINDOW - FIXED Rear Quarter Vent Panel - Fixed / LH / From: M2000001	-	1	Enquire
<25381B	LR132072	GLASS - REAR DOOR	LR132072 GLASS - REAR DOOR Less Privacy Glass / RH	-	1	Enquire
<25381B	LR132073	GLASS - REAR DOOR	LR132073 GLASS - REAR DOOR Privacy Glass / RH	-	1	Enquire
<25381B	LR132075	GLASS - REAR DOOR	LR132075 GLASS - REAR DOOR Less Privacy Glass / LH	-	1	Enquire
<25381B	LR132074	GLASS - REAR DOOR	LR132074 GLASS - REAR DOOR Privacy Glass / LH	-	1	Enquire
<27000	LR132062	REGULATOR - WINDOW	LR132062 REGULATOR - WINDOW LH / To: N2073240	-	1	Enquire
<27000	LR132061	REGULATOR - WINDOW	LR132061 REGULATOR - WINDOW RH / To: N2073240	-	1	Enquire
<27000	LR164074	REGULATOR - WINDOW	LR164074 REGULATOR - WINDOW RH / From: N2073241	-	1	Enquire
<27000	LR164073	REGULATOR - WINDOW	LR164073 REGULATOR - WINDOW LH / From: N2073241	-	1	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx	-	2	Enquire
HB2	LR132033	BOLT	LR132033 BOLT M6 X 14MM	-	34	Enquire
HS1	LR049323	SCREW	LR049323 SCREW M5 x 22MM	-	2	Enquire
HS2	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM	-	2	Enquire
HS3	LR132827	SCREW	LR132827 SCREW 4 x 10MM	-	8	Enquire
