Front Door Glass & Window Controls of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Front Door Glass & Window Controls

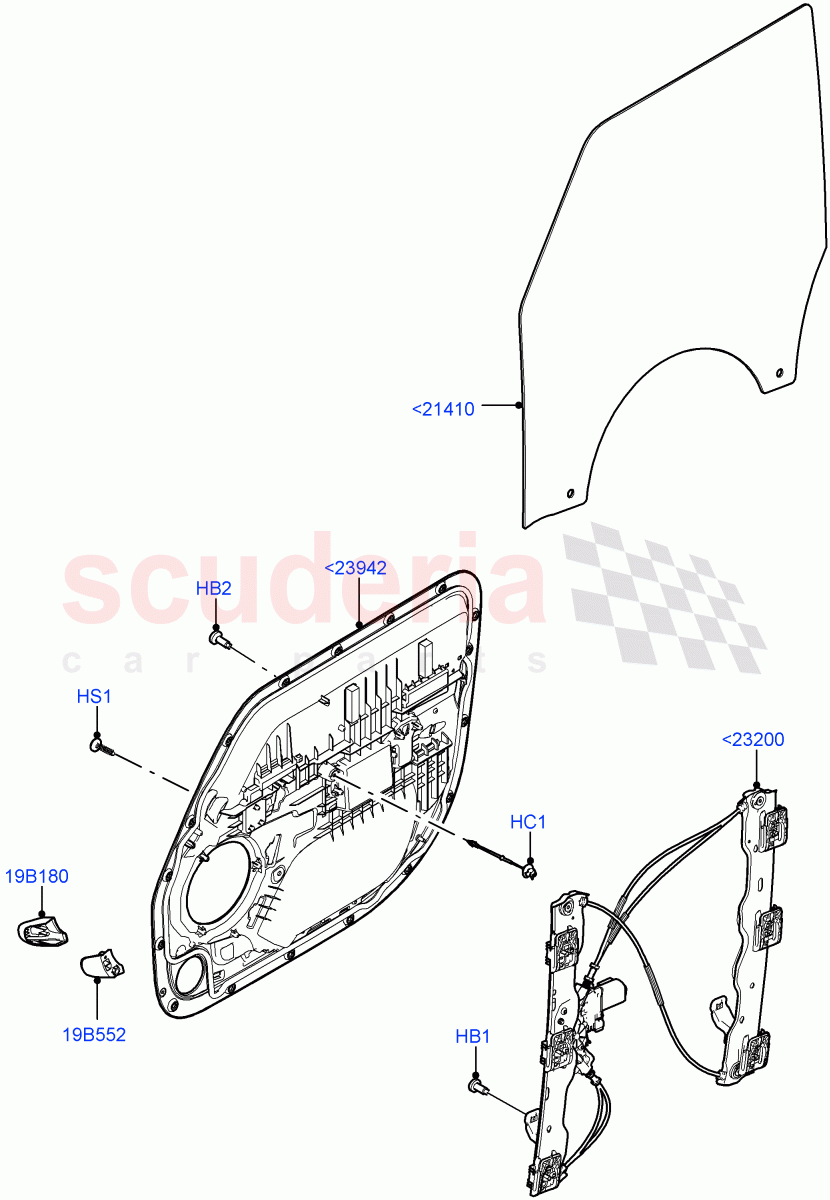

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR132033	BOLT	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028083	CLIP - CABLE	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049323	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131676	GLASS - DOOR DROP	$136.05	To Order
	LR131677	GLASS - DOOR DROP	$136.05	To Order
	LR131679	GLASS - DOOR DROP	$142.36	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132046	REGULATOR - WINDOW	$348.96	To Order
	LR132049	REGULATOR - WINDOW	$340.94	To Order
	LR132047	REGULATOR - WINDOW	$348.96	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132051	PANEL - DOOR TRIM	$185.95	To Order
	LR132052	PANEL - DOOR TRIM	$193.42	To Order
	LR132053	PANEL - DOOR TRIM	$176.52	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR138466	COVER - HOOD	$17.29	To Order
	LR138467	COVER - HOOD	$18.38	To Order
	LR138469	COVER - HOOD	$18.38	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR138462	BASE - HOOD RELEASE STOPPER	$18.38	To Order
	LR138463	BASE - HOOD RELEASE STOPPER	$17.65	To Order
	LR138464	BASE - HOOD RELEASE STOPPER	$18.38	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<21410	LR131676	GLASS - DOOR DROP	LR131676 GLASS - DOOR DROP Standard Wheelbase / RH	$136.05	1
<21410	LR131677	GLASS - DOOR DROP	LR131677 GLASS - DOOR DROP Standard Wheelbase / LH	$136.05	1
<21410	LR131679	GLASS - DOOR DROP	LR131679 GLASS - DOOR DROP Short Wheelbase / RH	$142.36	1
<21410	LR131678	GLASS - DOOR DROP	LR131678 GLASS - DOOR DROP Short Wheelbase / LH	$142.36	1
<23200	LR132046	REGULATOR - WINDOW	LR132046 REGULATOR - WINDOW Standard Wheelbase / RH / To: N2073240	$348.96	1
<23200	LR132049	REGULATOR - WINDOW	LR132049 REGULATOR - WINDOW Standard Wheelbase / LH / To: N2073240	$340.94	1
<23200	LR132047	REGULATOR - WINDOW	LR132047 REGULATOR - WINDOW Short Wheelbase / RH / To: M2024314	$348.96	1
<23200	LR132048	REGULATOR - WINDOW	LR132048 REGULATOR - WINDOW Short Wheelbase / LH / To: M2024314	$370.95	1
<23200	LR146465	REGULATOR - WINDOW	LR146465 REGULATOR - WINDOW Short Wheelbase / LH / From: M2024315	$340.94	1
<23200	LR146466	REGULATOR - WINDOW	LR146466 REGULATOR - WINDOW Short Wheelbase / RH / From: M2024315	$370.95	1
<23200	LR164085	REGULATOR - WINDOW	LR164085 REGULATOR - WINDOW Standard Wheelbase / RH / From: N2073241	$370.95	1
<23200	LR164084	REGULATOR - WINDOW	LR164084 REGULATOR - WINDOW Standard Wheelbase / LH / From: N2073241	$370.95	1
<23942	LR132051	PANEL - DOOR TRIM	LR132051 PANEL - DOOR TRIM Interior Environment Colour - Lunar, RHD / RH / To: L2002348	$185.95	1
<23942	LR132052	PANEL - DOOR TRIM	LR132052 PANEL - DOOR TRIM Internal Environment Colour - Ebony, RHD / RH / To: L2002348	$193.42	1
<23942	LR132053	PANEL - DOOR TRIM	LR132053 PANEL - DOOR TRIM Interior Environment Colour - Lunar, RHD / LH / To: L2002348	$176.52	1
<23942	LR132054	PANEL - DOOR TRIM	LR132054 PANEL - DOOR TRIM Internal Environment Colour - Ebony, RHD / LH / To: L2002348	$182.34	1
<23942	LR132056	PANEL - DOOR TRIM	LR132056 PANEL - DOOR TRIM Interior Environment Colour - Lunar, LHD / RH / To: L2002348	$177.78	1
<23942	LR132057	PANEL - DOOR TRIM	LR132057 PANEL - DOOR TRIM Internal Environment Colour - Ebony, LHD / RH / To: L2002348	$193.42	1
<23942	LR132058	PANEL - DOOR TRIM	LR132058 PANEL - DOOR TRIM Interior Environment Colour - Lunar, LHD / LH / To: L2002348	$185.95	1
<23942	LR132059	PANEL - DOOR TRIM	LR132059 PANEL - DOOR TRIM Internal Environment Colour - Ebony, LHD / LH / To: L2002348	$185.95	1
<23942	LR139106	PANEL - DOOR TRIM	LR139106 PANEL - DOOR TRIM Interior Environment Colour - Lunar, RHD / RH / From: L2002349	$193.42	1
<23942	LR139108	PANEL - DOOR TRIM	LR139108 PANEL - DOOR TRIM Internal Environment Colour - Ebony, RHD / RH / From: L2002349	$193.42	1
<23942	LR139109	PANEL - DOOR TRIM	LR139109 PANEL - DOOR TRIM Interior Environment Colour - Lunar, LHD / RH / From: L2002349	$193.42	1
<23942	LR139110	PANEL - DOOR TRIM	LR139110 PANEL - DOOR TRIM Internal Environment Colour - Ebony, LHD / RH / From: L2002349	$193.42	1
<23942	LR139111	PANEL - DOOR TRIM	LR139111 PANEL - DOOR TRIM Interior Environment Colour - Lunar, RHD / LH / From: L2002349	$182.34	1
<23942	LR139112	PANEL - DOOR TRIM	LR139112 PANEL - DOOR TRIM Internal Environment Colour - Ebony, RHD / LH / From: L2002349	$166.16	1
<23942	LR139113	PANEL - DOOR TRIM	LR139113 PANEL - DOOR TRIM Interior Environment Colour - Lunar, LHD / LH / From: L2002349	$193.42	1
<23942	LR139114	PANEL - DOOR TRIM	LR139114 PANEL - DOOR TRIM Internal Environment Colour - Ebony, LHD / LH / From: L2002349	$193.42	1
HB1	XYG500160	BOLT IN STOCK	XYG500160 BOLT M6 x 12MM, Torx IN STOCK	$0.88	4
HB2	LR132033	BOLT	LR132033 BOLT M6 X 14MM	$0.85	34
HC1	LR028083	CLIP - CABLE	LR028083 CLIP - CABLE Cable Tie, Clip 6 X 6.5 X 1.9 - 2.1	$0.70	2
HS1	LR049323	SCREW	LR049323 SCREW M5 x 22MM	$1.01	2
19B180	LR138466	COVER - HOOD	LR138466 COVER - HOOD Interior Environment Colour - Lunar, RHD	$17.29	1
19B180	LR138467	COVER - HOOD	LR138467 COVER - HOOD Internal Environment Colour - Ebony, RHD	$18.38	1
19B180	LR138469	COVER - HOOD	LR138469 COVER - HOOD Interior Environment Colour - Lunar, LHD	$18.38	1
19B180	LR138470	COVER - HOOD	LR138470 COVER - HOOD Internal Environment Colour - Ebony, LHD	$18.38	1
19B552	LR138462	BASE - HOOD RELEASE STOPPER	LR138462 BASE - HOOD RELEASE STOPPER Interior Environment Colour - Lunar, RHD	$18.38	1
19B552	LR138463	BASE - HOOD RELEASE STOPPER	LR138463 BASE - HOOD RELEASE STOPPER Internal Environment Colour - Ebony, RHD	$17.65	1
19B552	LR138464	BASE - HOOD RELEASE STOPPER	LR138464 BASE - HOOD RELEASE STOPPER Interior Environment Colour - Lunar, LHD	$18.38	1
19B552	LR138465	BASE - HOOD RELEASE STOPPER	LR138465 BASE - HOOD RELEASE STOPPER Internal Environment Colour - Ebony, LHD	$18.38	1
