Front Floor - Floor Side of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Front Floor - Floor Side

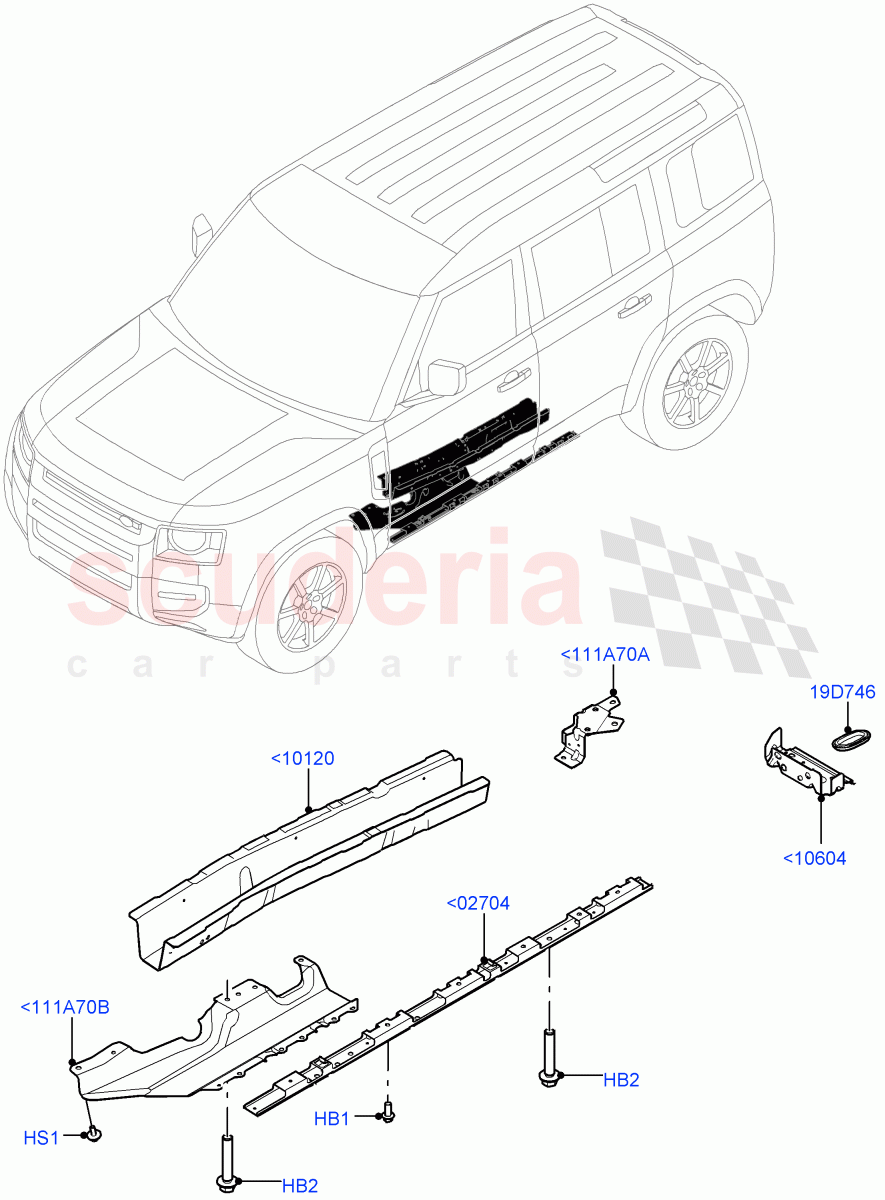

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139566	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000095	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133224	PANEL - BODY SIDE - REAR	Enquire	To Order
	LR133226	PANEL - BODY SIDE - REAR	Enquire	To Order
	LR133227	PANEL - BODY SIDE - REAR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131025	Member - Floor Side	Enquire	To Order
	LR131024	Member - Floor Side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136964	REINFORCEMENT - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063969	COVERING - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137707	REINFORCEMENT - REAR SEAT SUPPORT	Enquire	To Order
	LR137708	REINFORCEMENT - REAR SEAT SUPPORT	Enquire	To Order
	LR143323	REINFORCEMENT - REAR SEAT SUPPORT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131698	REINFORCEMENT - FLOOR	Enquire	To Order
	LR131699	REINFORCEMENT - FLOOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<111A70A	LR137707	REINFORCEMENT - REAR SEAT SUPPORT	LR137707 REINFORCEMENT - REAR SEAT SUPPORT Less 3rd Row Rear Seat / RH / To: L2014133	-	1	Enquire
<111A70A	LR137708	REINFORCEMENT - REAR SEAT SUPPORT	LR137708 REINFORCEMENT - REAR SEAT SUPPORT Less 3rd Row Rear Seat / LH / To: L2014133	-	1	Enquire
<111A70A	LR143323	REINFORCEMENT - REAR SEAT SUPPORT	LR143323 REINFORCEMENT - REAR SEAT SUPPORT Less 3rd Row Rear Seat / RH / From: L2014134	-	1	Enquire
<111A70A	LR143324	REINFORCEMENT - REAR SEAT SUPPORT	LR143324 REINFORCEMENT - REAR SEAT SUPPORT Less 3rd Row Rear Seat / LH / From: L2014134	-	1	Enquire
<111A70B	LR131698	REINFORCEMENT - FLOOR	LR131698 REINFORCEMENT - FLOOR With Head Impact Crash Criteria / RH	-	1	Enquire
<111A70B	LR131699	REINFORCEMENT - FLOOR	LR131699 REINFORCEMENT - FLOOR With Head Impact Crash Criteria / LH	-	1	Enquire
<02704	LR133224	PANEL - BODY SIDE - REAR	LR133224 PANEL - BODY SIDE - REAR Standard Wheelbase / RH / To: L2017886	-	1	Enquire
<02704	LR133226	PANEL - BODY SIDE - REAR	LR133226 PANEL - BODY SIDE - REAR Standard Wheelbase / LH / To: L2017886	-	1	Enquire
<02704	LR133227	PANEL - BODY SIDE - REAR	LR133227 PANEL - BODY SIDE - REAR Short Wheelbase / LH	-	1	Enquire
<02704	LR133225	PANEL - BODY SIDE - REAR	LR133225 PANEL - BODY SIDE - REAR Short Wheelbase / RH	-	1	Enquire
<02704	LR143202	PANEL - BODY SIDE - REAR	LR143202 PANEL - BODY SIDE - REAR Standard Wheelbase / LH / From: L2017887	-	1	Enquire
<02704	LR143201	PANEL - BODY SIDE - REAR	LR143201 PANEL - BODY SIDE - REAR Standard Wheelbase / RH / From: L2017887	-	1	Enquire
<10120	LR131025	Member - Floor Side	LR131025 Member - Floor Side Standard Wheelbase / LH, Category A	-	1	Enquire
<10120	LR131024	Member - Floor Side	LR131024 Member - Floor Side Standard Wheelbase / RH, Category A	-	1	Enquire
<10604	LR136964	REINFORCEMENT - FLOOR	LR136964 REINFORCEMENT - FLOOR Category A, Left Side	-	1	Enquire
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM, Panel	-	12	Enquire
HB2	LR139566	BOLT	LR139566 BOLT M10 x 55MM	-	21	Enquire
HS1	LR000095	SCREW AND WASHER	LR000095 SCREW AND WASHER M6 X 16 HEX	-	1	Enquire
19D746	LR063969	COVERING - PROTECTIVE	LR063969 COVERING - PROTECTIVE Electric Engine Battery-MHEV	-	1	Enquire
