Name: Fuel Tank & Related Parts (Nitra Plant Build) (2.0L AJ200P Hi PHEV)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (Nitra Plant Build) (2.0L AJ200P Hi PHEV) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (Nitra Plant Build) (2.0L AJ200P Hi PHEV)

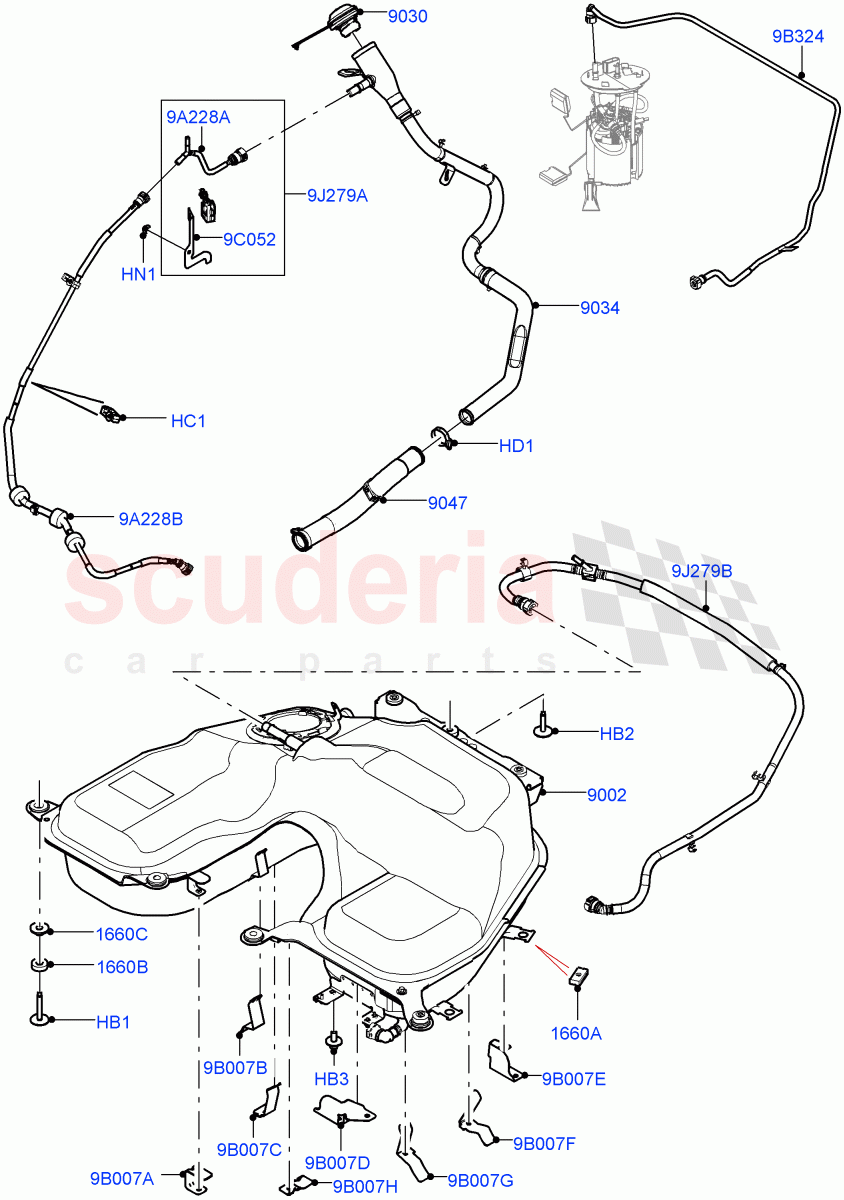

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR146894	BOLT	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093364	BOLT	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146895	BOLT	$3.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$2.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR146165	TANK - FUEL	$2,253.29	To Order

Photo	Part No	Description	Price (each)	Stock
	202123475	CAP - FUEL TANK FILLER	$38.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143377	PIPE - FUEL FILLER	$217.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128362	HOSE - FILLER PIPE	$93.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106358	SPACER - STRIKER	$7.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106359	SPACER - STRIKER	$7.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146163	SPACER - STRIKER	$11.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146167	TUBE - FUEL	$107.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132794	BRACKET	$20.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133245	HOSE - FUEL	$42.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146960	HOSE - FUEL	$42.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160060	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160061	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160063	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160066	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160065	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160064	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160062	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160067	SHIELD	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132750	TUBE - VENTILATION	$108.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146166	TUBE - VENTILATION	$136.31	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR146894	BOLT	LR146894 BOLT Fuel Tank, M10 x 70MM	$6.12	6
HB2	LR093364	BOLT	LR093364 BOLT Hexagonal Head, M10 X 50MM	$2.69	1
HB3	LR146895	BOLT	LR146895 BOLT Bracket, M8 X 14	$3.58	1
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic, Vapour Line	$4.23	2
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9	$5.85	2
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer IN STOCK	$2.97	1
9A228A	LR133245	HOSE - FUEL	LR133245 HOSE - FUEL Upper	$42.69	1
9A228B	LR146960	HOSE - FUEL	LR146960 HOSE - FUEL Lower	$42.69	1
9B007A	LR160060	SHIELD	LR160060 SHIELD RH, Front	$155.69	1
9B007B	LR160061	SHIELD	LR160061 SHIELD RH, Middle	$155.69	1
9B007C	LR160063	SHIELD	LR160063 SHIELD RH, Middle	$155.69	1
9B007D	LR160066	SHIELD	LR160066 SHIELD RH, Rear	$155.69	1
9B007E	LR160065	SHIELD	LR160065 SHIELD LH, Rear	$155.69	1
9B007F	LR160064	SHIELD	LR160064 SHIELD LH, Middle	$155.69	1
9B007G	LR160062	SHIELD	LR160062 SHIELD LH, Middle	$155.69	1
9B007H	LR160067	SHIELD	LR160067 SHIELD LH, Front	$155.69	1
9B324	LR146167	TUBE - FUEL	LR146167 TUBE - FUEL Feed	$107.59	1
9C052	LR132794	BRACKET	LR132794 BRACKET Bracket	$20.94	1
9J279A	LR132750	TUBE - VENTILATION	LR132750 TUBE - VENTILATION Assembly, With Sensor	$108.84	1
9J279B	LR146166	TUBE - VENTILATION	LR146166 TUBE - VENTILATION Top, Vapour Line	$136.31	1
1660A	LR106358	SPACER - STRIKER	LR106358 SPACER - STRIKER Rectangular Shape	$7.90	4
1660B	LR106359	SPACER - STRIKER	LR106359 SPACER - STRIKER Lower	$7.69	4
1660C	LR146163	SPACER - STRIKER	LR146163 SPACER - STRIKER Upper	$11.85	4
9002	LR146165	TANK - FUEL	LR146165 TANK - FUEL	$2,253.29	1
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER	$38.99	1
9034	LR143377	PIPE - FUEL FILLER	LR143377 PIPE - FUEL FILLER Upper	$217.12	1
9047	LR128362	HOSE - FILLER PIPE	LR128362 HOSE - FILLER PIPE	$93.57	1

Fuel Tank & Related Parts (Nitra Plant Build) (2.0L Aj200P Hi Phev)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (Nitra Plant Build) (2.0L AJ200P Hi PHEV)
