Fuel Lines (Nitra Plant Build) (2.0L Aj200P Hi Phev)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Nitra Plant Build) (2.0L AJ200P Hi PHEV)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.01 To Order
Photo Part No Description Price (each) Stock
LR148191 CLIP - HOSE $3.54 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
LR128402 MANIFOLD - FUEL SUPPLY $109.81 To Order
Photo Part No Description Price (each) Stock
LR149361 RETAINER - TUBE $3.61 To Order
Photo Part No Description Price (each) Stock
LR132670 PIPE - FUEL $153.76 To Order
Photo Part No Description Price (each) Stock
LR132672 TUBE - FUEL SUPPLY $261.67 To Order
LR144566 TUBE - FUEL SUPPLY $261.67 To Order
LR149359 TUBE - FUEL SUPPLY $261.67 To Order
View All

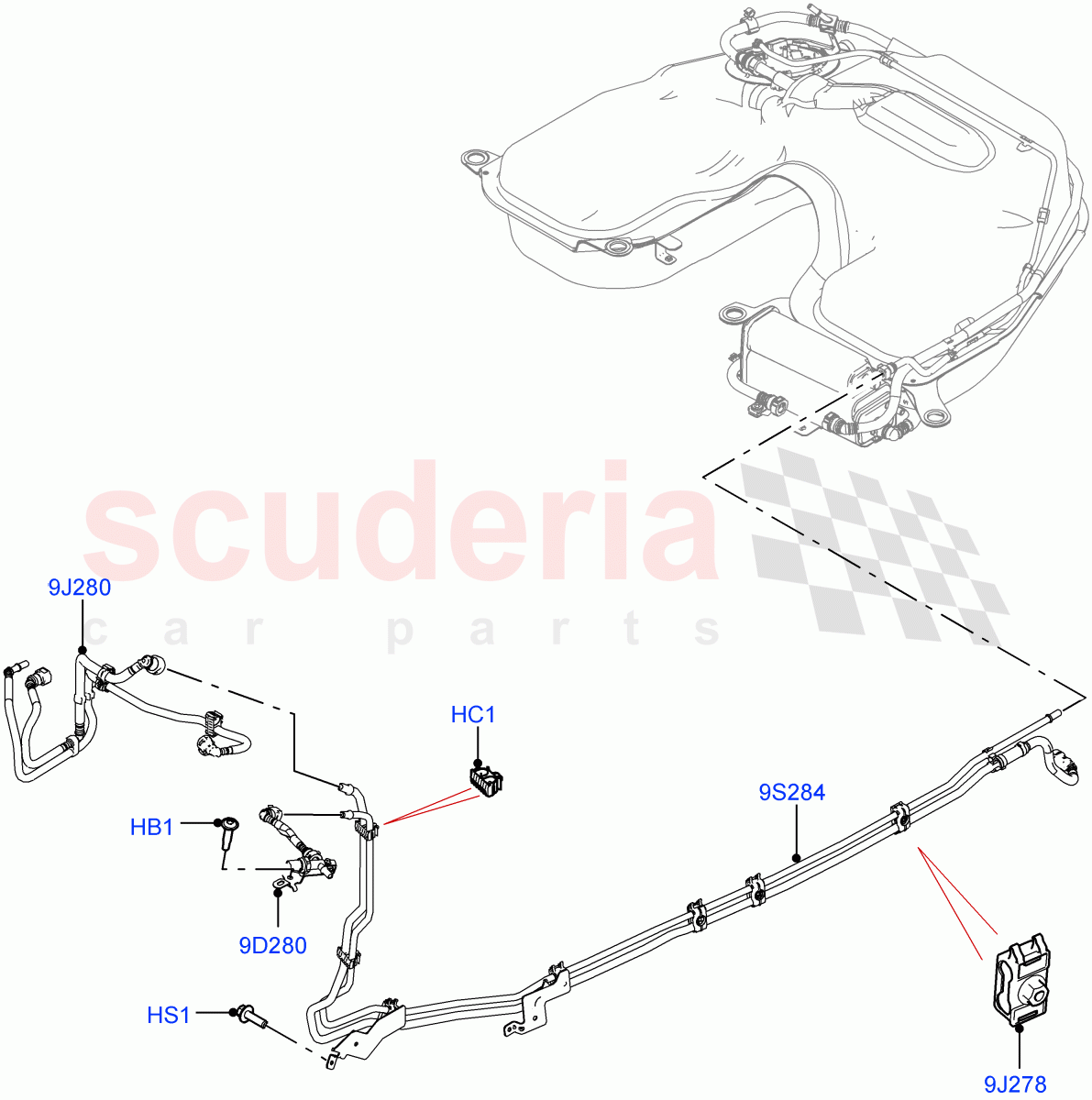

Fuel Lines (Nitra Plant Build) (2.0L AJ200P Hi PHEV) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx 		$1.01 1
HC1 LR148191
CLIP - HOSE
Double 		$3.54 2
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.97 2
9D280 LR128402
MANIFOLD - FUEL SUPPLY 		$109.81 1
9J278 LR149361
RETAINER - TUBE
Rear 		$3.61 1
9J280 LR132670
PIPE - FUEL
Front 		$153.76 1
9S284 LR132672
TUBE - FUEL SUPPLY
To: M2023822 		$261.67 1
9S284 LR144566
TUBE - FUEL SUPPLY
From: M2023823 / To: M2028919 		$261.67 1
9S284 LR149359
TUBE - FUEL SUPPLY
From: M2028920 		$261.67 1
