Fuel Lines (Front, Nitra Plant Build) (2.0L I4 High Dohc Aj200 Petrol)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Front, Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR128402 MANIFOLD - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR132670 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR132673 TUBE - FUEL SUPPLY Enquire To Order
LR128368 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR149356 TUBE - FUEL SUPPLY Enquire To Order
...and 4 more part variants. See table on right for more details.
View All

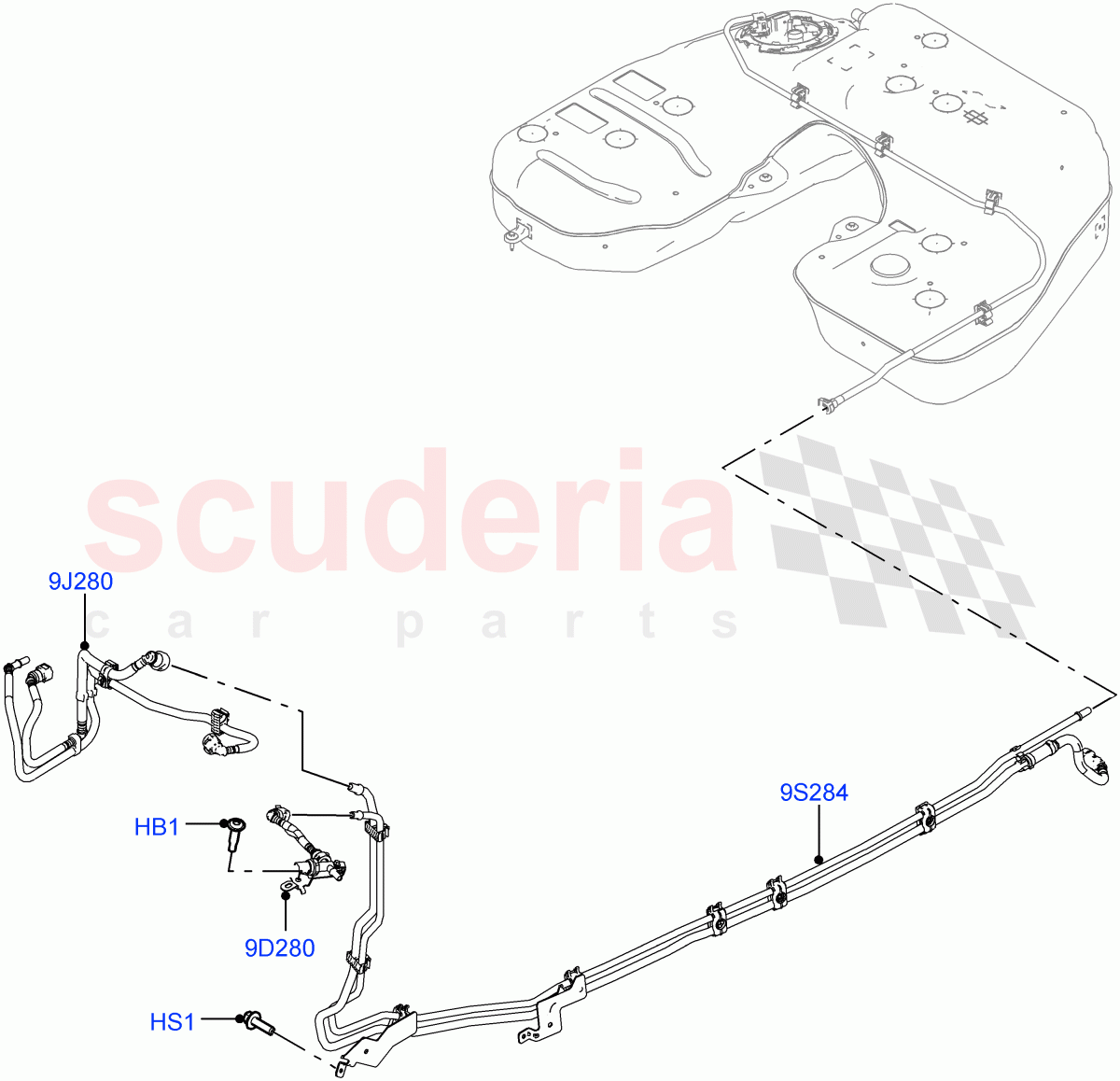

Fuel Lines (Front, Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx 		- 1 Enquire
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM 		- 2 Enquire
9D280 LR128402
MANIFOLD - FUEL SUPPLY 		- 1 Enquire
9J280 LR132670
PIPE - FUEL
Front 		- 1 Enquire
9S284 LR132673
TUBE - FUEL SUPPLY
Standard Wheelbase / To: L2024000 		- 1 Enquire
9S284 LR128368
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / To: M2028919 		- 1 Enquire
9S284 LR149356
TUBE - FUEL SUPPLY
Standard Wheelbase / From: M2000001 		- 1 Enquire
9S284 LR144565
TUBE - FUEL SUPPLY
Standard Wheelbase / From: L2024001 / To: L2028002 		- 1 Enquire
9S284 LR149358
TUBE - FUEL SUPPLY
Standard Wheelbase / From: L2028003 / To: L2999999 		- 1 Enquire
9S284 LR144564
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / From: M2028920 / To: M2034428 		- 1 Enquire
9S284 LR149357
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / From: M2034429 		- 1 Enquire
