Name: Steering Gear (Front) (LHD)
Rating: 4.5 (1 reviews)

Steering Gear (Front) (LHD) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Steering Gear (Front) (LHD)

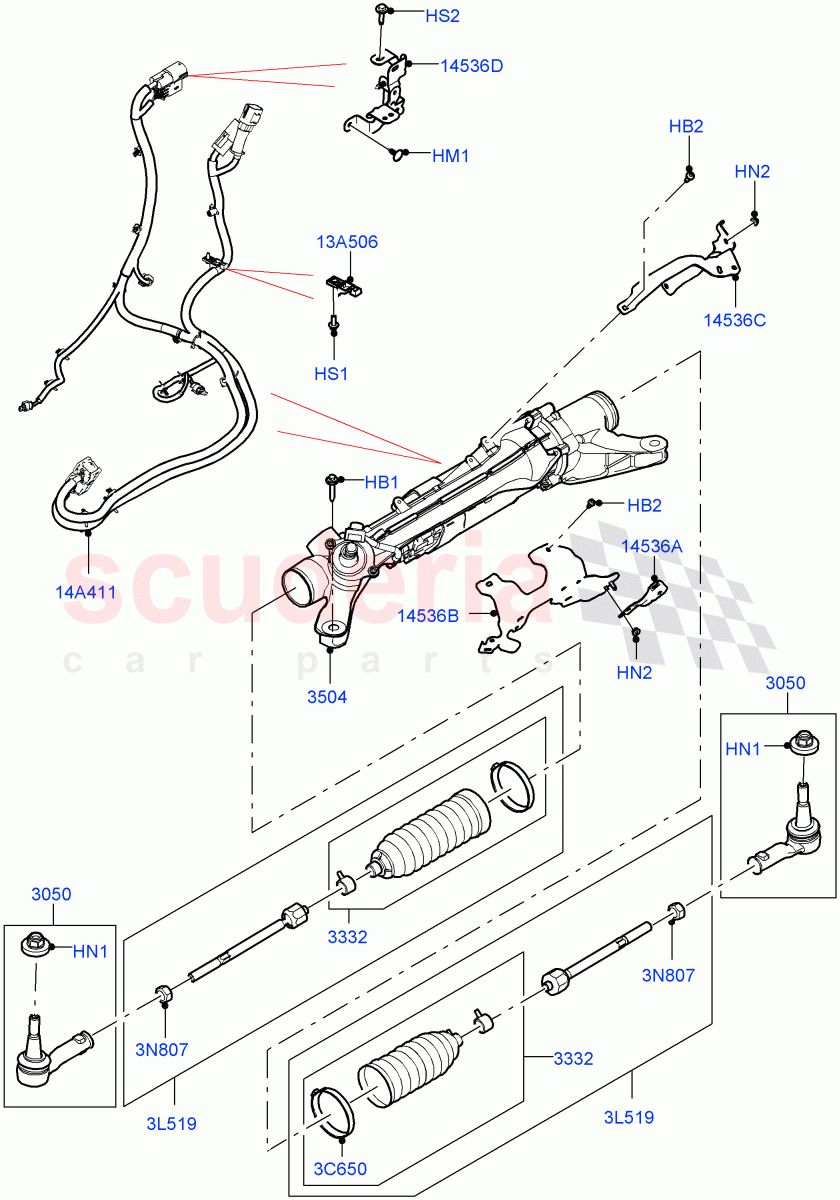

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033536	BOLT	$5.11	To Order

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR026275	NUT - FLANGED	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR132825	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162107	JOINT - BALL	$118.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059267	KIT - BOOT	$76.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147440	GEAR - STEERING	$3,335.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148483	CLAMP - BOOT	$5.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129168	ROD - SPINDLE CONNECTING	$177.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR059274	NUT - ADJUSTING	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146995	CLIP - WIRING	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159857	Bracket	$42.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159859	Bracket	$42.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159855	Bracket	$42.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159856	Bracket	$42.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158304	WIRING - POWER STEERING	$62.97	To Order
	LR158305	WIRING - POWER STEERING	$65.16	To Order
	LR158306	WIRING - POWER STEERING	$64.01	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033536	BOLT	LR033536 BOLT Hexagonal Head, M14 x 70MM	$5.11	2
HB2	XYG500160	BOLT IN STOCK	XYG500160 BOLT M6 x 12MM, Torx IN STOCK	$0.88	4
HM1	RZM500070	PIN - SPECIAL IN STOCK	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin IN STOCK	$1.07	2
HN1	LR026275	NUT - FLANGED	LR026275 NUT - FLANGED M14	$2.23	2
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	2
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$1.19	1
HS2	LR132825	SCREW	LR132825 SCREW Hexagonal Head, M6 X 25MM	$0.95	1
3C650	LR148483	CLAMP - BOOT	LR148483 CLAMP - BOOT RH/LH	$5.34	2
3L519	LR129168	ROD - SPINDLE CONNECTING IN STOCK	LR129168 ROD - SPINDLE CONNECTING RH/LH IN STOCK	$177.14	2
3N807	LR059274	NUT - ADJUSTING	LR059274 NUT - ADJUSTING M16, RH/LH	$2.78	2
13A506	LR146995	CLIP - WIRING	LR146995 CLIP - WIRING	$1.31	1
14A411	LR158304	WIRING - POWER STEERING	LR158304 WIRING - POWER STEERING 3.0L AJ20D6 Diesel High, Drive Line Disconnect	$62.97	1
14A411	LR158305	WIRING - POWER STEERING	LR158305 WIRING - POWER STEERING 4.4 V8 Turbo Petrol (NC10), Drive Line Disconnect, With Extra Engine Cooling System	$65.16	1
14A411	LR158306	WIRING - POWER STEERING	LR158306 WIRING - POWER STEERING 4.4 V8 Turbo Petrol (NC10), Drive Line Disconnect, Less Engine Cooling System	$64.01	1
14A411	LR168650	WIRING - POWER STEERING	LR168650 WIRING - POWER STEERING 3.0L AJ20P6 Petrol High, Drive Line Disconnect	$161.18	1
14A411	LR168651	WIRING - POWER STEERING	LR168651 WIRING - POWER STEERING 3.0L AJ20P6 Petrol High, Less Driveline	$66.48	1
14A411	LR158312	WIRING - POWER STEERING	LR158312 WIRING - POWER STEERING 3.0L AJ20P6 Petrol PHEV, Drive Line Disconnect	$67.66	1
3050	LR162107	JOINT - BALL	LR162107 JOINT - BALL RH/LH	$118.45	2
3332	LR059267	KIT - BOOT	LR059267 KIT - BOOT RH/LH, With Clamps	$76.75	2
3504	LR147440	GEAR - STEERING	LR147440 GEAR - STEERING	$3,335.62	1
14536A	LR159857	Bracket	LR159857 Bracket RH Rear	$42.80	1
14536B	LR159859	Bracket	LR159859 Bracket Center Rear	$42.80	1
14536C	LR159855	Bracket	LR159855 Bracket Front, Wire	$42.80	1
14536D	LR159856	Bracket	LR159856 Bracket Upper, Wire	$42.80	1

Steering Gear (Front) (Lhd)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Steering Gear (Front) (LHD)
