Steering Gear (Front) (Rhd)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Steering Gear (Front) (RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033536 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
XYG500160 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR026275 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR132825 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR162107 JOINT - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LR059267 KIT - BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR147441 GEAR - STEERING Enquire To Order
Photo Part No Description Price (each) Stock
LR148483 CLAMP - BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR129168 ROD - SPINDLE CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR059274 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
LR146995 CLIP - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR159858 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
LR159856 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
LR158308 WIRING - POWER STEERING Enquire To Order
LR158309 WIRING - POWER STEERING Enquire To Order
LR158310 WIRING - POWER STEERING Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

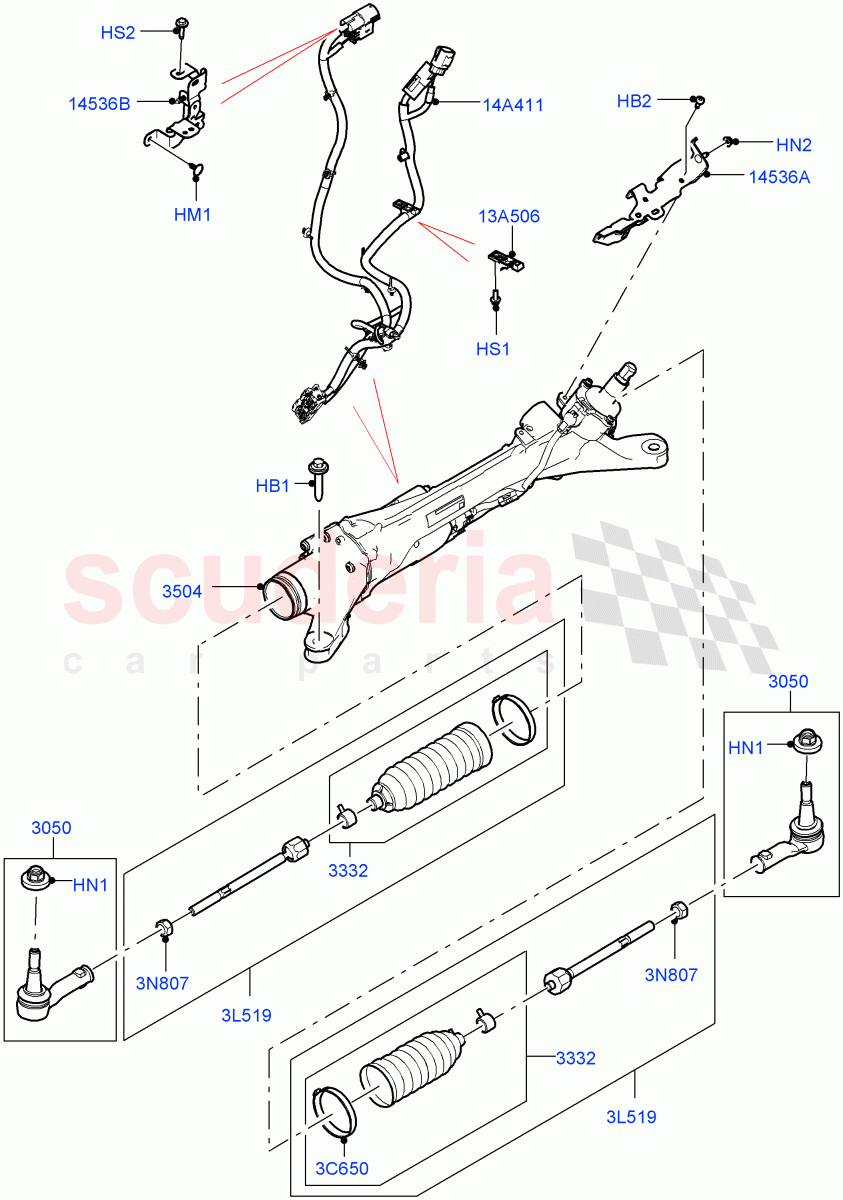

Steering Gear (Front) (RHD) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033536
BOLT
Hexagonal Head, M14 x 70MM 		- 2 Enquire
HB2 XYG500160
BOLT
M6 x 12MM, Torx 		- 2 Enquire
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin 		- 2 Enquire
HN1 LR026275
NUT - FLANGED
M14 		- 2 Enquire
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 1 Enquire
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM 		- 1 Enquire
HS2 LR132825
SCREW
Hexagonal Head, M6 X 25MM 		- 1 Enquire
3C650 LR148483
CLAMP - BOOT
RH/LH 		- 2 Enquire
3L519 LR129168
ROD - SPINDLE CONNECTING
RH/LH 		- 2 Enquire
3N807 LR059274
NUT - ADJUSTING
M16, RH/LH 		- 2 Enquire
13A506 LR146995
CLIP - WIRING 		- 1 Enquire
14A411 LR158308
WIRING - POWER STEERING
3.0L AJ20D6 Diesel High, Drive Line Disconnect 		- 1 Enquire
14A411 LR158309
WIRING - POWER STEERING
4.4 V8 Turbo Petrol (NC10), Drive Line Disconnect, With Extra Engine Cooling System 		- 1 Enquire
14A411 LR158310
WIRING - POWER STEERING
4.4 V8 Turbo Petrol (NC10), Drive Line Disconnect, With Standard Engine Cooling System 		- 1 Enquire
14A411 LR168652
WIRING - POWER STEERING
3.0L AJ20P6 Petrol High, Drive Line Disconnect 		- 1 Enquire
14A411 LR168653
WIRING - POWER STEERING
3.0L AJ20P6 Petrol High, Less Driveline 		- 1 Enquire
14A411 LR158313
WIRING - POWER STEERING
3.0L AJ20P6 Petrol PHEV, Drive Line Disconnect 		- 1 Enquire
3050 LR162107
JOINT - BALL
RH/LH 		- 2 Enquire
3332 LR059267
KIT - BOOT
RH/LH, With Clamps 		- 2 Enquire
3504 LR147441
GEAR - STEERING 		- 1 Enquire
14536A LR159858
Bracket
Cable Bracket, Lower 		- 1 Enquire
14536B LR159856
Bracket
Cable Bracket, Upper 		- 1 Enquire
