Find Your Part

View All

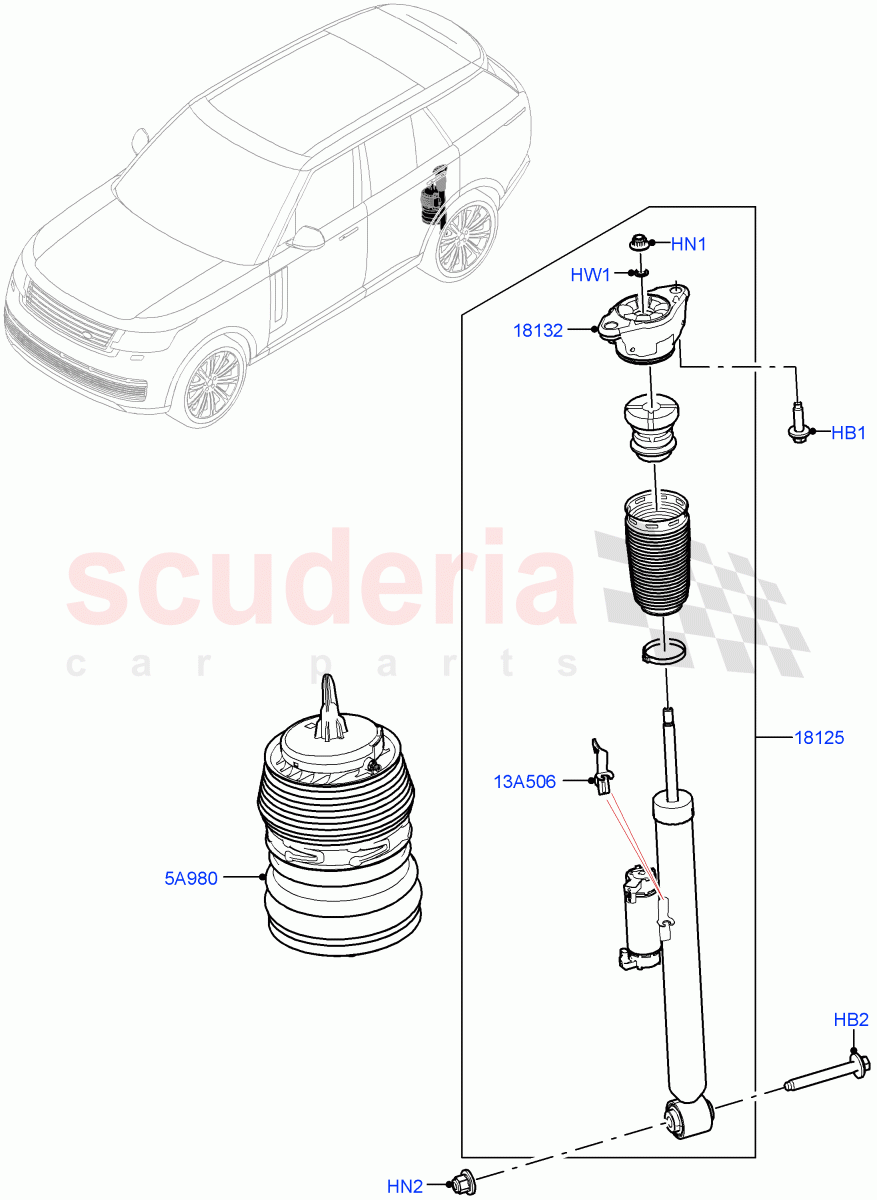

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078389	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090528	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116654	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034277	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153117	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153121	BRACKET - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153175	CLIP - SPECIAL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR078389	BOLT - FLANGED HEX.	LR078389 BOLT - FLANGED HEX. Hexagonal Head, M12 x 40MM	-	4	Enquire
HB2	LR090528	BOLT	LR090528 BOLT Hexagonal Head, M14 X 105MM	-	2	Enquire
HN1	LR116654	NUT	LR116654 NUT M12 x 1.5	-	2	Enquire
HN2	LR034277	NUT	LR034277 NUT M14, Nut And Washer	-	2	Enquire
HW1	LR153117	WASHER	LR153117 WASHER RH/LH	-	2	Enquire
5A980	LR153096	SPRING - AIR SUSPENSION	LR153096 SPRING - AIR SUSPENSION LH	-	1	Enquire
5A980	LR153093	SPRING - AIR SUSPENSION	LR153093 SPRING - AIR SUSPENSION RH	-	1	Enquire
13A506	LR153175	CLIP - SPECIAL	LR153175 CLIP - SPECIAL RH/LH	-	2	Enquire
18125	LR153057	SHOCK ABSORBER	LR153057 SHOCK ABSORBER RH, With Reinforcement, Seal And Nut	-	1	Enquire
18125	LR153063	SHOCK ABSORBER	LR153063 SHOCK ABSORBER LH, With Reinforcement, Seal And Nut	-	1	Enquire
18132	LR153121	BRACKET - SHOCK ABSORBER	LR153121 BRACKET - SHOCK ABSORBER RH/LH, Shock Absorber Mounting	-	2	Enquire
