Name: Rear Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE)
Rating: 5.0 (1 reviews)

Rear Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE)

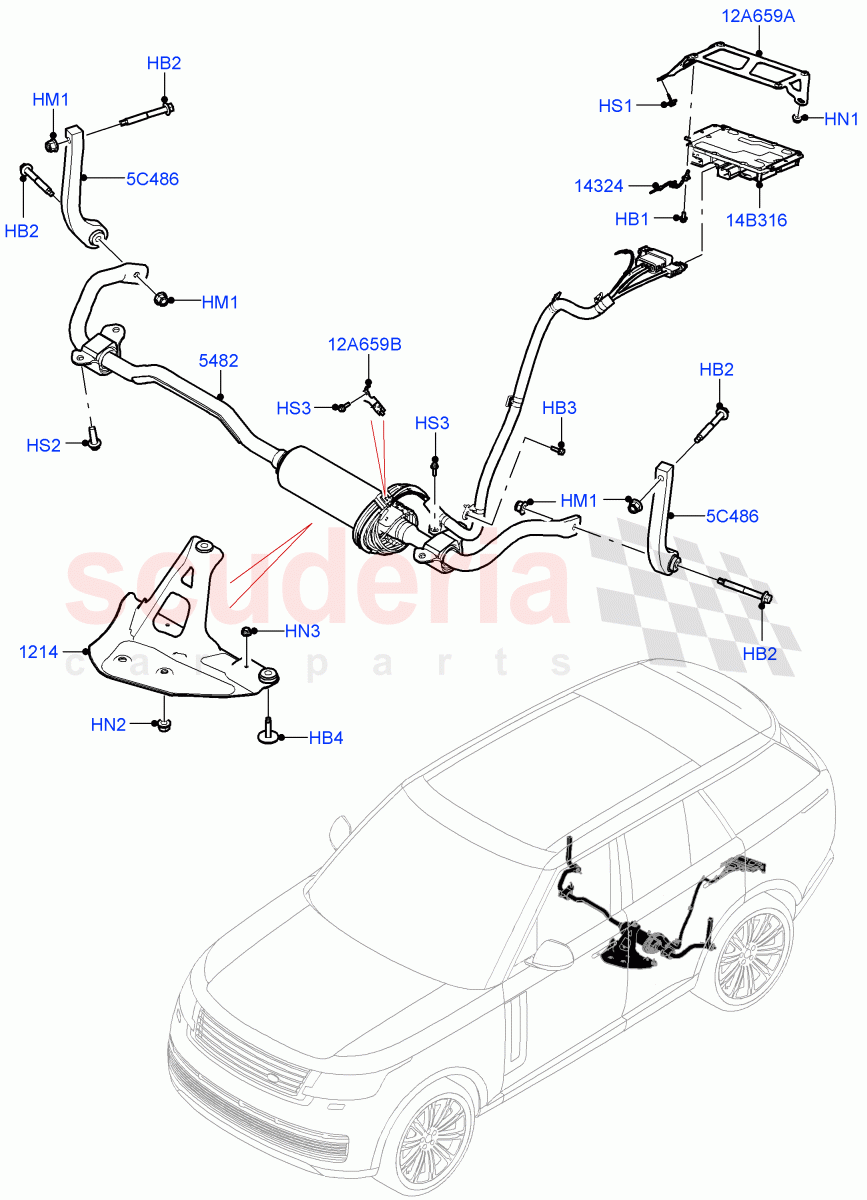

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR096556	BOLT	$4.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093829	BOLT	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090496	BOLT	$2.80	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	$1.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500390	NUT AND WASHER - HEX.	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500590	NUT - HEX.	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038560	SCREW	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153459	SHIELD - SPLASH	$135.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153446	BAR - REAR STABILIZER	$3,317.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153871	WIRE - EARTH	$20.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152928	LINK - STABILIZER BAR	$111.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153853	MODULE - ELECTRONIC CONTROL UNIT	$894.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153857	BRACKET - MODULE	$34.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154191	BRACKET - CABLE SUPPORT	$26.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM IN STOCK	$0.50	4
HB2	LR096556	BOLT	LR096556 BOLT Hexagonal Head, M12 x 90MM	$4.24	4
HB3	LR093829	BOLT	LR093829 BOLT Hexagonal Head, M6 X 20MM	$1.18	1
HB4	LR090496	BOLT	LR090496 BOLT 3.0L AJ20P6 Petrol High / Hexagonal Head, M10 X 50MM	$2.80	2
HM1	FY112056	NUT - HEX. IN STOCK	FY112056 NUT - HEX. Hex Nut Type, M12 IN STOCK	$1.86	4
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	1
HN2	RYH500390	NUT AND WASHER - HEX.	RYH500390 NUT AND WASHER - HEX. 4.4 V8 Turbo Petrol (NC10) / M10, Nut And Washer	$1.63	2
HN3	RYH500590	NUT - HEX.	RYH500590 NUT - HEX. 3.0L AJ20P6 Petrol High / Hexagonal Head, M6	$1.30	2
HS1	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM	$1.61	2
HS2	LR038560	SCREW	LR038560 SCREW Hexagonal Head, M12 x 40MM	$3.13	4
HS3	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM	$0.90	2
5C486	LR152928	LINK - STABILIZER BAR	LR152928 LINK - STABILIZER BAR RH/LH	$111.09	2
12A659A	LR153857	BRACKET - MODULE	LR153857 BRACKET - MODULE ECU	$34.89	1
12A659B	LR154191	BRACKET - CABLE SUPPORT	LR154191 BRACKET - CABLE SUPPORT Cable Bracket	$26.86	1
14B316	LR153853	MODULE - ELECTRONIC CONTROL UNIT	LR153853 MODULE - ELECTRONIC CONTROL UNIT Active Roll Bar (ARB) System Control	$894.96	1
1214	LR153459	SHIELD - SPLASH	LR153459 SHIELD - SPLASH 4.4 V8 Turbo Petrol (NC10) / EARC Protection	$135.08	1
5482	LR153446	BAR - REAR STABILIZER	LR153446 BAR - REAR STABILIZER Includes Insulators And Clamps, With Harness	$3,317.59	1
14324	LR153871	WIRE - EARTH	LR153871 WIRE - EARTH Module To Body	$20.98	1
