Name: Exhaust Sensors And Modules (GPF) (4.4 V8 Turbo Petrol (NC10), Beijing 6 Petrol Emission, EU6D - Final (Petrol) Emission)
Rating: 5.0 (1 reviews)

Exhaust Sensors And Modules (GPF) (4.4 V8 Turbo Petrol (NC10), Beijing 6 Petrol Emission, EU6D - Final (Petrol) Emission) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Exhaust Sensors And Modules (GPF) (4.4 V8 Turbo Petrol (NC10), Beijing 6 Petrol Emission, EU6D -...

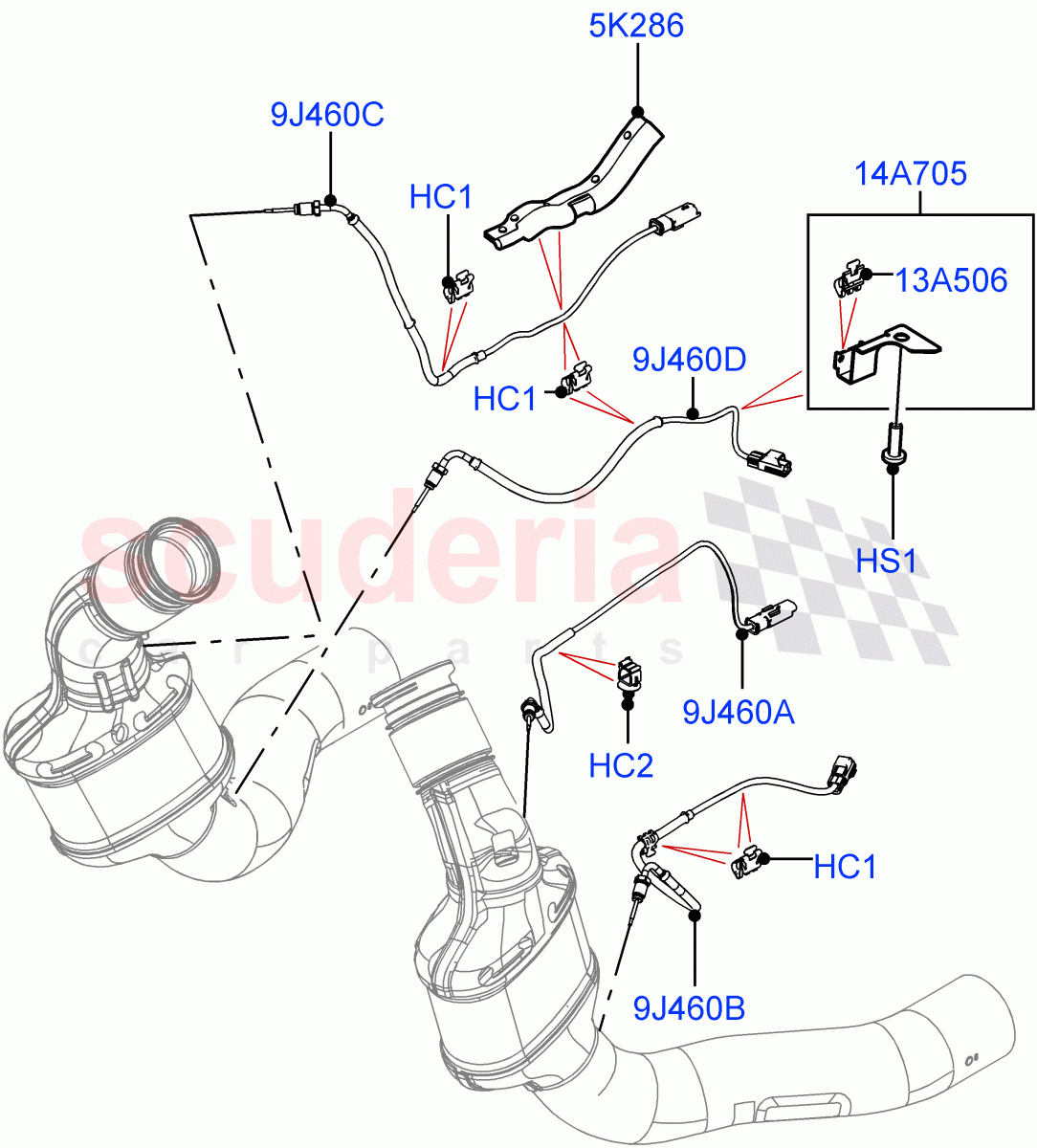

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126161	CLIP	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141927	CLIP	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500050	SCREW	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159182	HEAT SHIELD	$63.13	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166508	BRACKET	$29.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152202	SENSOR - EXHAUST GAS - TEMPERATURE	$155.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152203	SENSOR - EXHAUST GAS - TEMPERATURE	$155.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152204	SENSOR - EXHAUST GAS - TEMPERATURE	$150.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152205	SENSOR - EXHAUST GAS - TEMPERATURE	$155.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR126161	CLIP	LR126161 CLIP 8 X 2.75mm, Exhaust Gas Temperature Sensor	$1.36	5
HC2	LR141927	CLIP	LR141927 CLIP 10 X 6.8 X 0.7-6	$0.36	2
HS1	VYP500050	SCREW	VYP500050 SCREW M8 X 25MM, To Transmission	$0.45	1
5K286	LR159182	HEAT SHIELD	LR159182 HEAT SHIELD Exhaust Gas Temperature Sensor, RH Upper	$63.13	1
9J460A	LR152202	SENSOR - EXHAUST GAS - TEMPERATURE	LR152202 SENSOR - EXHAUST GAS - TEMPERATURE LH Upper	$155.73	1
9J460B	LR152203	SENSOR - EXHAUST GAS - TEMPERATURE	LR152203 SENSOR - EXHAUST GAS - TEMPERATURE LH Lower	$155.73	1
9J460C	LR152204	SENSOR - EXHAUST GAS - TEMPERATURE	LR152204 SENSOR - EXHAUST GAS - TEMPERATURE RH Upper	$150.48	1
9J460D	LR152205	SENSOR - EXHAUST GAS - TEMPERATURE	LR152205 SENSOR - EXHAUST GAS - TEMPERATURE RH Lower	$155.73	1
13A506	YQR000050	CLIP - WIRING	YQR000050 CLIP - WIRING Sensor Wire To Bracket	$0.76	1
14A705	LR166508	BRACKET	LR166508 BRACKET Temperature Sensor	$29.40	1
