Exhaust Sensors And Modules (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Exhaust Sensors And Modules (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR159829 CLIP - SINGLE $8.55 To Order
Photo Part No Description Price (each) Stock
LR159830 CLIP - SINGLE $17.91 To Order
Photo Part No Description Price (each) Stock
LR163183 CLIP - SINGLE $2.70 To Order
Photo Part No Description Price (each) Stock
LR159138 CLAMP $14.29 To Order
Photo Part No Description Price (each) Stock
LR158545 SCREW $2.34 To Order
Photo Part No Description Price (each) Stock
LR158270 HEAT SHIELD $20.14 To Order
Photo Part No Description Price (each) Stock
LR159844 SENSOR - LAMBDA $349.24 To Order
Photo Part No Description Price (each) Stock
LR159843 SENSOR - LAMBDA $371.19 To Order
Photo Part No Description Price (each) Stock
LR158775 BRACKET $59.85 To Order
Photo Part No Description Price (each) Stock
LR159217 BRACKET $59.85 To Order
View All

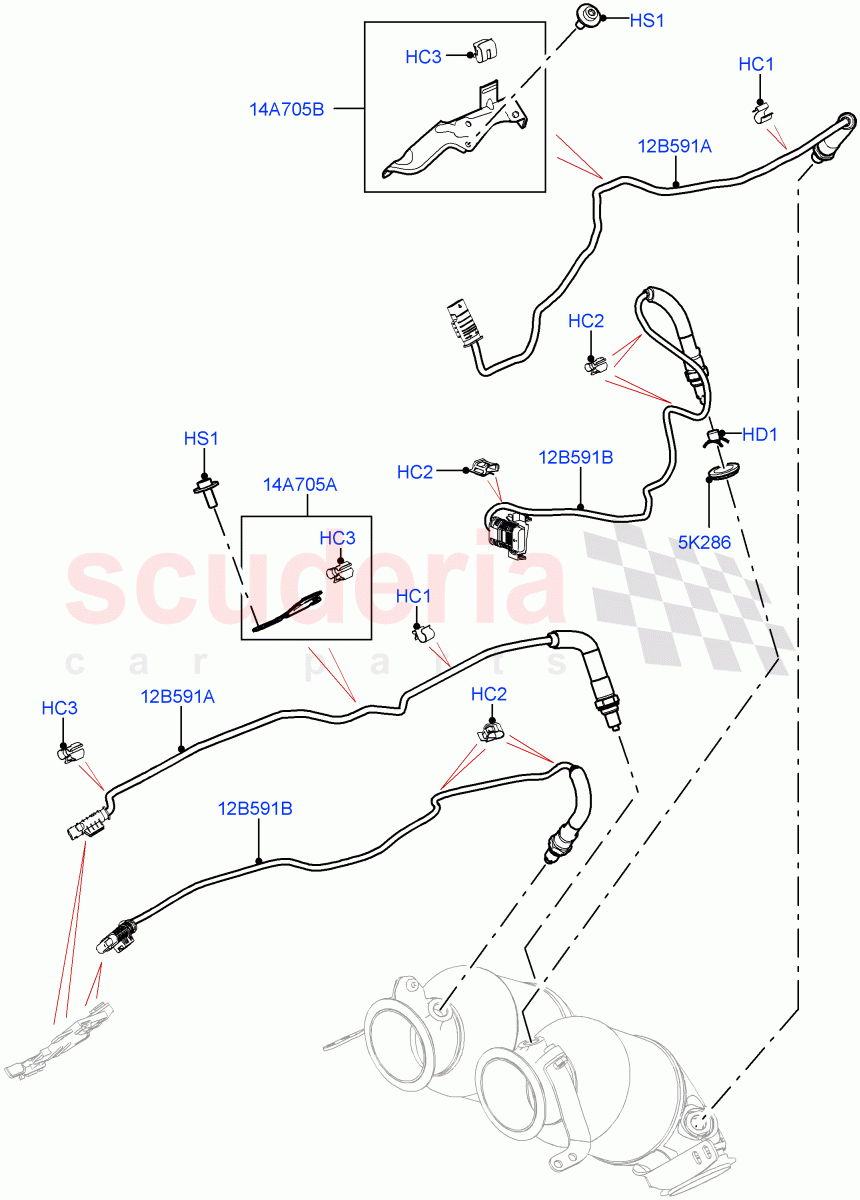

Exhaust Sensors And Modules (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR159829
CLIP - SINGLE
Camshaft Cover, Lambda Sensor Wire 		$8.55 4
HC2 LR159830
CLIP - SINGLE
Lambda Sensor Wire 		$17.91 5
HC3 LR163183
CLIP - SINGLE
Sensor Wire To Bracket 		$2.70 3
HD1 LR159138
CLAMP
Heat Shield, Lambda Sensor 		$14.29 2
HS1 LR158545
SCREW
M6 X 16, Sensor Bracket 		$2.34 4
5K286 LR158270
HEAT SHIELD
Lambda Sensor 		$20.14 2
12B591A LR159844
SENSOR - LAMBDA
Rear, RH/LH 		$349.24 2
12B591B LR159843
SENSOR - LAMBDA
Front, RH/LH 		$371.19 2
14A705A LR158775
BRACKET
RH 		$59.85 1
14A705B LR159217
BRACKET
LH 		$59.85 1
