Name: Oil Pump (4.4 V8 Turbo Petrol (NC10))
Rating: 4.6 (1 reviews)

View All

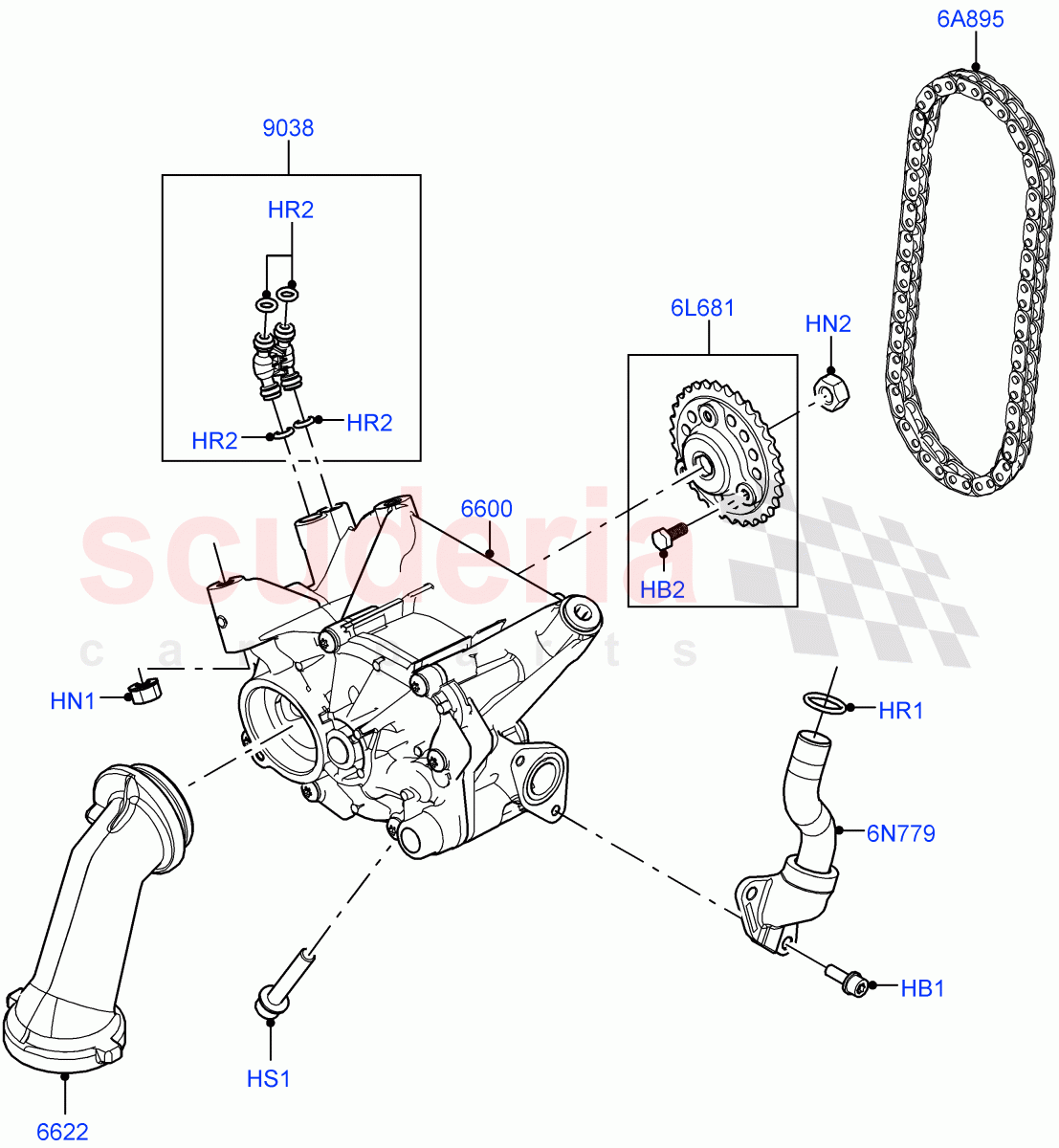

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158546	SCREW AND WASHER	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158675	BOLT	$5.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR158474	NUT - FLANGED	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158475	NUT - HEX.	$4.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158246	O-RING	$10.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158245	O-RING	$10.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158542	SCREW	$5.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158600	PUMP - OIL	$867.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159825	TUBE - OIL PUMP INLET	$86.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158655	CONTROL LINE	$72.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158339	CHAIN - OIL PUMP DRIVE	$113.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158320	SPROCKET - OIL PUMP DRIVE	$165.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170359	TUBE - OIL PUMP OUTLET	$86.94	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158546	SCREW AND WASHER	LR158546 SCREW AND WASHER M6 x 18MM, Oil Pump	$2.70	2
HB2	LR158675	BOLT IN STOCK	LR158675 BOLT To Sprocket IN STOCK	$5.15	3
HN1	LR158474	NUT - FLANGED	LR158474 NUT - FLANGED M8, Oil Pump	$3.69	2
HN2	LR158475	NUT - HEX.	LR158475 NUT - HEX. M10, To Sprocket	$4.93	1
HR1	LR158246	O-RING	LR158246 O-RING 17.5 x 2.62	$10.93	1
HR2	LR158245	O-RING	LR158245 O-RING 6 X 2.5, Pipe - Connecting	$10.93	4
HS1	LR158542	SCREW	LR158542 SCREW M8 X 45MM	$5.15	1
6A895	LR158339	CHAIN - OIL PUMP DRIVE	LR158339 CHAIN - OIL PUMP DRIVE	$113.05	1
6L681	LR158320	SPROCKET - OIL PUMP DRIVE	LR158320 SPROCKET - OIL PUMP DRIVE	$165.09	1
6N779	LR170359	TUBE - OIL PUMP OUTLET	LR170359 TUBE - OIL PUMP OUTLET	$86.94	1
6600	LR158600	PUMP - OIL	LR158600 PUMP - OIL	$867.79	1
6622	LR159825	TUBE - OIL PUMP INLET	LR159825 TUBE - OIL PUMP INLET	$86.79	1
9038	LR158655	CONTROL LINE	LR158655 CONTROL LINE To Cylinder Block	$72.49	1

Oil Pump (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
