Name: Oil Pan/Oil Level Indicator (4.4 V8 Turbo Petrol (NC10))
Rating: 4.8 (1 reviews)

Oil Pan/Oil Level Indicator (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Oil Pan/Oil Level Indicator (4.4 V8 Turbo Petrol (NC10))

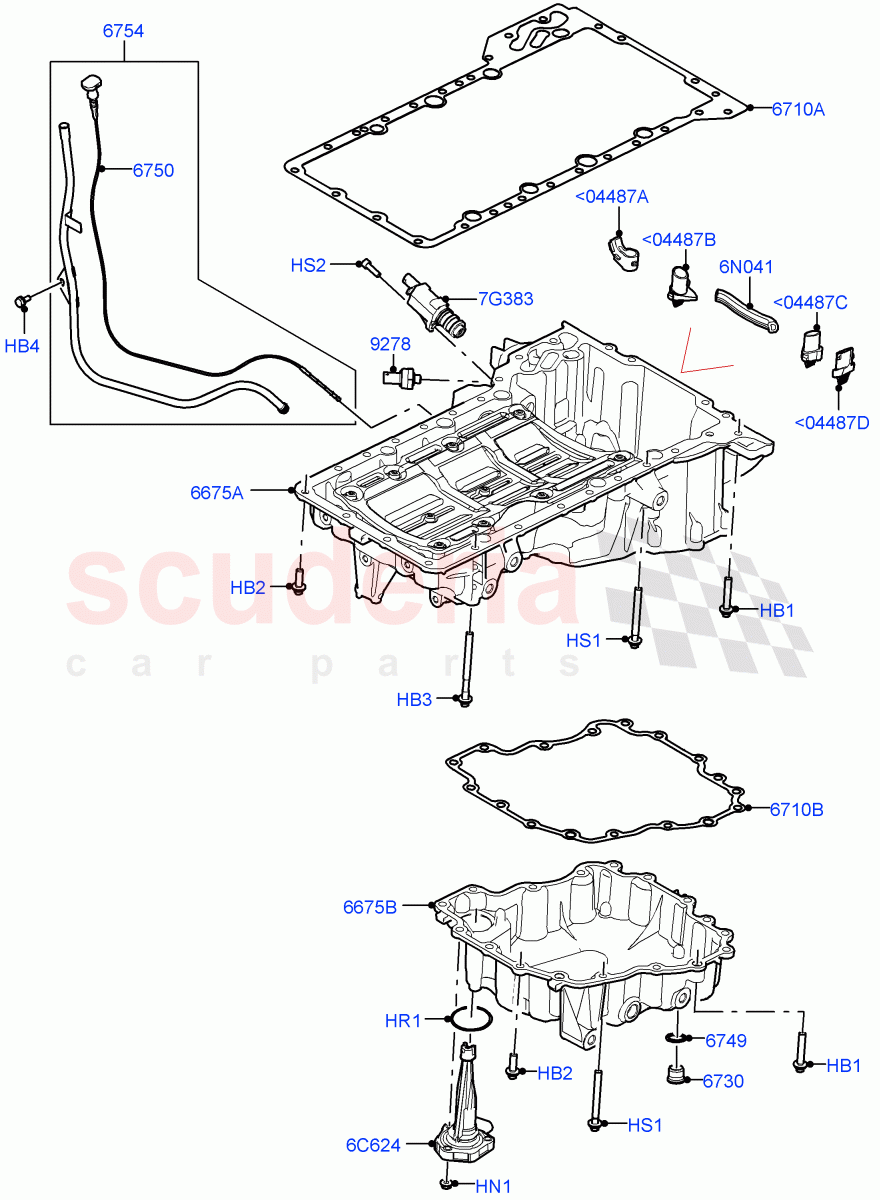

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158556	SCREW	$2.27	To Order
	LR158556	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158558	SCREW	$2.27	To Order
	LR158558	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158561	SCREW	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158272	BOLT AND WASHER - HEX.HEAD	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158473	NUT - FLANGED	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158725	O-RING	$13.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159797	SCREW	$3.90	To Order
	LR159797	SCREW	$3.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170360	SCREW	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158345	PLUG - OIL DRAIN	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158316	SEAL	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175644	Indicator - Oil Level	$57.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175643	Tube - Oil Level Indicator	$97.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159313	SENSOR - OIL PRESSURE	$59.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159822	PAN - ENGINE OIL	$802.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159821	PAN - ENGINE OIL	$636.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159824	GASKET - OIL PAN	$51.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163181	GASKET - OIL PAN	$51.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159290	SENSOR - OIL LEVEL	$227.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151759	DAMPER	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158704	SOLENOID - OIL PUMP	$200.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151777	PLUG	$7.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151780	PLUG	$7.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151772	PLUG	$7.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151768	PLUG	$7.79	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<04487A	LR151777	PLUG	LR151777 PLUG RH - Outer	$7.79	1
<04487B	LR151780	PLUG	LR151780 PLUG RH - Inner	$7.79	1
<04487C	LR151772	PLUG	LR151772 PLUG LH - Inner	$7.79	1
<04487D	LR151768	PLUG	LR151768 PLUG LH - Outer	$7.79	1
HB1	LR158556	SCREW	LR158556 SCREW Lower, M8 X 45MM, Oil Pan	$2.27	1
HB1	LR158556	SCREW	LR158556 SCREW M8 X 45MM, Oil Pan, Upper	$2.27	9
HB2	LR158558	SCREW	LR158558 SCREW Lower, M8 X 25MM, Oil Pan	$2.27	13
HB2	LR158558	SCREW	LR158558 SCREW M8 X 25MM, Oil Pan, Upper	$2.27	15
HB3	LR158561	SCREW	LR158561 SCREW M8 x 95MM, Oil Pan, Upper	$3.04	1
HB4	LR158272	BOLT AND WASHER - HEX.HEAD	LR158272 BOLT AND WASHER - HEX.HEAD M6 x 14mm, Oil Level Indicator	$2.98	1
HN1	LR158473	NUT - FLANGED	LR158473 NUT - FLANGED M6, Sensor - Oil Level	$0.99	3
HR1	LR158725	O-RING	LR158725 O-RING Oil Level Indicator	$13.09	1
HS1	LR159797	SCREW	LR159797 SCREW Lower, M8 X 75MM, Oil Pan	$3.90	3
HS1	LR159797	SCREW	LR159797 SCREW M8 X 75MM, Oil Pan, Upper	$3.90	1
HS2	LR170360	SCREW	LR170360 SCREW M6 X 20MM, Solenoid	$1.12	1
6C624	LR159290	SENSOR - OIL LEVEL	LR159290 SENSOR - OIL LEVEL	$227.75	1
6N041	LR151759	DAMPER	LR151759 DAMPER Acoustic	$28.66	1
7G383	LR158704	SOLENOID - OIL PUMP	LR158704 SOLENOID - OIL PUMP	$200.89	1
6675A	LR159822	PAN - ENGINE OIL	LR159822 PAN - ENGINE OIL Upper	$802.52	1
6675B	LR159821	PAN - ENGINE OIL	LR159821 PAN - ENGINE OIL Lower	$636.54	1
6710A	LR159824	GASKET - OIL PAN	LR159824 GASKET - OIL PAN Upper	$51.43	1
6710B	LR163181	GASKET - OIL PAN	LR163181 GASKET - OIL PAN Lower	$51.43	1
6730	LR158345	PLUG - OIL DRAIN	LR158345 PLUG - OIL DRAIN M18 x 1.5	$8.12	1
6749	LR158316	SEAL	LR158316 SEAL	$4.75	1
6750	LR175644	Indicator - Oil Level	LR175644 Indicator - Oil Level Blade	$57.42	1
6754	LR175643	Tube - Oil Level Indicator	LR175643 Tube - Oil Level Indicator Assembly	$97.67	1
9278	LR159313	SENSOR - OIL PRESSURE	LR159313 SENSOR - OIL PRESSURE M10	$59.66	1
