Insulators - Front (Engine Compartment) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Insulators - Front (Engine Compartment)

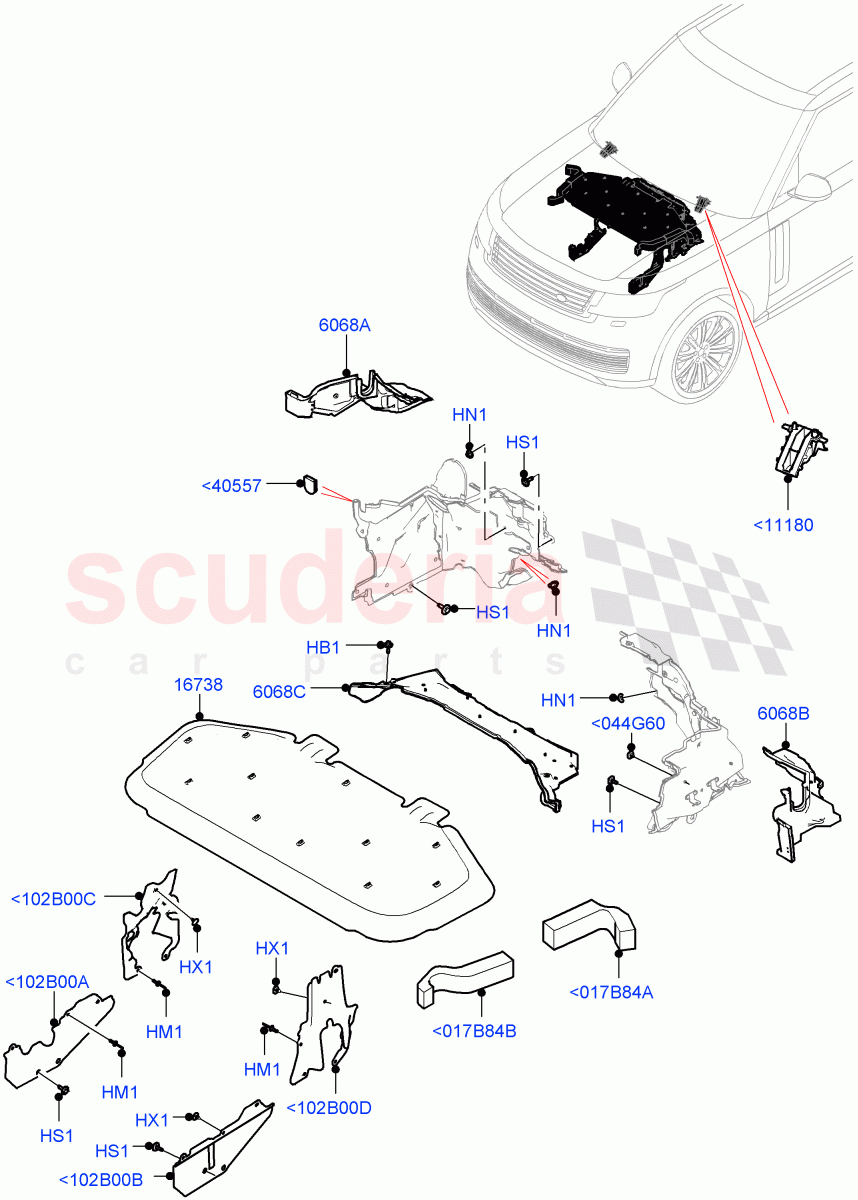

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYQ100010	RIVET	Enquire	To Order
	KYQ100010	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	Enquire	To Order
	LR126160	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153177	INSULATOR - HOOD	Enquire	To Order
	LR156249	INSULATOR - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153179	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order
	LR174062	Insulator - Engine Compartment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153180	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order
	LR174063	Insulator - Engine Compartment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153178	INSULATOR - BULKHEAD	Enquire	To Order
	LR174061	Insulator - Engine Compartment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165648	FOAM - SEALING	Enquire	To Order
	LR165649	FOAM - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151525	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043717	PIN - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161765	INSULATOR - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161569	INSULATOR - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159196	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159197	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159195	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159362	SHIELD - ENGINE COMPARTMENT SPLASH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84A	LR161765	INSULATOR - HOOD	LR161765 INSULATOR - HOOD RH/LH	-	2	Enquire
<017B84B	LR161569	INSULATOR - HOOD	LR161569 INSULATOR - HOOD RH/LH	-	2	Enquire
<044G60	LR043717	PIN - TRIM	LR043717 PIN - TRIM 3.0L AJ20P6 Petrol High / 8.2 - 7.8 x 2.5 - 10 Plastic	-	1	Enquire
<102B00A	LR159196	INSULATOR - ENGINE COMPARTMENT	LR159196 INSULATOR - ENGINE COMPARTMENT RH	-	1	Enquire
<102B00B	LR159197	INSULATOR - ENGINE COMPARTMENT	LR159197 INSULATOR - ENGINE COMPARTMENT 4.4 V8 Turbo Petrol (NC10) / LH	-	1	Enquire
<102B00C	LR159195	INSULATOR - ENGINE COMPARTMENT	LR159195 INSULATOR - ENGINE COMPARTMENT RH	-	1	Enquire
<102B00D	LR159362	SHIELD - ENGINE COMPARTMENT SPLASH	LR159362 SHIELD - ENGINE COMPARTMENT SPLASH 3.0L AJ20D6 Diesel High / LH	-	1	Enquire
<11180	LR165648	FOAM - SEALING	LR165648 FOAM - SEALING RH	-	1	Enquire
<11180	LR165649	FOAM - SEALING	LR165649 FOAM - SEALING LH	-	1	Enquire
<40557	LR151525	GROMMET	LR151525 GROMMET 4.4 V8 Turbo Petrol (NC10) / Blanking Plug	-	1	Enquire
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Hexagonal Head, M6 X 24MM	-	2	Enquire
HM1	KYQ100010	RIVET	KYQ100010 RIVET RH, Front, Insulator, Lower,	-	3	Enquire
HM1	KYQ100010	RIVET	KYQ100010 RIVET RH, Front, Insulator,	-	1	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer	-	5	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, Insulator, M6 X 20MM, Rear	-	10	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW RH, Bolt And Washer, Front, Hexagonal Head, Insulator, Lower, M6 X 20MM	-	2	Enquire
HX1	LR126160	PIN - FASTENING	LR126160 PIN - FASTENING RH, 6.5 x 6, Front, Insulator, Upper	-	1	Enquire
HX1	LR126160	PIN - FASTENING	LR126160 PIN - FASTENING 3.0L AJ20P6 Petrol PHEV / LH, 6.5 x 6, Front, Insulator, Upper	-	3	Enquire
6068A	LR153179	INSULATOR - ENGINE COMPARTMENT	LR153179 INSULATOR - ENGINE COMPARTMENT RH / To: NA000675	-	1	Enquire
6068A	LR174062	Insulator - Engine Compartment	LR174062 Insulator - Engine Compartment RH / From: NA000676	-	1	Enquire
6068B	LR153180	INSULATOR - ENGINE COMPARTMENT	LR153180 INSULATOR - ENGINE COMPARTMENT LH / To: NA000675	-	1	Enquire
6068B	LR174063	Insulator - Engine Compartment	LR174063 Insulator - Engine Compartment LH / From: NA000676	-	1	Enquire
6068C	LR153178	INSULATOR - BULKHEAD	LR153178 INSULATOR - BULKHEAD Centre / To: NA000675	-	1	Enquire
6068C	LR174061	Insulator - Engine Compartment	LR174061 Insulator - Engine Compartment Centre / From: NA000676	-	1	Enquire
16738	LR153177	INSULATOR - HOOD	LR153177 INSULATOR - HOOD 3.0L AJ20P6 Petrol PHEV	-	1	Enquire
16738	LR156249	INSULATOR - HOOD	LR156249 INSULATOR - HOOD 3.0L AJ20D6 Diesel High	-	1	Enquire
