Front Panels, Aprons & Side Members (Front Panel)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Front Panels, Aprons & Side Members (Front Panel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR106658 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR152672 BRACKET - FRONT END Enquire To Order
LR152673 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR152981 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR152506 FRONT END Enquire To Order
Photo Part No Description Price (each) Stock
LR152676 REINFORCEMENT - BUMPER SECURING Enquire To Order
LR152682 REINFORCEMENT - BUMPER SECURING Enquire To Order
Photo Part No Description Price (each) Stock
LR153169 PLATE - ISOLATOR-FRONT END CARRIER Enquire To Order
View All

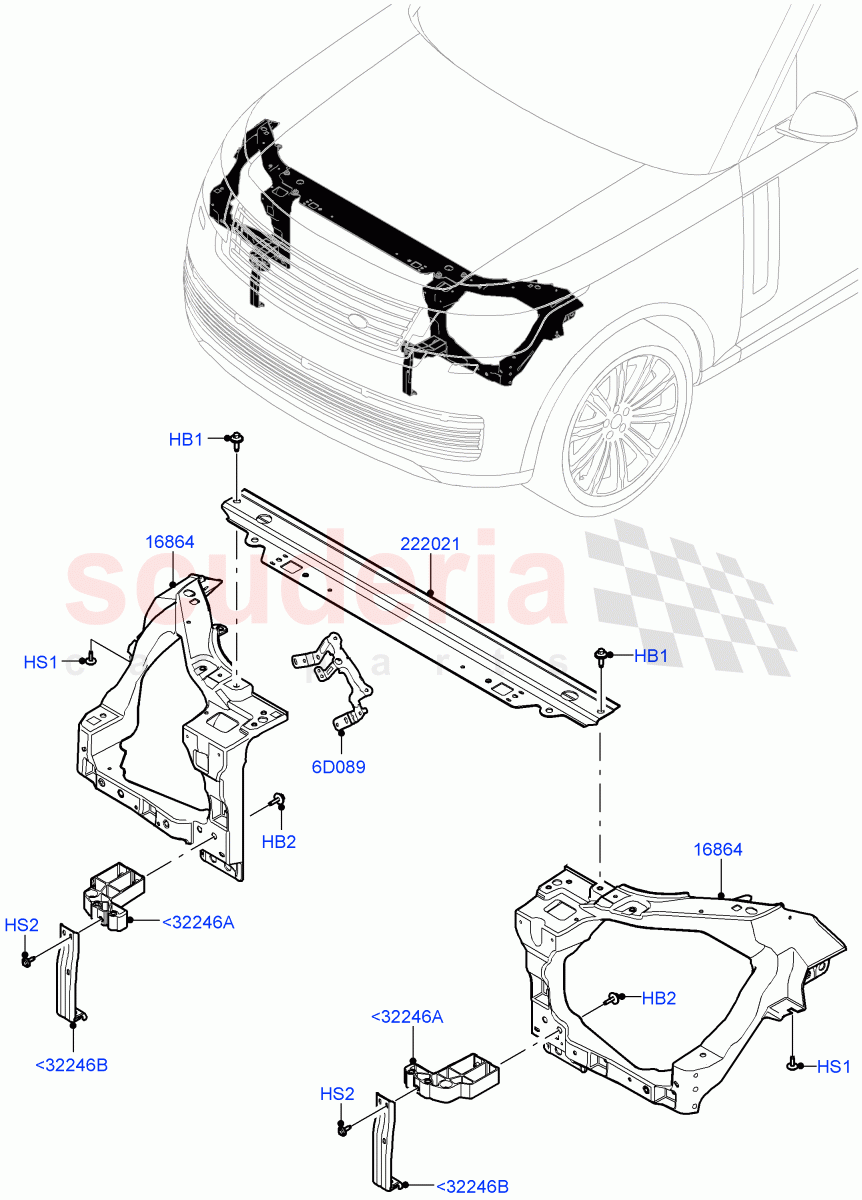

Front Panels, Aprons & Side Members (Front Panel) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<32246A LR152676
REINFORCEMENT - BUMPER SECURING
RH 		- 1 Enquire
<32246A LR152682
REINFORCEMENT - BUMPER SECURING
LH 		- 1 Enquire
<32246B LR153169
PLATE - ISOLATOR-FRONT END CARRIER
RH/LH 		- 2 Enquire
HB1 LR106658
BOLT
Bolt And Washer, Hexagonal Head, M8 X 25MM 		- 6 Enquire
HB2 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM 		- 4 Enquire
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM 		- 2 Enquire
HS2 FYP500550
SCREW
Hexagonal Head, M6 X 20MM 		- 4 Enquire
6D089 LR152981
BRACKET
RH 		- 1 Enquire
16864 LR152672
BRACKET - FRONT END
RH, Category A, Side 		- 1 Enquire
16864 LR152673
BRACKET
LH, Category A, Side 		- 1 Enquire
222021 LR152506
FRONT END 		- 1 Enquire
