Find Your Part

Timing Gear Covers (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Timing Gear Covers (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

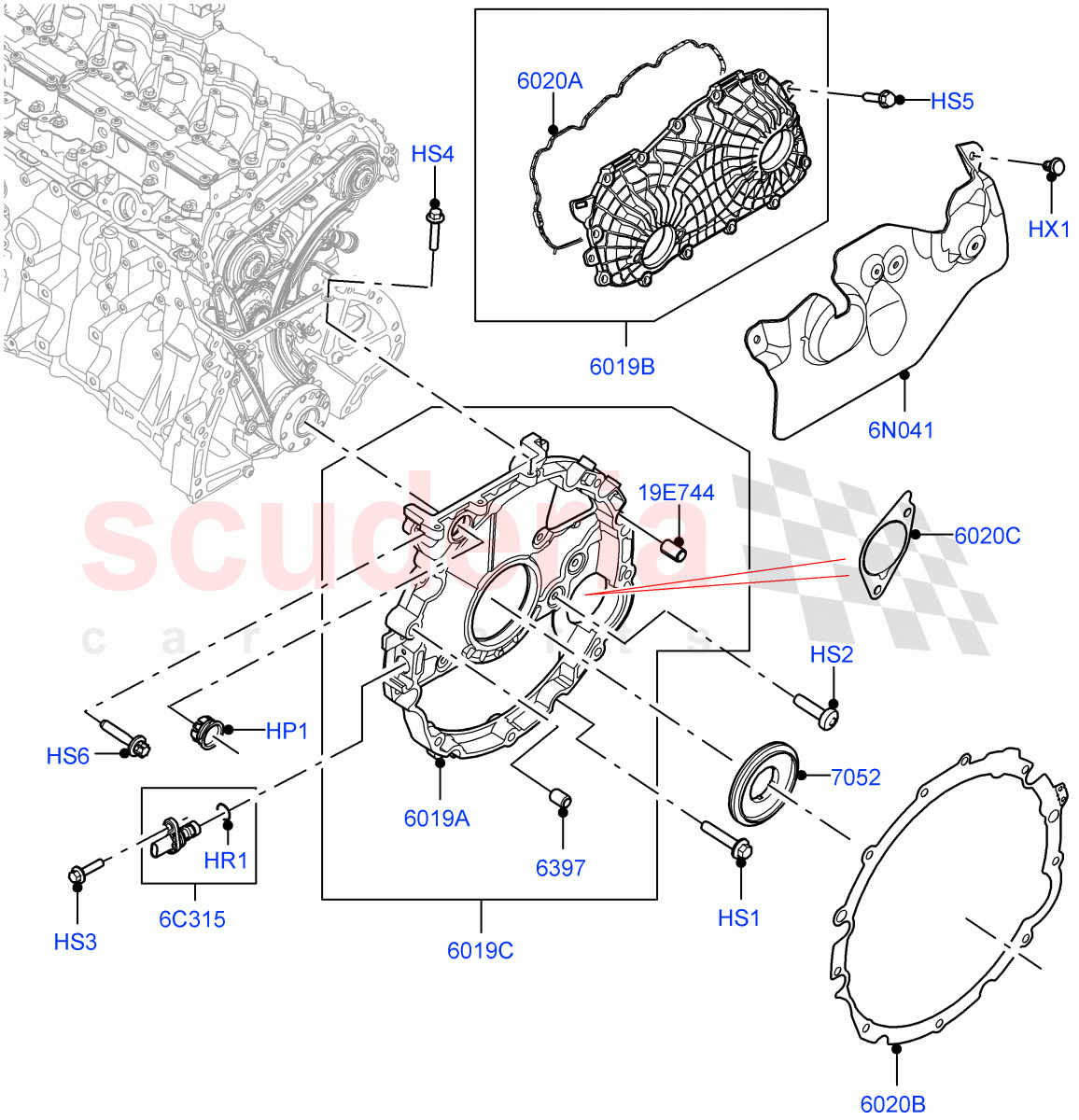

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073789	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128486	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4603182	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122697	SEAL - CRANKSHAFT OIL - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157779	PLATE - CYLINDER BLOCK REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136423	COVER - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162141	RETAINER - CRANKSHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121753	GASKET - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123925	SEAL - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123926	SEAL - STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152030	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122990	DOWEL - PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HP1	LR073789	PLUG - BLANKING	LR073789 PLUG - BLANKING Blanking, Includes O'Ring	-	1	Enquire
HR1	LR095782	O-RING	LR095782 O-RING 17.0MM, Crankshaft Position Sensor(CKP)	-	1	Enquire
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm	-	9	Enquire
HS2	LR073786	SCREW	LR073786 SCREW M8 X 30MM	-	4	Enquire
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM	-	1	Enquire
HS4	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM	-	3	Enquire
HS5	LR128486	SCREW	LR128486 SCREW M6 x 25MM	-	13	Enquire
HS6	LR158170	SCREW	LR158170 SCREW M8 x 40MM	-	1	Enquire
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator	-	2	Enquire
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS	-	1	Enquire
6N041	LR152030	INSULATOR - CYLINDER HEAD	LR152030 INSULATOR - CYLINDER HEAD Timing Chain Cover, Upper	-	1	Enquire
19E744	LR122990	DOWEL - PIN	LR122990 DOWEL - PIN	-	2	Enquire
6019A	LR157779	PLATE - CYLINDER BLOCK REAR	LR157779 PLATE - CYLINDER BLOCK REAR Lower, Timing Chain Cover	-	1	Enquire
6019B	LR136423	COVER - CAMSHAFT	LR136423 COVER - CAMSHAFT Timing Chain Cover, Upper	-	1	Enquire
6019C	LR162141	RETAINER - CRANKSHAFT OIL SEAL	LR162141 RETAINER - CRANKSHAFT OIL SEAL Includes Pin-Dowels	-	1	Enquire
6020A	LR121753	GASKET - COVER	LR121753 GASKET - COVER Timing Chain Cover, Upper	-	1	Enquire
6020B	LR123925	SEAL - TRANSMISSION	LR123925 SEAL - TRANSMISSION Transmission To Engine	-	1	Enquire
6020C	LR123926	SEAL - STARTER MOTOR	LR123926 SEAL - STARTER MOTOR Starter	-	1	Enquire
6397	4603182	DOWEL	4603182 DOWEL 15.7MM, Pin - Dowell	-	2	Enquire
7052	LR122697	SEAL - CRANKSHAFT OIL - REAR	LR122697 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear	-	1	Enquire

Cylinder Head Cover (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

Timing Gear Covers (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)
