Cylinder Head Cover (3.0L Aj20P6 Petrol High, 3.0L Aj20P6 Petrol Phev)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Cylinder Head Cover (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073781 O-RING $4.88 IN STOCK
Photo Part No Description Price (each) Stock
LR095781 O-RING $9.39 IN STOCK
Photo Part No Description Price (each) Stock
LR133542 RING - SEALING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.40 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR121254 STUD $5.29 To Order
Photo Part No Description Price (each) Stock
LR166794 Cover - Camshaft $380.46 To Order
Photo Part No Description Price (each) Stock
LR121760 GASKET - CAMSHAFT COVER $58.40 To Order
Photo Part No Description Price (each) Stock
LR121749 PIPE - OIL INLET $242.27 To Order
Photo Part No Description Price (each) Stock
LR094641 CAP - OIL FILLER $34.08 To Order
Photo Part No Description Price (each) Stock
LR124520 INSULATOR - CYLINDER HEAD $88.28 To Order
Photo Part No Description Price (each) Stock
LR074065 SENSOR - CAMSHAFT POSITION $196.51 To Order
Photo Part No Description Price (each) Stock
LR121772 INSULATOR - FUEL INJECTORS $34.75 To Order
Photo Part No Description Price (each) Stock
LR121773 INSULATOR - FUEL INJECTORS $38.63 To Order
View All

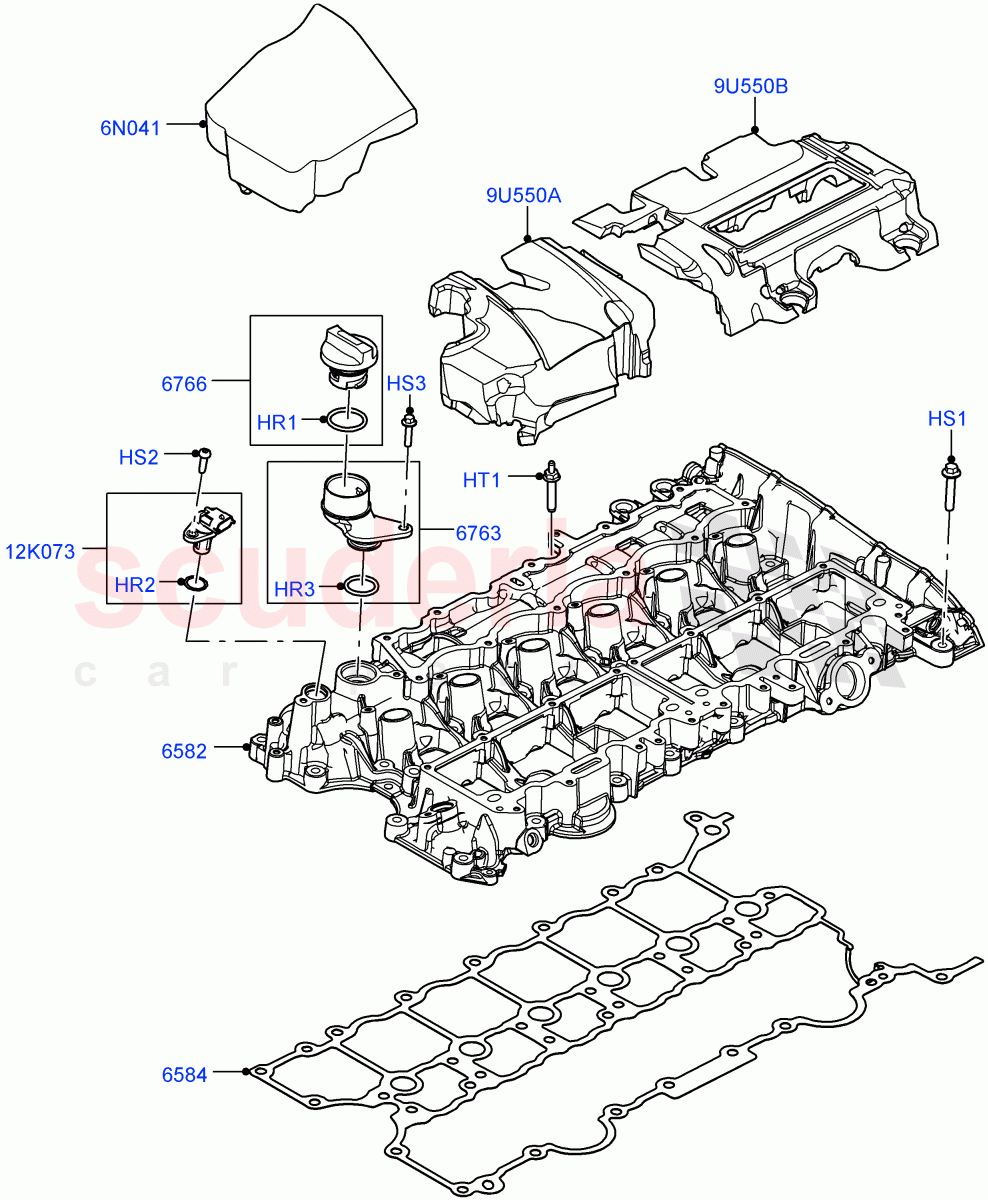

Cylinder Head Cover (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR073781
O-RING
Filler Cap,
IN STOCK 		$4.88 1
HR2 LR095781
O-RING
17.0MM, Camshaft Position Sensor
IN STOCK 		$9.39 2
HR3 LR133542
RING - SEALING
FILLER,
IN STOCK 		$4.47 1
HS1 LR073649
SCREW
Camshaft Cover, M8 x 40MM 		$2.40 27
HS2 LR073720
SCREW
Camshaft Position Sensor, M6 X 20MM 		$1.53 2
HS3 LR071842
SCREW AND WASHER - HEX HEAD
Filler Pipe, Hexagonal Head, M6 X 25MM 		$1.28 1
HT1 LR121254
STUD
Camshaft Cover, M8 X 40mm + M6 X 12mm 		$5.29 1
6N041 LR124520
INSULATOR - CYLINDER HEAD
Top 		$88.28 1
9U550A LR121772
INSULATOR - FUEL INJECTORS
Camshaft Cover, Front 		$34.75 1
9U550B LR121773
INSULATOR - FUEL INJECTORS
Camshaft Cover, Rear 		$38.63 1
12K073 LR074065
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor 		$196.51 2
6582 LR166794
Cover - Camshaft 		$380.46 1
6584 LR121760
GASKET - CAMSHAFT COVER
Camshaft Cover 		$58.40 1
6763 LR121749
PIPE - OIL INLET 		$242.27 1
6766 LR094641
CAP - OIL FILLER 		$34.08 1
