Electrical Wiring - Body And Rear (With Reverse Parking Aid, Door, Tailgate, Air Suspension) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Electrical Wiring - Body And Rear (With Reverse Parking Aid, Door, Tailgate, Air Suspension) ((V)...

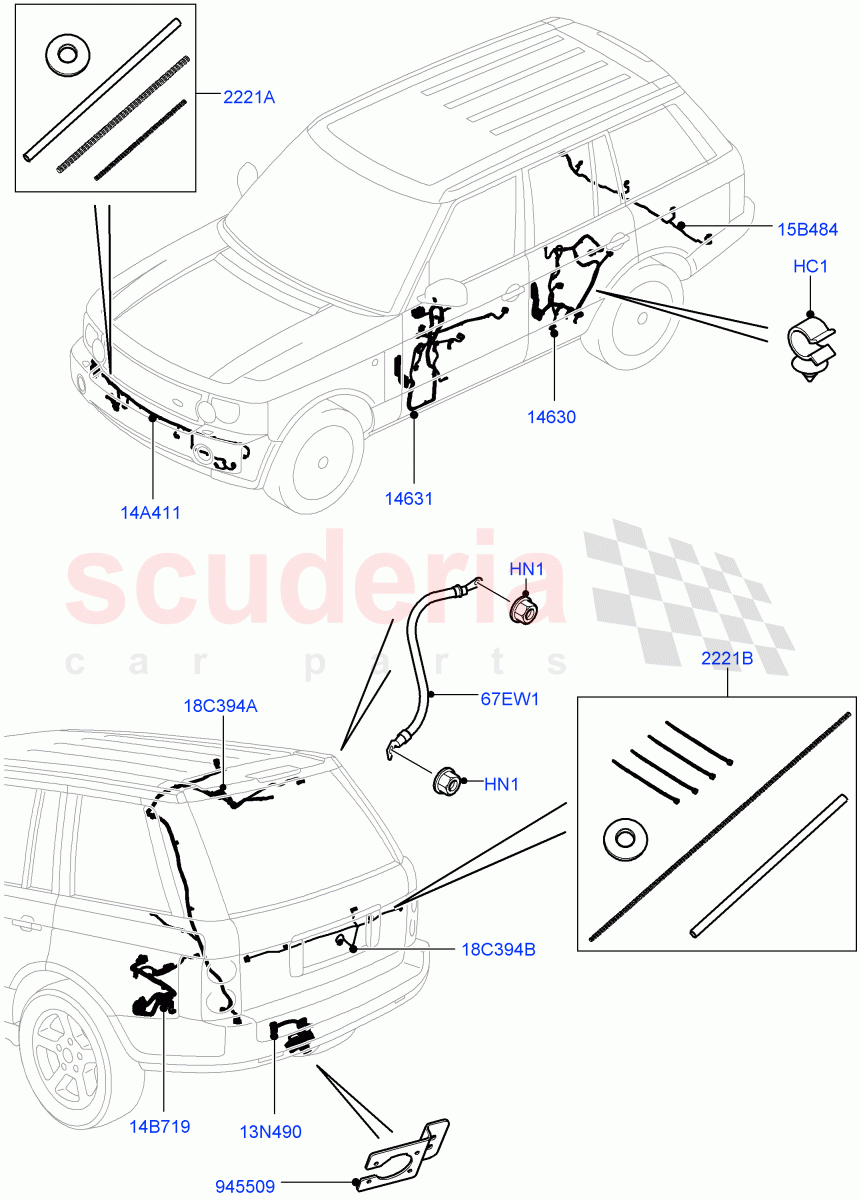

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019139	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XYH500050	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012466	WIRING - REAR DOOR	Enquire	To Order
	LR019073	WIRING - REAR DOOR	Enquire	To Order
	LR019074	WIRING - REAR DOOR	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012233	WIRE - JUMPER	Enquire	To Order
	LR012234	WIRE - JUMPER	Enquire	To Order
	LR012235	WIRE - JUMPER	Enquire	To Order

...and 23 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR060969	KIT - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060970	KIT - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YTV000030	EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012391	WIRING - TRAILER COUPLING	Enquire	To Order
	LR012392	WIRING - TRAILER COUPLING	Enquire	To Order
	LR012393	WIRING - TRAILER COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012239	WIRE - JUMPER	Enquire	To Order
	LR021869	WIRE - JUMPER	Enquire	To Order
	LR012240	WIRE - JUMPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012431	WIRING - MAIN	Enquire	To Order
	LR012432	WIRING - MAIN	Enquire	To Order
	LR012433	WIRING - MAIN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012241	WIRE - JUMPER	Enquire	To Order
	LR032271	WIRE - PARKING DISTANCE AID SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KPU500120	BRACKET - SOCKET SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012242	WIRE - JUMP - CENTRAL DOOR LOCKING	Enquire	To Order
	LR012243	WIRE - JUMP - CENTRAL DOOR LOCKING	Enquire	To Order
	LR012244	WIRE - JUMP - CENTRAL DOOR LOCKING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012246	WIRING	Enquire	To Order
	LR021833	WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR019139	CLIP	LR019139 CLIP 16 X 0.6MM / From: AA000001	-	2	Enquire
HN1	XYH500050	NUT - FLANGED	XYH500050 NUT - FLANGED For Tailgate, M5 / From: AA000001	-	2	Enquire
13N490	LR012391	WIRING - TRAILER COUPLING	LR012391 WIRING - TRAILER COUPLING With X-Bar Fixed Tow Ball - 7 Pin / Towing / From: AA000001	-	1	Enquire
13N490	LR012392	WIRING - TRAILER COUPLING	LR012392 WIRING - TRAILER COUPLING T/Tow Hth-X Bar/Fxd T-Ball 13 Pin / Towing / From: AA000001	-	1	Enquire
13N490	LR012393	WIRING - TRAILER COUPLING	LR012393 WIRING - TRAILER COUPLING With X-Bar Trailer Prep - NAS / Towing / From: AA000001	-	1	Enquire
14A411	LR012239	WIRE - JUMPER	LR012239 WIRE - JUMPER Surround Camera System / Located In Front Bumper / From: AA000001 / To: AA322563	-	1	Enquire
14A411	LR021869	WIRE - JUMPER	LR021869 WIRE - JUMPER Surround Camera System / Located In Front Bumper / From: AA322564 / To: BA349109	-	1	Enquire
14A411	LR012240	WIRE - JUMPER	LR012240 WIRE - JUMPER Rear View Camera-Fixed / For Body Coloured Bumpers, Located In Front Bumper / From: AA000001	-	1	Enquire
14A411	LR031084	WIRE - JUMPER	LR031084 WIRE - JUMPER Surround Camera System / Located In Front Bumper / From: BA349110	-	1	Enquire
14B719	LR012431	WIRING - MAIN	LR012431 WIRING - MAIN Rear Axle Open Style Differential, With Auxiliary Heater / Parking Brake / From: AA000001	-	1	Enquire
14B719	LR012432	WIRING - MAIN	LR012432 WIRING - MAIN Rear Axle Locking Differential, With Auxiliary Heater / Parking Brake / From: AA000001	-	1	Enquire
14B719	LR012433	WIRING - MAIN	LR012433 WIRING - MAIN Less Auxiliary Heater, Rear Axle Open Style Differential / Parking Brake / From: AA000001	-	1	Enquire
14B719	LR012434	WIRING - MAIN	LR012434 WIRING - MAIN Less Auxiliary Heater, Rear Axle Locking Differential / Parking Brake / From: AA000001	-	1	Enquire
15B484	LR012241	WIRE - JUMPER	LR012241 WIRE - JUMPER Located Behind Rear Bumper / From: AA000001 / To: CA366525	-	1	Enquire
15B484	LR032271	WIRE - PARKING DISTANCE AID SENSOR	LR032271 WIRE - PARKING DISTANCE AID SENSOR Located Behind Rear Bumper / From: CA366526	-	1	Enquire
18C394A	LR012242	WIRE - JUMP - CENTRAL DOOR LOCKING	LR012242 WIRE - JUMP - CENTRAL DOOR LOCKING Analogue/Digital Broadcast, Traffic Message Channel-TMC / Tailgate Upper / From: AA000001 / To: AA313068	-	1	Enquire
18C394A	LR012243	WIRE - JUMP - CENTRAL DOOR LOCKING	LR012243 WIRE - JUMP - CENTRAL DOOR LOCKING Analogue Audio Broadcast, Traffic Message Channel-TMC / Tailgate Upper / From: AA000001 / To: AA313068	-	1	Enquire
18C394A	LR012244	WIRE - JUMP - CENTRAL DOOR LOCKING	LR012244 WIRE - JUMP - CENTRAL DOOR LOCKING Less Traffic Message Channel, Sirius Radio Broadcast / Tailgate Upper / From: AA000001 / To: AA313068	-	1	Enquire
18C394A	LR012245	WIRE - JUMP - CENTRAL DOOR LOCKING	LR012245 WIRE - JUMP - CENTRAL DOOR LOCKING Analogue Audio Broadcast, Less Traffic Message Channel / Tailgate Upper / From: AA000001 / To: AA313068	-	1	Enquire
18C394A	LR019077	WIRE - JUMP - CENTRAL DOOR LOCKING	LR019077 WIRE - JUMP - CENTRAL DOOR LOCKING Digital Audio Broadcast, Vehicle Info & Com System / Tailgate Upper / From: AA313069	-	1	Enquire
18C394A	LR019078	WIRE - JUMP - CENTRAL DOOR LOCKING	LR019078 WIRE - JUMP - CENTRAL DOOR LOCKING Analogue Audio Broadcast, Traffic Message Channel-TMC / Tailgate Upper / From: AA313069	-	1	Enquire
18C394A	LR019079	WIRE - JUMP - CENTRAL DOOR LOCKING	LR019079 WIRE - JUMP - CENTRAL DOOR LOCKING HD And Sirius Radio Broadcast, Less Traffic Message Channel / Tailgate Upper / From: AA313069	-	1	Enquire
18C394A	LR019080	WIRE - JUMP - CENTRAL DOOR LOCKING	LR019080 WIRE - JUMP - CENTRAL DOOR LOCKING Analogue Audio Broadcast, Less Traffic Message Channel / Tailgate Upper / From: AA313069	-	1	Enquire
18C394B	LR012246	WIRING	LR012246 WIRING Tailgate Lower / From: AA000001 / To: AA322563	-	1	Enquire
18C394B	LR021833	WIRING	LR021833 WIRING Tailgate Lower / From: AA322564	-	1	Enquire
67EW1	YTV000030	EARTH	YTV000030 EARTH For Tailgate / From: AA000001	-	2	Enquire
2221A	LR060969	KIT - WIRING	LR060969 KIT - WIRING Front Bumper / From: CA000001	-	1	Enquire
2221B	LR060970	KIT - WIRING	LR060970 KIT - WIRING Rear Bumper / From: CA000001	-	1	Enquire
14630	LR012466	WIRING - REAR DOOR	LR012466 WIRING - REAR DOOR Rear Door / From: AA000001 / To: AA313068	-	2	Enquire
14630	LR019073	WIRING - REAR DOOR	LR019073 WIRING - REAR DOOR Less Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: AA313069 / To: AA319270	-	2	Enquire
14630	LR019074	WIRING - REAR DOOR	LR019074 WIRING - REAR DOOR With Power Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: AA313069 / To: AA319270	-	2	Enquire
14630	LR019075	WIRING - REAR DOOR	LR019075 WIRING - REAR DOOR Hi ICE Branded, Less Rear Seat Recliner / Rear Door / From: AA313069 / To: AA332707	-	2	Enquire
14630	LR019076	WIRING - REAR DOOR	LR019076 WIRING - REAR DOOR Hi ICE Branded, With Power Rear Seat Recliner / Rear Door / From: AA313069 / To: AA332707	-	2	Enquire
14630	LR021809	WIRING - REAR DOOR	LR021809 WIRING - REAR DOOR Less Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: AA319271 / To: AA332707	-	2	Enquire
14630	LR021810	WIRING - REAR DOOR	LR021810 WIRING - REAR DOOR With Power Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: AA319271 / To: AA332707	-	2	Enquire
14630	LR024283	WIRING - REAR DOOR	LR024283 WIRING - REAR DOOR Less Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: AA332708 / To: BA349422	-	2	Enquire
14630	LR024284	WIRING - REAR DOOR	LR024284 WIRING - REAR DOOR With Power Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: AA332708 / To: BA349422	-	2	Enquire
14630	LR024285	WIRING - REAR DOOR	LR024285 WIRING - REAR DOOR Less Rear Seat Recliner, With Premium Sound System / Rear Door / From: AA332708 / To: BA349422	-	2	Enquire
14630	LR024286	WIRING - REAR DOOR	LR024286 WIRING - REAR DOOR With Power Rear Seat Recliner, With Premium Sound System / Rear Door / From: AA332708 / To: BA349422	-	2	Enquire
14630	LR031035	WIRING - REAR DOOR	LR031035 WIRING - REAR DOOR Less Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: BA349423	-	2	Enquire
14630	LR031036	WIRING - REAR DOOR	LR031036 WIRING - REAR DOOR With Power Rear Seat Recliner, With Premium ICE 1200W / Rear Door / From: BA349423	-	2	Enquire
14630	LR031037	WIRING - REAR DOOR	LR031037 WIRING - REAR DOOR Hi ICE Branded, Less Rear Seat Recliner / Rear Door / From: BA349423	-	2	Enquire
14630	LR031038	WIRING - REAR DOOR	LR031038 WIRING - REAR DOOR With Power Rear Seat Recliner, With Premium Sound System / Rear Door / From: BA349423	-	2	Enquire
14631	LR012233	WIRE - JUMPER	LR012233 WIRE - JUMPER Surround Camera System, With Premium Sound System / Drivers Door / From: AA000001 / To: AA313068	-	1	Enquire
14631	LR012234	WIRE - JUMPER	LR012234 WIRE - JUMPER Rear View Camera-Fixed, With Premium Sound System / Drivers Door / From: AA000001 / To: AA313068	-	1	Enquire
14631	LR012235	WIRE - JUMPER	LR012235 WIRE - JUMPER Hi ICE Branded / Drivers Door / From: AA000001 / To: AA313068	-	1	Enquire
14631	LR012236	WIRE - JUMPER	LR012236 WIRE - JUMPER Surround Camera System, With Premium Sound System / Passengers Door / From: AA000001 / To: AA313068	-	1	Enquire
14631	LR012237	WIRE - JUMPER	LR012237 WIRE - JUMPER Rear View Camera-Fixed, With Premium Sound System / Passengers Door / From: AA000001 / To: AA313068	-	1	Enquire
14631	LR012238	WIRE - JUMPER	LR012238 WIRE - JUMPER Hi ICE Branded / Passengers Door / From: AA000001 / To: AA313068	-	1	Enquire
14631	LR019068	WIRE - JUMPER	LR019068 WIRE - JUMPER Surround Camera System, With Premium ICE 1200W / Passengers Door / From: AA313069 / To: BA349109	-	1	Enquire
14631	LR019072	WIRE - JUMPER	LR019072 WIRE - JUMPER Rear View Camera-Fixed, With Premium ICE 1200W / Passengers Door / From: AA313069	-	1	Enquire
14631	LR019069	WIRE - JUMPER	LR019069 WIRE - JUMPER Hi ICE Branded / Passengers Door / From: AA313069 / To: AA319293	-	1	Enquire
14631	LR019070	WIRE - JUMPER	LR019070 WIRE - JUMPER Rear View Camera-Fixed, With Premium Sound System / Passengers Door / From: AA313069 / To: AA319293	-	1	Enquire
14631	LR019071	WIRE - JUMPER	LR019071 WIRE - JUMPER Surround Camera System, With Premium Sound System / Passengers Door / From: AA313069 / To: AA319293	-	1	Enquire
14631	LR019063	WIRE - JUMPER	LR019063 WIRE - JUMPER Surround Camera System, With Premium ICE 1200W / Drivers Door / From: AA313069 / To: BA349109	-	1	Enquire
14631	LR019064	WIRE - JUMPER	LR019064 WIRE - JUMPER Rear View Camera-Fixed, With Premium ICE 1200W / Drivers Door / From: AA313069	-	1	Enquire
14631	LR019065	WIRE - JUMPER	LR019065 WIRE - JUMPER Hi ICE Branded / Drivers Door / From: AA313069 / To: AA319293	-	1	Enquire
14631	LR019066	WIRE - JUMPER	LR019066 WIRE - JUMPER Rear View Camera-Fixed, With Premium Sound System / Drivers Door / From: AA313069 / To: AA319293	-	1	Enquire
14631	LR019067	WIRE - JUMPER	LR019067 WIRE - JUMPER Surround Camera System, With Premium Sound System / Drivers Door / From: AA313069 / To: AA319293	-	1	Enquire
14631	LR021811	WIRE - JUMPER	LR021811 WIRE - JUMPER Hi ICE Branded / Passengers Door / From: AA319294	-	1	Enquire
14631	LR021812	WIRE - JUMPER	LR021812 WIRE - JUMPER Rear View Camera-Fixed, With Premium Sound System / Passengers Door / From: AA319294	-	1	Enquire
14631	LR021813	WIRE - JUMPER	LR021813 WIRE - JUMPER Surround Camera System, With Premium Sound System / Passengers Door / From: AA319294 / To: BA349109	-	1	Enquire
14631	LR021814	WIRE - JUMPER	LR021814 WIRE - JUMPER Hi ICE Branded / Drivers Door / From: AA319294	-	1	Enquire
14631	LR021815	WIRE - JUMPER	LR021815 WIRE - JUMPER Rear View Camera-Fixed, With Premium Sound System / Drivers Door / From: AA319294	-	1	Enquire
14631	LR021816	WIRE - JUMPER	LR021816 WIRE - JUMPER Surround Camera System, With Premium Sound System / Drivers Door / From: AA319294 / To: BA349109	-	1	Enquire
14631	LR031089	WIRE - JUMPER	LR031089 WIRE - JUMPER Surround Camera System, With Premium ICE 1200W / Passengers Door / From: BA349110	-	1	Enquire
14631	LR031091	WIRE - JUMPER	LR031091 WIRE - JUMPER Surround Camera System, With Premium Sound System / Passengers Door / From: BA349110	-	1	Enquire
14631	LR031094	WIRE - JUMPER	LR031094 WIRE - JUMPER Surround Camera System, With Premium ICE 1200W / Drivers Door / From: BA349110	-	1	Enquire
14631	LR031096	WIRE - JUMPER	LR031096 WIRE - JUMPER Surround Camera System, With Premium Sound System / Drivers Door / From: BA349110	-	1	Enquire
945509	KPU500120	BRACKET - SOCKET SUPPORT	KPU500120 BRACKET - SOCKET SUPPORT With X-Bar Trailer Prep - NAS / From: CA000001	-	1	Enquire
