Heater & Air Conditioning Controls ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater & Air Conditioning Controls ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014151 CLOCK - INSTRUMENT PANEL Enquire To Order
LR019209 CLOCK Enquire To Order
LR020140 CLOCK Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR022594 HEATER CONTROL Enquire To Order
LR021908 HEATER CONTROL Enquire To Order
LR028525 HEATER CONTROL Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012626 CONTROL Enquire To Order
LR012627 CONTROL Enquire To Order
LR012629 CONTROL Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012367 COVER - INSTRUMENT PANEL Enquire To Order
View All

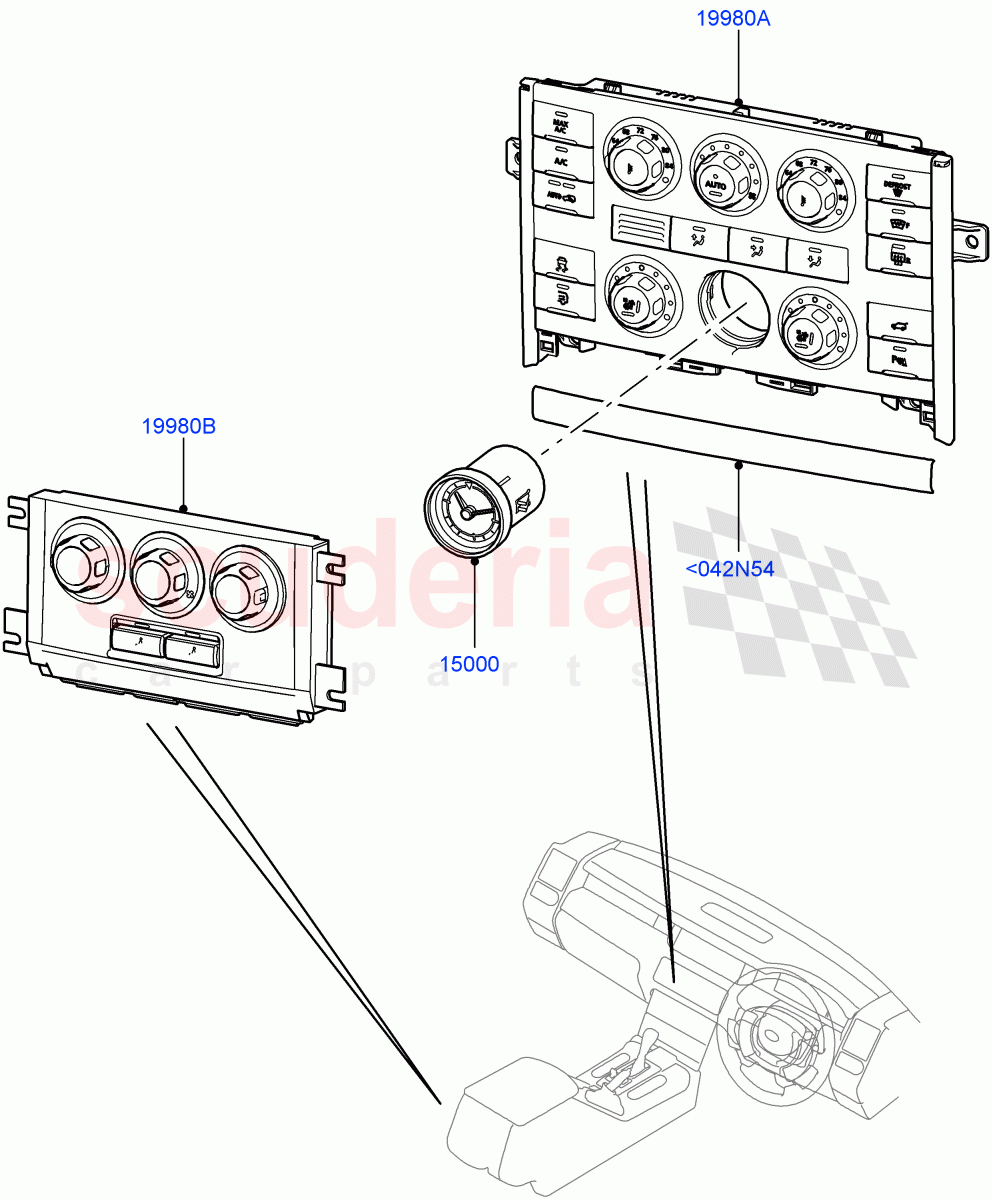

Heater & Air Conditioning Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<042N54 LR012367
COVER - INSTRUMENT PANEL
Meteor Grey / From: AA000001 		- 1 Enquire
15000 LR014151
CLOCK - INSTRUMENT PANEL
From: AA000001 / To: AA311210 		- 1 Enquire
15000 LR019209
CLOCK
From: AA311211 / To: AA312210 		- 1 Enquire
15000 LR020140
CLOCK
From: AA312211 / To: AA313210 		- 1 Enquire
15000 LR020154
CLOCK
From: AA313211 / To: AA326702 		- 1 Enquire
15000 LR023521
CLOCK
From: AA326703 / To: CA391589 		- 1 Enquire
15000 LR050176
CLOCK - INSTRUMENT PANEL
From: CA391590 		- 1 Enquire
19980A LR022594
HEATER CONTROL
Air Temperature Gauge - Fahrenheit, Heated Seats - Drivers/Passengers / From: AA000001 / To: BA338873 		- 1 Enquire
19980A LR021908
HEATER CONTROL
Air Temperature Gauge - Centigrade, With Heated Seats - Front/Rear / From: AA000001 / To: AA325724 		- 1 Enquire
19980A LR028525
HEATER CONTROL
Air Temperature Gauge - Centigrade, With Heated Seats - Front/Rear / From: AA325725 		- 1 Enquire
19980A LR028524
HEATER CONTROL
Air Temperature Gauge - Fahrenheit, With Heated Seats - Front/Rear / From: BA338874 		- 1 Enquire
19980A LR028523
HEATER CONTROL
Air Temperature Gauge - Centigrade, Heated/Cooled Front/Rear Seat / From: AA000001 		- 1 Enquire
19980A LR028522
HEATER CONTROL
Air Temperature Gauge - Fahrenheit, Heated/Cooled Front/Rear Seat / From: AA000001 		- 1 Enquire
19980B LR012626
CONTROL
Air Temperature Gauge - Centigrade, Heated/Cooled Front/Rear Seat, Premium Air Conditioning-Front/Rear / From: AA000001 		- 1 Enquire
19980B LR012627
CONTROL
Air Temperature Gauge - Centigrade, Heated/Cooled Front - Heated Rear, Premium Air Conditioning-Front/Rear / From: AA000001 		- 1 Enquire
19980B LR012629
CONTROL
Air Temperature Gauge - Fahrenheit, Heated Seats - Drivers/Passengers, Premium Air Conditioning-Front/Rear / From: AA000001 		- 1 Enquire
19980B LR012632
CONTROL
Air Temperature Gauge - Fahrenheit, Premium Air Conditioning-Front/Rear, With Heated Seats - Front/Rear / From: AA000001 		- 1 Enquire
19980B LR012633
CONTROL
With Front Comfort Air Con (IHKA), With Heated Seats - Front/Rear / From: AA000001 		- 1 Enquire
19980B LR012857
SWITCH
Heated/Cooled Front/Rear Seat, With Front Comfort Air Con (IHKA) / From: AA000001 		- 1 Enquire
