Rear Springs And Shock Absorbers (Less Adaptive Damping) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Rear Springs And Shock Absorbers (Less Adaptive Damping) ((V) FROMAA000001)

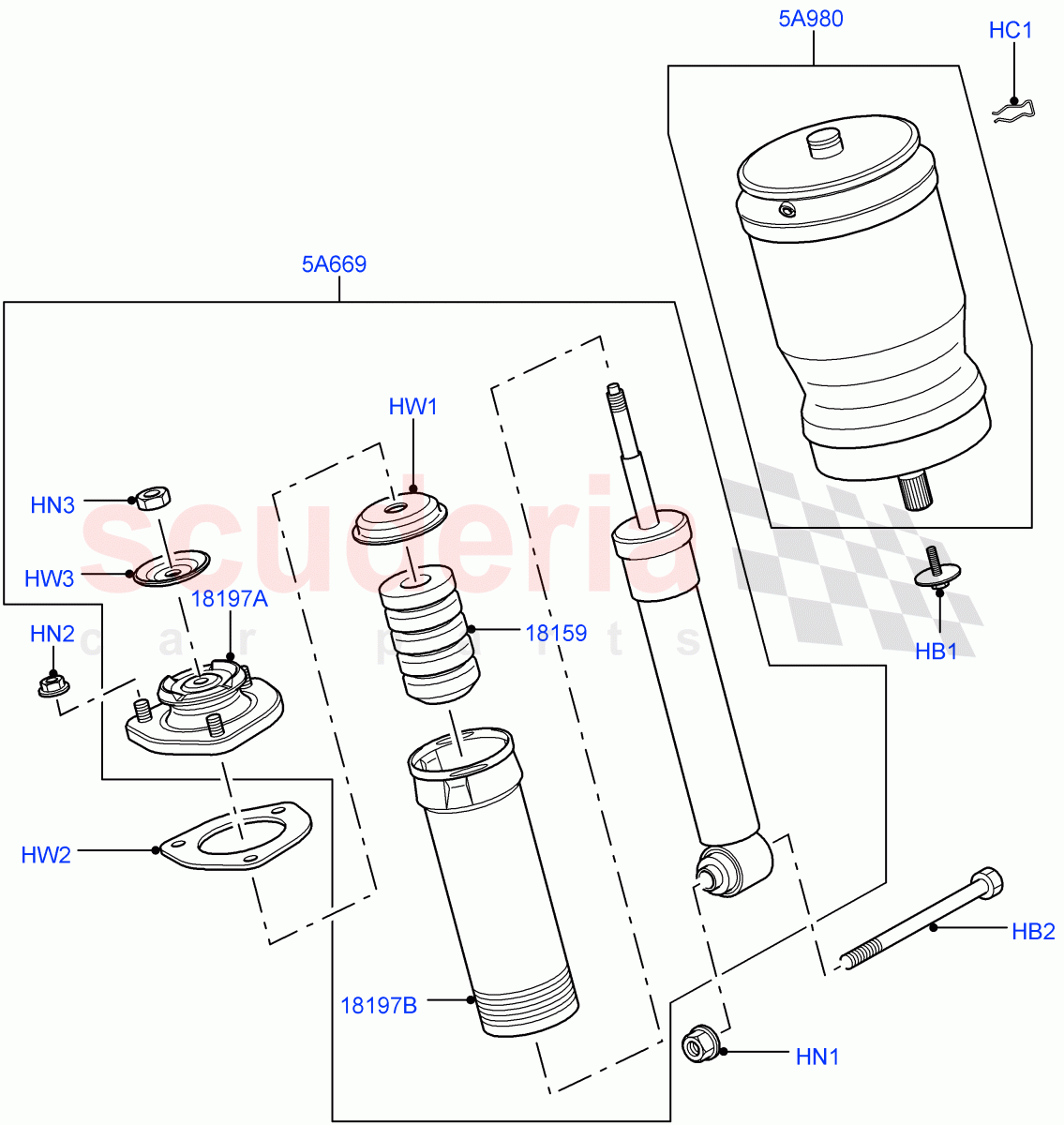

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYP000121	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP000111	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYC500220	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH501100	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH000021	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYH100271	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPK000010	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF000040	WASHER - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPY000050	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPC000030	STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPD500940	DAMPER	Enquire	To Order
	RPD500760	DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RKB500082	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015096	BRACKET - SUSPENSION MOUNTING	Enquire	To Order
	LR019406	BRACKET - SUSPENSION MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPG000020	INSULATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYP000121	BOLT	RYP000121 BOLT M7 X 25MM, Screw And Washer / From: AA000001	-	2	Enquire
HB2	RYP000111	SCREW	RYP000111 SCREW M14 X 215MM / From: AA000001	-	2	Enquire
HC1	RYC500220	CLIP	RYC500220 CLIP Air Spring / From: AA000001	-	2	Enquire
HN1	RYH501100	NUT - FLANGED	RYH501100 NUT - FLANGED HEX Flange, M14 X 1.5 / From: AA000001	-	2	Enquire
HN2	RYH000021	NUT - FLANGED	RYH000021 NUT - FLANGED HEX, M10 / From: AA000001	-	6	Enquire
HN3	QYH100271	NUT - FLANGED	QYH100271 NUT - FLANGED HEX, M12 / From: AA000001	-	2	Enquire
HW1	RPK000010	WASHER	RPK000010 WASHER Damper / From: AA000001	-	2	Enquire
HW2	RYF000040	WASHER - SEALING	RYF000040 WASHER - SEALING Rear Suspension / From: AA000001	-	2	Enquire
HW3	RPY000050	WASHER	RPY000050 WASHER Rear Suspension / From: AA000001	-	2	Enquire
5A669	RPD500940	DAMPER	RPD500940 DAMPER 5.0L OHC SGDI NA V8 Petrol - AJ133 / Complete Assembly / From: AA000001	-	2	Enquire
5A669	RPD500760	DAMPER	RPD500760 DAMPER 3.6L V8 32V DOHC EFi Diesel Lion / Complete Assembly / From: AA000001	-	2	Enquire
5A980	RKB500082	SPRING	RKB500082 SPRING From: AA000001	-	2	Enquire
18159	RPC000030	STOP	RPC000030 STOP From: AA000001	-	2	Enquire
18197A	LR015096	BRACKET - SUSPENSION MOUNTING	LR015096 BRACKET - SUSPENSION MOUNTING Mounting Bracket / From: AA000001 / To: AA316543	-	2	Enquire
18197A	LR019406	BRACKET - SUSPENSION MOUNTING	LR019406 BRACKET - SUSPENSION MOUNTING Mounting Bracket / From: AA316544	-	2	Enquire
18197B	RPG000020	INSULATOR	RPG000020 INSULATOR Dust Protection / From: AA000001	-	2	Enquire
