Air Suspension Compressor And Lines (Air Suspension Lines) (Less Armoured) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Air Suspension Compressor And Lines (Air Suspension Lines) (Less Armoured) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYC000130 CLIP $2.85 To Order
Photo Part No Description Price (each) Stock
RYC000110 CLIP $12.32 To Order
Photo Part No Description Price (each) Stock
RYC000050 CLIP $1.09 To Order
Photo Part No Description Price (each) Stock
RYC000020 CLIP $1.59 To Order
Photo Part No Description Price (each) Stock
SGK000080 CLIP $0.63 To Order
Photo Part No Description Price (each) Stock
LR019610 CLIP $1.05 To Order
Photo Part No Description Price (each) Stock
LR025056 CLIP $0.34 To Order
Photo Part No Description Price (each) Stock
LR025053 CLIP $2.63 To Order
Photo Part No Description Price (each) Stock
YYC000060 CLIP $0.74 To Order
Photo Part No Description Price (each) Stock
YYD000010 STRAP - CABLE $1.16 To Order
Photo Part No Description Price (each) Stock
LR044836 CONNECTOR - VALVE BLOCK TO PIPE $23.10 IN STOCK
LR044836 CONNECTOR - VALVE BLOCK TO PIPE $23.10 IN STOCK
Photo Part No Description Price (each) Stock
KVV500040 GROMMET - VALVE $5.65 IN STOCK
Photo Part No Description Price (each) Stock
AYG100230 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
RQH500011 SENSOR - AIR SUSPENSION $115.77 To Order
Photo Part No Description Price (each) Stock
RVH500060 VALVE - LEVELLING $290.11 IN STOCK
Photo Part No Description Price (each) Stock
RVH500050 VALVE - LEVELLING $270.93 To Order
Photo Part No Description Price (each) Stock
RVH500070 VALVE - LEVELLING $277.00 To Order
Photo Part No Description Price (each) Stock
LR015100 PIPE - AIR INLET $34.36 To Order
LR019426 PIPE - AIR INLET $57.39 IN STOCK
Photo Part No Description Price (each) Stock
LR018445 PIPE - AIR INLET $39.93 IN STOCK
Photo Part No Description Price (each) Stock
LR018447 PIPE - AIR INLET $50.42 To Order
Photo Part No Description Price (each) Stock
LR018448 PIPE $50.42 To Order
Photo Part No Description Price (each) Stock
LR018434 PIPE - AIR INLET $85.35 To Order
Photo Part No Description Price (each) Stock
RQC500020 CONNECTOR $11.06 To Order
Photo Part No Description Price (each) Stock
RQN500080 RESERVOIR - COMPRESSED AIR $273.59 To Order
Photo Part No Description Price (each) Stock
LR023171 CLIP $0.58 To Order
View All

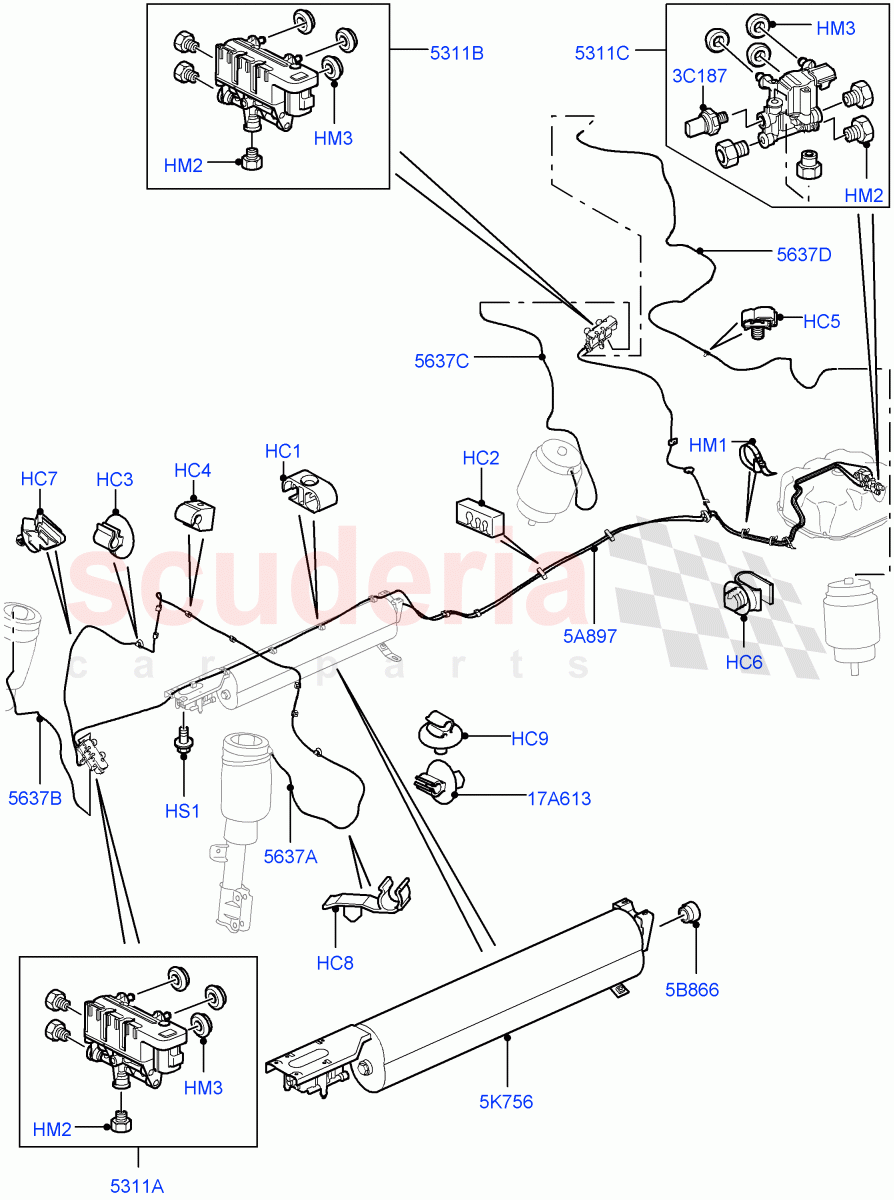

Air Suspension Compressor And Lines (Air Suspension Lines) (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 RYC000130
CLIP
Double / From: AA000001 		$2.85 3
HC2 RYC000110
CLIP
Triple / From: AA000001 		$12.32 2
HC3 RYC000050
CLIP
Single / From: AA000001 		$1.09 -
HC4 RYC000020
CLIP
Single / From: AA000001 		$1.59 -
HC5 SGK000080
CLIP
Single / From: AA000001 		$0.63 10
HC6 LR019610
CLIP
Single / From: AA000001 / To: AA333945 		$1.05 1
HC7 LR025056
CLIP
Single / From: AA333946 		$0.34 1
HC8 LR025053
CLIP
RHD / Single / From: AA333946 		$2.63 1
HC9 YYC000060
CLIP
Single / From: BA355616 		$0.74 1
HM1 YYD000010
STRAP - CABLE
Cable Tie / From: AA000001 		$1.16 -
HM2 LR044836
CONNECTOR - VALVE BLOCK TO PIPE
6MM, Air Tube Connector / From: AA000001 / To: AA999999
IN STOCK 		$23.10 -
HM2 LR044836
CONNECTOR - VALVE BLOCK TO PIPE
6MM, Connector / From: BA000001
IN STOCK 		$23.10 -
HM3 KVV500040
GROMMET - VALVE
Grommet / From: AA000001
IN STOCK 		$5.65 3
HS1 AYG100230
SCREW
M8 X 16MM / From: AA000001 		$0.63 2
3C187 RQH500011
SENSOR - AIR SUSPENSION
Pressure / From: AA000001 		$115.77 1
5A897 LR018434
PIPE - AIR INLET
From: AA000001 		$85.35 1
5B866 RQC500020
CONNECTOR
In Tank / From: AA000001 		$11.06 1
5K756 RQN500080
RESERVOIR - COMPRESSED AIR
From: AA000001 		$273.59 1
17A613 LR023171
CLIP
From: AA333946 / To: BA355615 		$0.58 2
5311A RVH500060
VALVE - LEVELLING
Front / From: AA000001
IN STOCK 		$290.11 1
5311B RVH500050
VALVE - LEVELLING
Rear / From: AA000001 		$270.93 1
5311C RVH500070
VALVE - LEVELLING
Rear / From: AA000001 		$277.00 1
5637A LR015100
PIPE - AIR INLET
Axle Valve To Front LH Spring / From: AA000001 / To: AA323986 		$34.36 1
5637A LR019426
PIPE - AIR INLET
Axle Valve To Front LH Spring / From: AA323987
IN STOCK 		$57.39 1
5637B LR018445
PIPE - AIR INLET
Axle Valve To Front RH Spring / From: AA000001
IN STOCK 		$39.93 1
5637C LR018447
PIPE - AIR INLET
Axle Valve To Rear RH Spring / From: AA000001 		$50.42 1
5637D LR018448
PIPE
Axle Valve To Rear LH Spring / From: AA000001 		$50.42 1
