Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Fuel Tank & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WJC000100 CLIP - HOSE $4.47 To Order
Photo Part No Description Price (each) Stock
WYC000080 CLIP - HOSE $4.40 To Order
Photo Part No Description Price (each) Stock
WYC000070 CLAMP $1.67 To Order
Photo Part No Description Price (each) Stock
LR005052 CLAMP - HOSE $2.47 To Order
Photo Part No Description Price (each) Stock
WYF000020 SPACER $3.55 To Order
Photo Part No Description Price (each) Stock
WYQ000010 RIVET - PLASTIC $5.62 IN STOCK
Photo Part No Description Price (each) Stock
WYA000010 GROMMET $1.62 To Order
Photo Part No Description Price (each) Stock
WYD000020 GROMMET $3.78 To Order
Photo Part No Description Price (each) Stock
WYH000020 NUT - PLASTIC - SPECIAL $0.62 IN STOCK
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 IN STOCK
Photo Part No Description Price (each) Stock
RYP000330 SCREW $1.22 To Order
LR022497 SCREW $1.54 To Order
Photo Part No Description Price (each) Stock
RYG501170 SCREW AND WASHER $0.58 To Order
Photo Part No Description Price (each) Stock
WYP000090 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
WYP000060 SCREW $2.11 To Order
Photo Part No Description Price (each) Stock
RYP000250 SCREW $0.90 To Order
Photo Part No Description Price (each) Stock
9952119 CLAMP $3.53 To Order
Photo Part No Description Price (each) Stock
WFE500693 TANK - FUEL $854.46 To Order
WFE501350 TANK - FUEL $867.27 To Order
LR034153 TANK - FUEL $1,198.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
202123529 CAP - FUEL TANK FILLER $52.23 To Order
LR011468 CAP - FILLER $52.23 To Order
Photo Part No Description Price (each) Stock
WMJ500210 PIPE - FUEL FILLER $206.00 To Order
WMJ500220 PIPE - FUEL FILLER $178.69 To Order
Photo Part No Description Price (each) Stock
WJH500050 HOSE - FILLER PIPE $91.90 To Order
Photo Part No Description Price (each) Stock
WMK000010 GROMMET - FILLER PIPE $7.83 To Order
Photo Part No Description Price (each) Stock
WFS500010 STRAP - FUEL TANK $63.31 To Order
WFS500020 STRAP - FUEL TANK $63.31 To Order
Photo Part No Description Price (each) Stock
WGQ500020 GASKET - FUEL TANK COVER $24.16 To Order
Photo Part No Description Price (each) Stock
WGC000020 COVER - FUEL SENDER $28.96 To Order
Photo Part No Description Price (each) Stock
FWA500230 PAD $6.50 To Order
LR035088 FOAM PAD - ENERGY ABSORBING $6.27 To Order
Photo Part No Description Price (each) Stock
WFK000010 STRIP - RUBBER $2.98 To Order
Photo Part No Description Price (each) Stock
WFK000020 STRIP - RUBBER $2.98 To Order
Photo Part No Description Price (each) Stock
LR014995 COVER - FUEL SENDER $168.54 To Order
LR043154 COVER - FUEL SENDER $168.47 To Order
Photo Part No Description Price (each) Stock
WJL500042 SEPARATOR - FUEL VAPOUR $251.25 To Order
WJL500052 SEPARATOR - FUEL VAPOUR $238.91 To Order
Photo Part No Description Price (each) Stock
ESR3808 RING - LOCK $22.60 To Order
Photo Part No Description Price (each) Stock
WTB500240 RESERVOIR $120.78 To Order
WTB500250 RESERVOIR - FUEL VAPOUR SYSTEM $97.19 To Order
Photo Part No Description Price (each) Stock
WYH000080 BRACKET $16.73 To Order
Photo Part No Description Price (each) Stock
WLH000020 HOSE - FUEL $8.08 To Order
Photo Part No Description Price (each) Stock
SYF100290L SLEEVE $3.63 To Order
Photo Part No Description Price (each) Stock
ESR3807 ADAPTOR $8.06 To Order
Photo Part No Description Price (each) Stock
WTG500040 PUMP - LEAK DETECTION $278.98 To Order
Photo Part No Description Price (each) Stock
LR174757 VALVE - CONTROL $187.80 To Order
View All

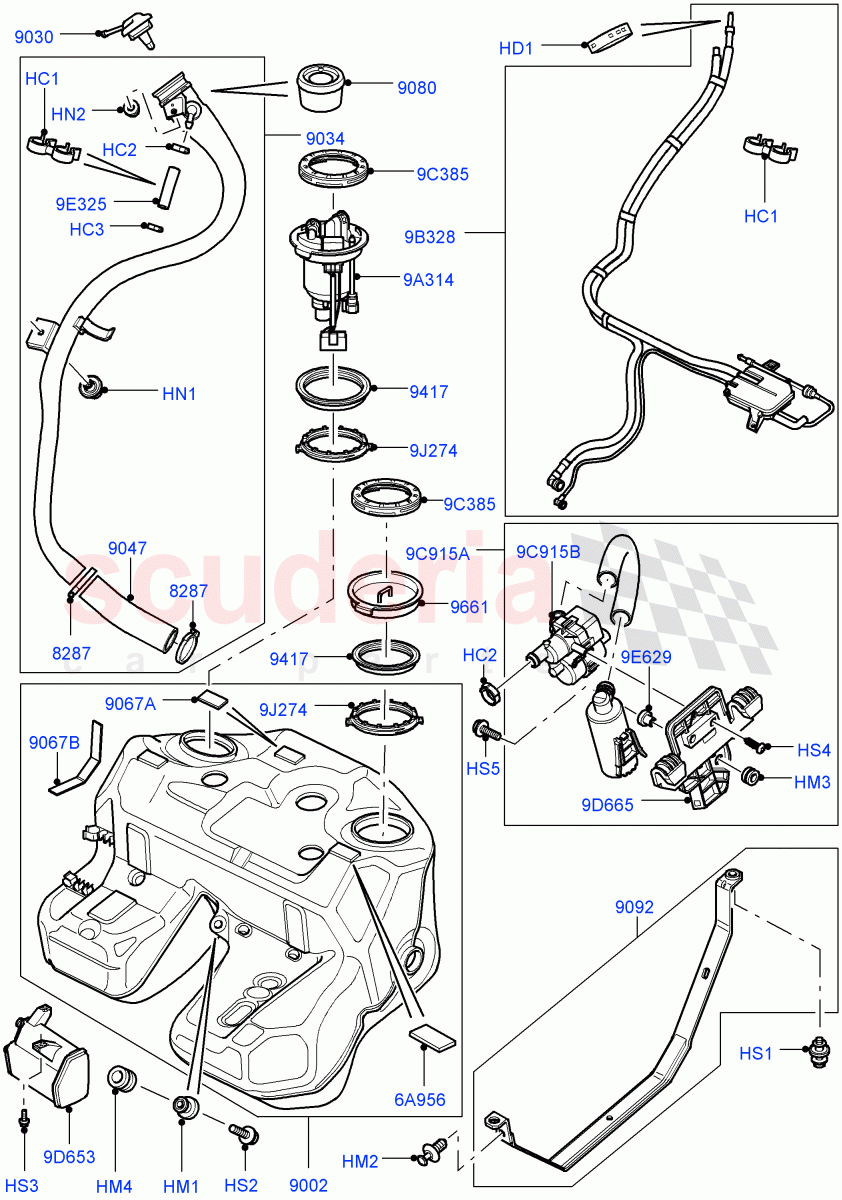

Fuel Tank & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WJC000100
CLIP - HOSE
(-)"CDN/MEX/USA" / Double / From: AA000001 		$4.47 1
HC2 WYC000080
CLIP - HOSE
(-)"CDN/MEX/USA" / 27MM / From: AA000001 		$4.40 2
HC3 WYC000070
CLAMP
(+)"CDN/MEX/USA" / CLAMP - HOSE RETAINING / From: AA000001 		$1.67 1
HD1 LR005052
CLAMP - HOSE
(+)"CDN/MEX/USA" / 20.9-24.1, Clamp / From: AA000001 		$2.47 1
HM1 WYF000020
SPACER
Spacer / From: AA000001 		$3.55 1
HM2 WYQ000010
RIVET - PLASTIC
Fuel Tank Strap, Plastic, Rivet Type / From: AA000001
IN STOCK 		$5.62 4
HM3 WYA000010
GROMMET
(+)"CDN/MEX/USA" / Bracket, Filter, Grommet / From: AA000001 		$1.62 1
HM4 WYD000020
GROMMET
Fuel Tank / From: AA000001 		$3.78 1
HN1 WYH000020
NUT - PLASTIC - SPECIAL
Plastic / From: AA000001
IN STOCK 		$0.62 1
HN2 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: AA000001
IN STOCK 		$2.97 1
HS1 RYP000330
SCREW
M8 X 30MM / From: AA000001 / To: BA765431 		$1.22 4
HS1 LR022497
SCREW
M8 X 30MM / From: BA765432 		$1.54 4
HS2 RYG501170
SCREW AND WASHER
Hexagonal Head, M8 X 30MM / From: AA000001 		$0.58 4
HS3 WYP000090
SCREW
M8 / From: AA000001 		$1.16 2
HS4 WYP000060
SCREW
(+)"CDN/MEX/USA" / M5 / From: AA000001 		$2.11 1
HS5 RYP000250
SCREW
M6 X 25MM / From: AA000001 		$0.90 1
6A956 FWA500230
PAD
Fuel Tank / From: AA000001 / To: CA361333 		$6.50 2
6A956 LR035088
FOAM PAD - ENERGY ABSORBING
Fuel Tank / From: CA361334 		$6.27 2
9A314 LR014995
COVER - FUEL SENDER
Includes Fuel Filter / From: AA000001 / To: CA384465 		$168.54 1
9A314 LR043154
COVER - FUEL SENDER
Includes Fuel Filter / From: CA384466 		$168.47 1
9B328 WJL500042
SEPARATOR - FUEL VAPOUR
(+)"CDN/MEX/USA" / From: AA000001 		$251.25 1
9B328 WJL500052
SEPARATOR - FUEL VAPOUR
(-)"CDN/MEX/USA" / From: AA000001 		$238.91 1
9C385 ESR3808
RING - LOCK
Fuel Tank Sender / From: AA000001 		$22.60 2
9C915A WTG500040
PUMP - LEAK DETECTION
(+)"CDN/MEX/USA" / Vapor Valve / From: AA000001 		$278.98 1
9C915B LR174757
VALVE - CONTROL
(+)"CDN/MEX/USA" / Pump - Diagnostic Monitoring Tank Leakage / From: AA000001 		$187.80 1
9D653 WTB500240
RESERVOIR
(+)"CDN/MEX/USA" / Carbon / From: AA000001 		$120.78 1
9D653 WTB500250
RESERVOIR - FUEL VAPOUR SYSTEM
(-)"CDN/MEX/USA" / Carbon, Fuel Vapour System / From: AA000001 		$97.19 1
9D665 WYH000080
BRACKET
(+)"CDN/MEX/USA" / Filter / From: AA000001 		$16.73 1
9E325 WLH000020
HOSE - FUEL
(-)"CDN/MEX/USA" / From: AA000001 		$8.08 1
9E629 SYF100290L
SLEEVE
(+)"CDN/MEX/USA" / Breather / From: AA000001 		$3.63 1
9J274 ESR3807
ADAPTOR
Retaining Ring / From: AA000001 		$8.06 2
8287 9952119
CLAMP
FILLER, For Fuel Tube / From: AA000001 		$3.53 2
9002 WFE500693
TANK - FUEL
(-)"CDN/MEX/USA" / From: AA000001 / To: CA361289 		$854.46 1
9002 WFE501350
TANK - FUEL
(+)"CDN/MEX/USA" / From: AA000001 / To: CA361289 		$867.27 1
9002 LR034153
TANK - FUEL
(+)"CDN/MEX/USA" / From: CA361290 		$1,198.17 1
9002 LR034154
TANK - FUEL
(-)"CDN/MEX/USA" / From: CA361290 		$1,198.17 1
9030 202123529
CAP - FUEL TANK FILLER
(-)"CDN/MEX/USA" / From: AA000001 		$52.23 1
9030 LR011468
CAP - FILLER
(+)"CDN/MEX/USA" / From: AA000001 		$52.23 1
9034 WMJ500210
PIPE - FUEL FILLER
(+)"CDN/MEX/USA" / From: AA000001 		$206.00 1
9034 WMJ500220
PIPE - FUEL FILLER
(-)"CDN/MEX/USA" / From: AA000001 		$178.69 1
9047 WJH500050
HOSE - FILLER PIPE
From: AA000001 		$91.90 1
9067A WFK000010
STRIP - RUBBER
Small / From: AA000001 		$2.98 4
9067B WFK000020
STRIP - RUBBER
Large / From: AA000001 		$2.98 2
9080 WMK000010
GROMMET - FILLER PIPE
From: AA000001 		$7.83 1
9092 WFS500010
STRAP - FUEL TANK
RH / From: AA000001 		$63.31 1
9092 WFS500020
STRAP - FUEL TANK
LH / From: AA000001 		$63.31 1
9417 WGQ500020
GASKET - FUEL TANK COVER
Fuel Tank Sender / From: AA000001 		$24.16 2
9661 WGC000020
COVER - FUEL SENDER
Fuel Tank / From: AA000001 		$28.96 1
