Fuel Lines (Rear Centre) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Fuel Lines (Rear Centre) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR018278 PIPE - FUEL $68.45 To Order
Photo Part No Description Price (each) Stock
MAP500300 TUBE $113.92 To Order
LR031848 TUBE - FUEL $110.15 To Order
Photo Part No Description Price (each) Stock
LR017966 TUBE $119.40 To Order
View All

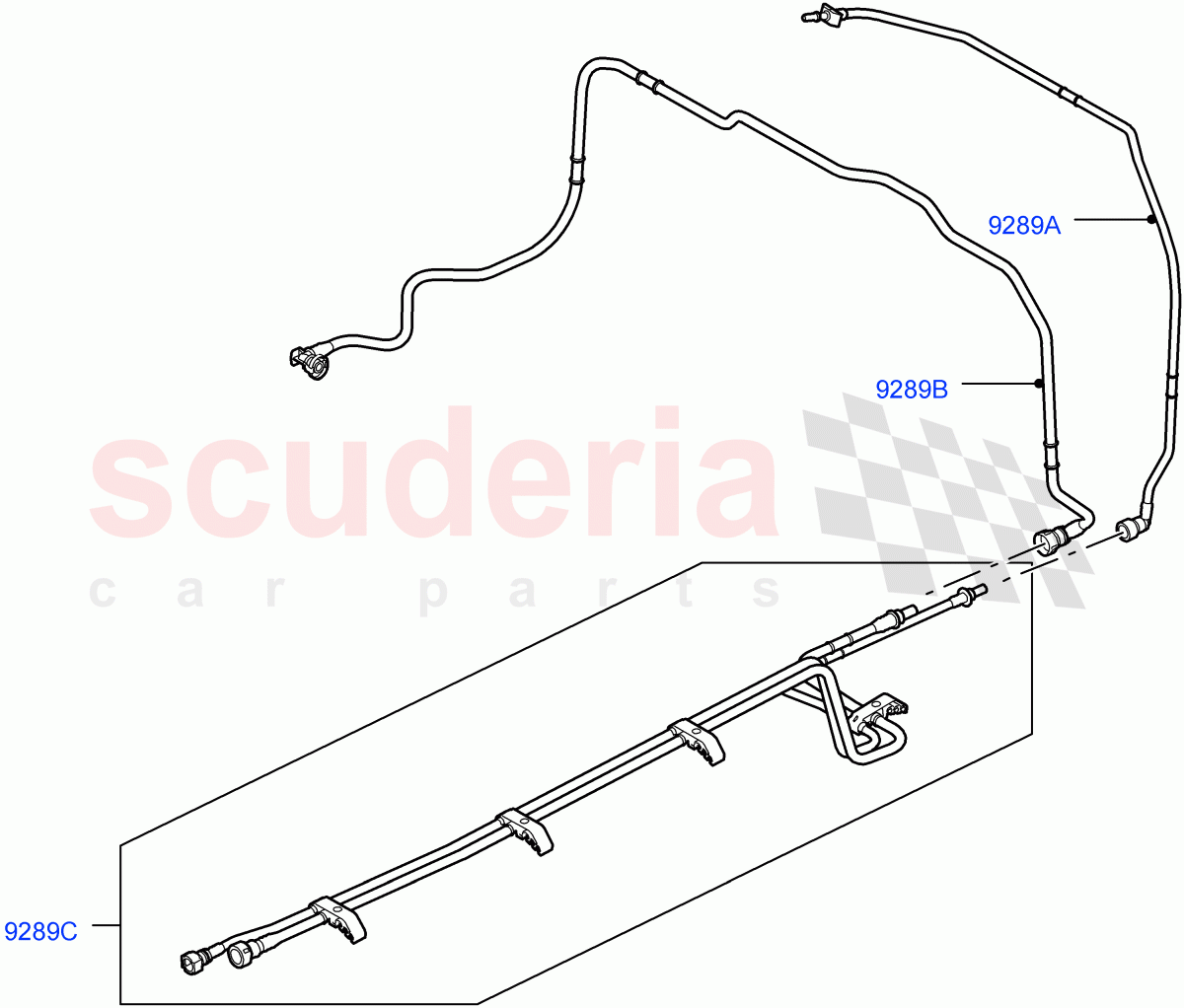

Fuel Lines (Rear Centre) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9289A LR018278
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes / From: AA000001 		$68.45 1
9289B MAP500300
TUBE
From Reservoir Assy To Under Floor Pipes, Vapour Line / From: AA000001 / To: BA354274 		$113.92 1
9289B LR031848
TUBE - FUEL
From Reservoir Assy To Under Floor Pipes, Vapour Line / From: BA354275 		$110.15 1
9289C LR017966
TUBE
Feed, Under Floor, Vapour Line / From: AA000001 		$119.40 1
