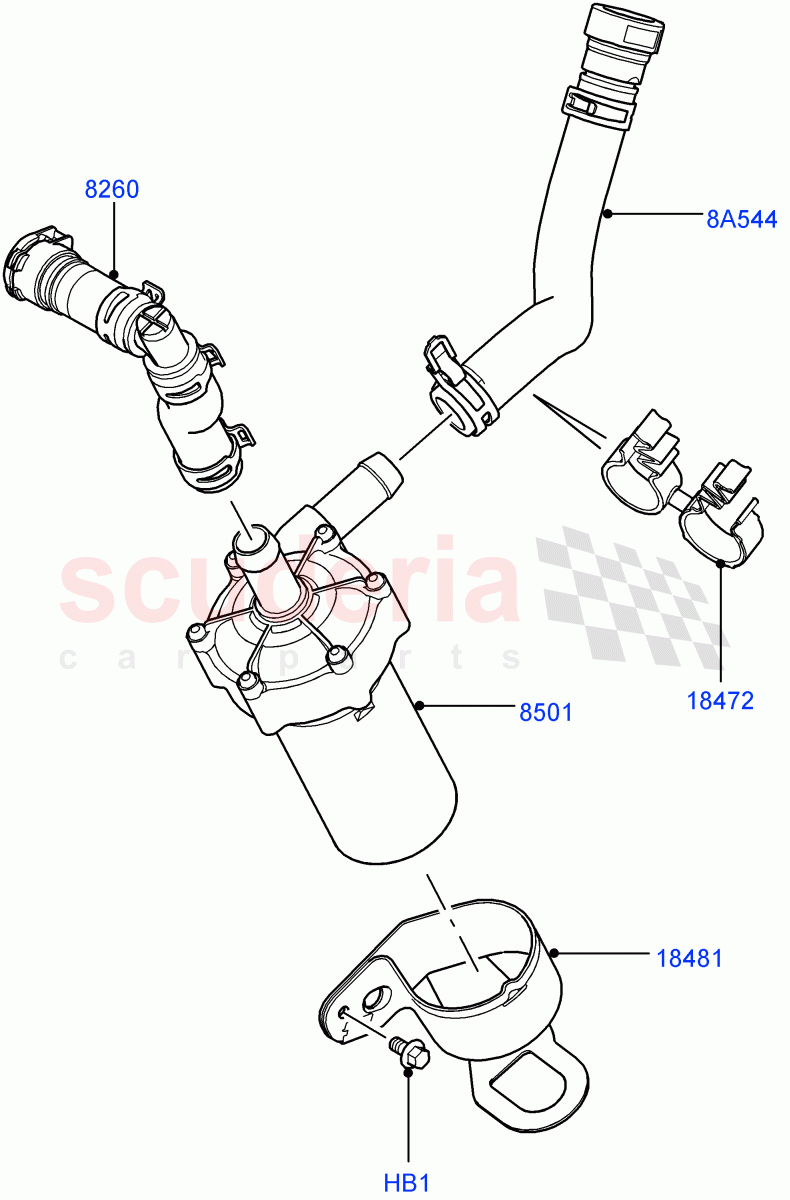

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCH501820	HOSE - RADIATOR	$45.61	To Order

Photo	Part No	Description	Price (each)	Stock
	PEB500010	PUMP - WATER	$285.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023469	CLIP	$25.11	To Order

Photo	Part No	Description	Price (each)	Stock
	PEU500110	BRACKET	$87.66	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: AA000001 IN STOCK	$0.50	1
8A544	LR012748	HOSE - WATER	LR012748 HOSE - WATER From: AA000001 / To: AA322451	$34.14	1
8A544	LR023205	HOSE - WATER	LR023205 HOSE - WATER From: AA322452	$54.50	1
8260	PCH501820	HOSE - RADIATOR	PCH501820 HOSE - RADIATOR Radiator To Coolant Pump / From: AA000001	$45.61	1
8501	PEB500010	PUMP - WATER	PEB500010 PUMP - WATER From: AA000001	$285.06	1
18472	LR023469	CLIP	LR023469 CLIP Clip - Engine Cooling Hose And A/C Hose / From: AA328703	$25.11	1
18481	PEU500110	BRACKET	PEU500110 BRACKET From: AA000001	$87.66	1
