Cooling System Pipes And Hoses (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR017360 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR012615 HOSE - RADIATOR Enquire To Order
LR011482 HOSE - RADIATOR Enquire To Order
LR012615 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR011480 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR017364 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR017361 HOSE - OVERFLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR011462 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR017358 HOSE - TURBOCHARGER TO INTERCOOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR010891 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR017363 HOSE - WATER Enquire To Order
LR031523 HOSE - WATER Enquire To Order
LR017363 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR017362 HOSE - RADIATOR Enquire To Order
LR017362 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR017359 HOSE - WATER Enquire To Order
View All

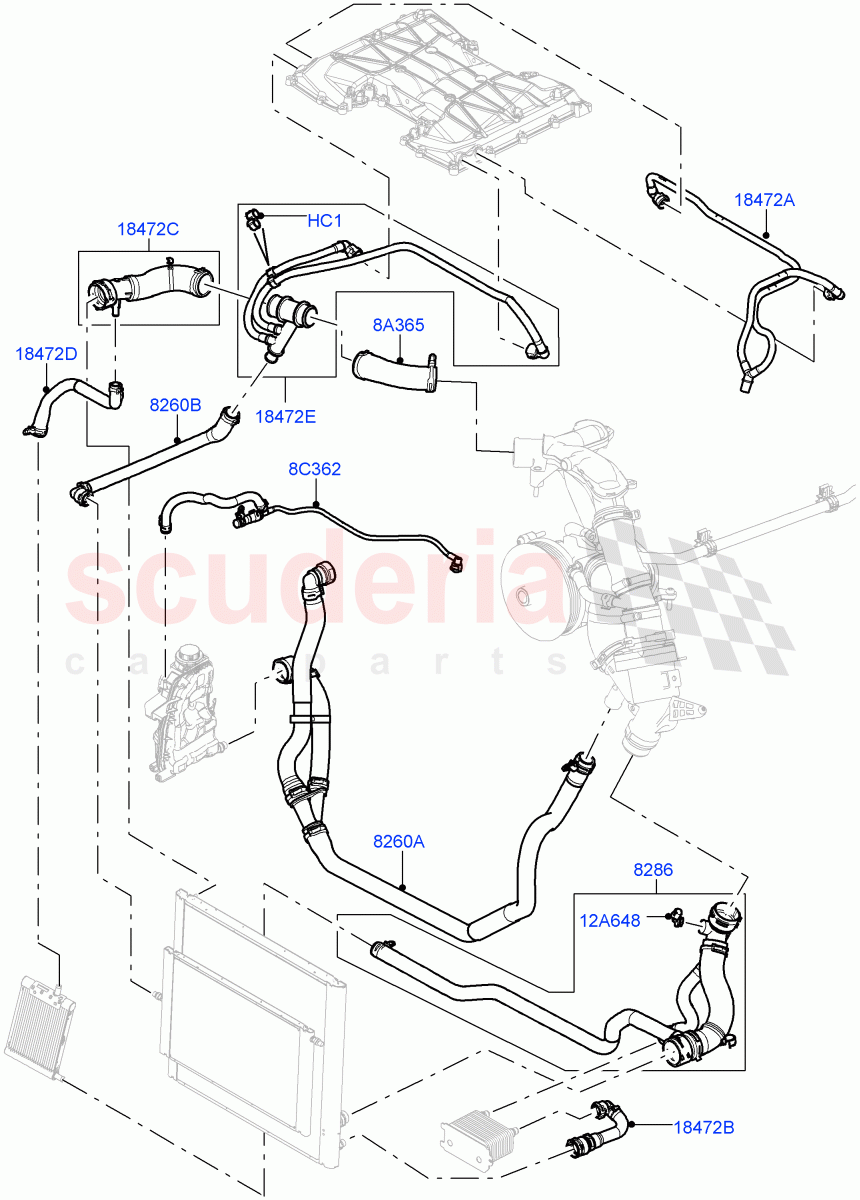

Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR017360
CLIP
Double / From: AA000001 		- 1 Enquire
8A365 LR017361
HOSE - OVERFLOW
To Cylinder Head, Upper / From: AA000001 		- 1 Enquire
8C362 LR011462
HOSE
Expansion Reservoir Overflow / From: AA000001 		- 1 Enquire
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 		- 1 Enquire
8260A LR011480
HOSE
Bottom, Expansion Reservoir To Thermostat, From Heater Outlet To Thermostat / From: AA000001 		- 1 Enquire
8260B LR017364
HOSE
Radiator Hose / From: AA000001 		- 1 Enquire
8286 LR012615
HOSE - RADIATOR
Bottom, Radiator To Thermostat, With Sensor / From: AA000001 / To: BA345199 		- 1 Enquire
8286 LR011482
HOSE - RADIATOR
(-)"GCC" / Bottom, Radiator To Thermostat, With Sensor / From: BA345200 		- 1 Enquire
8286 LR012615
HOSE - RADIATOR
(+)"GCC" / Bottom, Radiator To Thermostat, With Sensor / From: BA345200 		- 1 Enquire
18472A LR017358
HOSE - TURBOCHARGER TO INTERCOOLER
Intercooler, Supply From Pump / From: AA000001 		- 1 Enquire
18472B LR010891
HOSE - HEATER WATER
Radiator To Cooler / From: AA000001 		- 1 Enquire
18472C LR017363
HOSE - WATER
Engine To Radiator, Upper / From: AA000001 / To: BA345199 		- 1 Enquire
18472C LR031523
HOSE - WATER
(-)"GCC" / Engine To Radiator, Upper / From: BA345200 		- 1 Enquire
18472C LR017363
HOSE - WATER
(+)"GCC" / Engine To Radiator, Upper / From: BA345200 		- 1 Enquire
18472D LR017362
HOSE - RADIATOR
Auxiliary cooler, Upper / From: AA000001 / To: BA345199 		- 1 Enquire
18472D LR017362
HOSE - RADIATOR
(+)"GCC" / Auxiliary cooler, Upper / From: BA345200 		- 1 Enquire
18472E LR017359
HOSE - WATER
Intercooler / From: AA000001 		- 1 Enquire
