Electrical Wiring - Body And Rear (With B6 Level Armouring) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Body And Rear (With B6 Level Armouring) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YWH500010 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
YTH500060 LINK Enquire To Order
YTH500070 LINK Enquire To Order
Photo Part No Description Price (each) Stock
YTH500080 LINK Enquire To Order
YTH500090 LINK Enquire To Order
Photo Part No Description Price (each) Stock
YTH500100 LINK Enquire To Order
Photo Part No Description Price (each) Stock
YQE500400 HOLDER - FUSE Enquire To Order
Photo Part No Description Price (each) Stock
YWB500240 RELAY Enquire To Order
View All

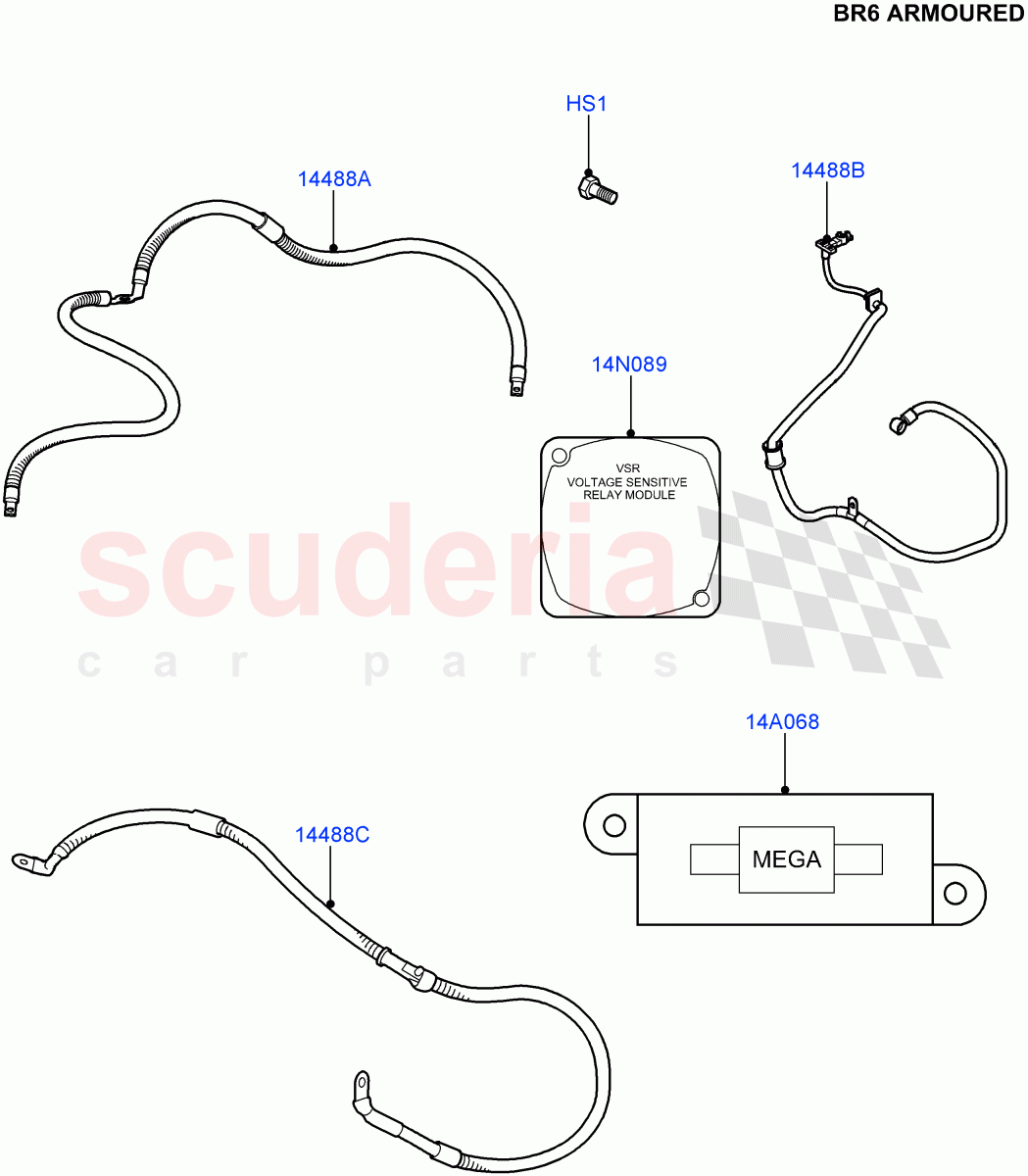

Electrical Wiring - Body And Rear (With B6 Level Armouring) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 YWH500010
SCREW
M5 x 40MM / From: AA000001 		- - Enquire
14A068 YQE500400
HOLDER - FUSE
Mega Fusebox / From: AA000001 		- 1 Enquire
14N089 YWB500240
RELAY
Voltage Sensitive / From: AA000001 		- 1 Enquire
14488A YTH500060
LINK
RHD / Jump Start Post To VSR / From: AA000001 		- 1 Enquire
14488A YTH500070
LINK
LHD / Jump Start Post To VSR / From: AA000001 		- 1 Enquire
14488B YTH500080
LINK
RHD / VSR To Megafuse Box / From: AA000001 		- 1 Enquire
14488B YTH500090
LINK
LHD / VSR To Megafuse Box / From: AA000001 		- 1 Enquire
14488C YTH500100
LINK
Megafuse Box To Rear Auxiliary Battery / From: AA000001 		- 1 Enquire
