Aerial ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Aerial ((V) FROMAA000001)

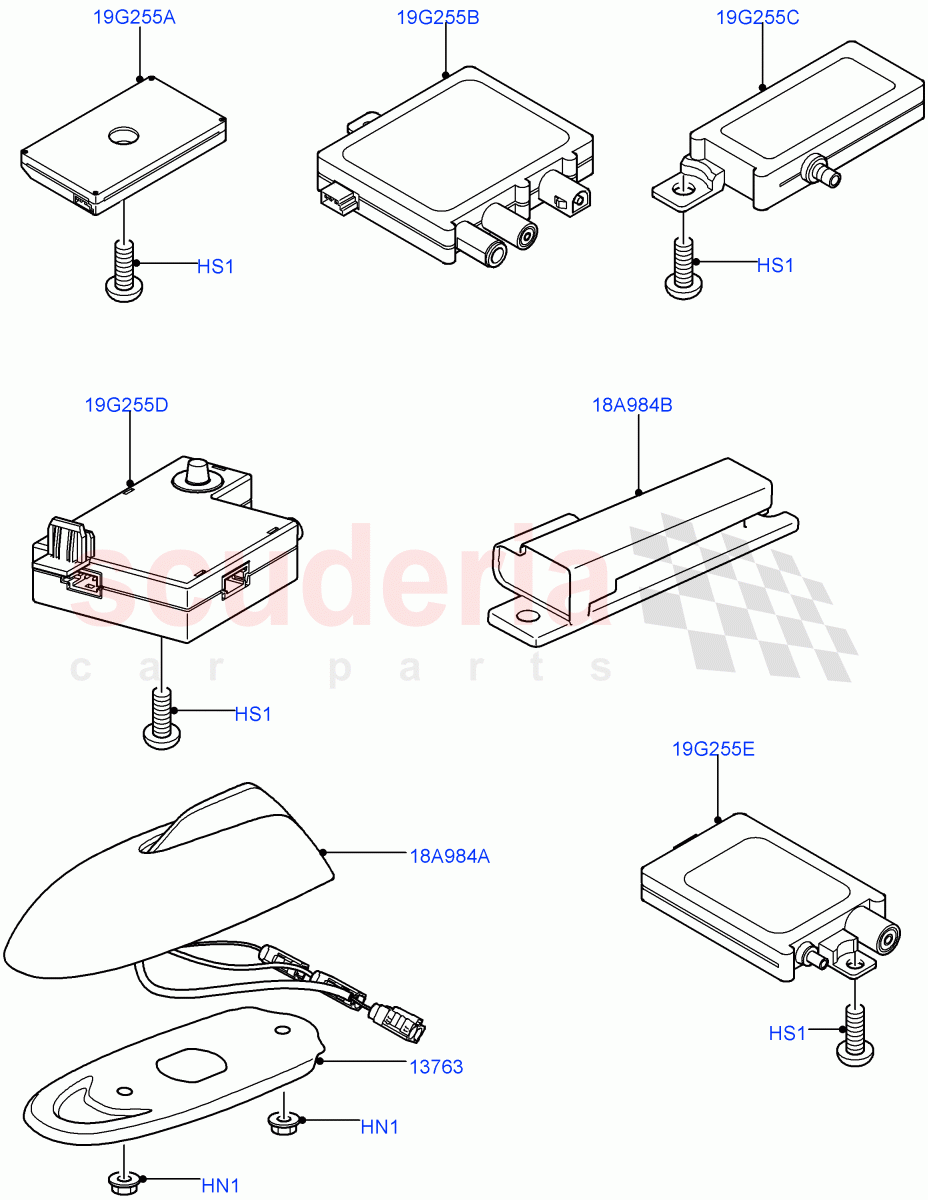

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XUI500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AKR780130	BRACKET - AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011899	AERIAL - ROOF MOUNTED	Enquire	To Order
	XUI500350	AERIAL - ROOF MOUNTED	Enquire	To Order
	LR031941	AERIAL - ROOF MOUNTED	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012709	ANTENNA - LF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010929	AMPLIFIER	Enquire	To Order
	LR018096	AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XUO000010	AMPLIFIER - REAR WINDOW AERIAL	Enquire	To Order
	LR018097	AMPLIFIER - REAR WINDOW AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XUO000040	AMPLIFIER	Enquire	To Order
	LR018068	AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010928	AMPLIFIER	Enquire	To Order
	LR018031	AERIAL - GPS	Enquire	To Order
	XUI500250	AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018069	AMPLIFIER	Enquire	To Order
	XUO000051	AMPLIFIER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: AA000001	-	2	Enquire
HS1	XUI500010	SCREW	XUI500010 SCREW M6 X 16MM, Torx / From: AA000001	-	-	Enquire
18A984A	LR011899	AERIAL - ROOF MOUNTED	LR011899 AERIAL - ROOF MOUNTED Digital Audio Broadcast / From: AA000001	-	1	Enquire
18A984A	XUI500350	AERIAL - ROOF MOUNTED	XUI500350 AERIAL - ROOF MOUNTED HD And Sirius Radio Broadcast, With Colour Nav. System NAS / From: AA000001 / To: BA355910	-	1	Enquire
18A984A	LR031941	AERIAL - ROOF MOUNTED	LR031941 AERIAL - ROOF MOUNTED HD And Sirius Radio Broadcast / From: BA355911	-	1	Enquire
18A984A	XUI500370	AERIAL - ROOF MOUNTED	XUI500370 AERIAL - ROOF MOUNTED Analogue Audio Broadcast / From: AA000001	-	1	Enquire
18A984B	LR012709	ANTENNA - LF	LR012709 ANTENNA - LF LF Antenna, Remote Keyless Antenna / From: AA000001	-	3	Enquire
19G255A	LR010929	AMPLIFIER	LR010929 AMPLIFIER Tailgate / From: AA000001 / To: AA309294	-	1	Enquire
19G255A	LR018096	AMPLIFIER	LR018096 AMPLIFIER Tailgate / From: AA309295	-	1	Enquire
19G255B	XUO000010	AMPLIFIER - REAR WINDOW AERIAL	XUO000010 AMPLIFIER - REAR WINDOW AERIAL Side Window / From: AA000001 / To: AA315949	-	1	Enquire
19G255B	LR018097	AMPLIFIER - REAR WINDOW AERIAL	LR018097 AMPLIFIER - REAR WINDOW AERIAL Side Window / From: AA315950	-	1	Enquire
19G255C	XUO000040	AMPLIFIER	XUO000040 AMPLIFIER With Television / Panel - Body Side - Rear, TV / From: AA000001 / To: AA315949	-	3	Enquire
19G255C	LR018068	AMPLIFIER	LR018068 AMPLIFIER Dual View Screen And TV / Ash Grey, Panel - Body Side - Rear, TV / From: AA315950	-	4	Enquire
19G255D	LR010928	AMPLIFIER	LR010928 AMPLIFIER Digital Audio Broadcast / Green / From: AA000001	-	1	Enquire
19G255D	LR018031	AERIAL - GPS	LR018031 AERIAL - GPS Traffic Message Channel-TMC, With Nav System-Becker Traffic Pro / Red / From: AA311950	-	1	Enquire
19G255D	XUI500250	AERIAL	XUI500250 AERIAL Traffic Message Channel-TMC, With Navigation Preparation / Red / From: AA000001 / To: AA311949	-	1	Enquire
19G255E	LR018069	AMPLIFIER	LR018069 AMPLIFIER Park Heating With Remote Control / Panel - Body Side - Rear, Telestart / From: AA223003	-	1	Enquire
19G255E	XUO000051	AMPLIFIER	XUO000051 AMPLIFIER Park Heating With Remote Control / Panel - Body Side - Rear, Telestart / From: AA000001 / To: AA223002	-	1	Enquire
13763	AKR780130	BRACKET - AERIAL	AKR780130 BRACKET - AERIAL Aerial / From: AA000001	-	1	Enquire
