Wheels ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Wheels ((V) FROMAA000001)

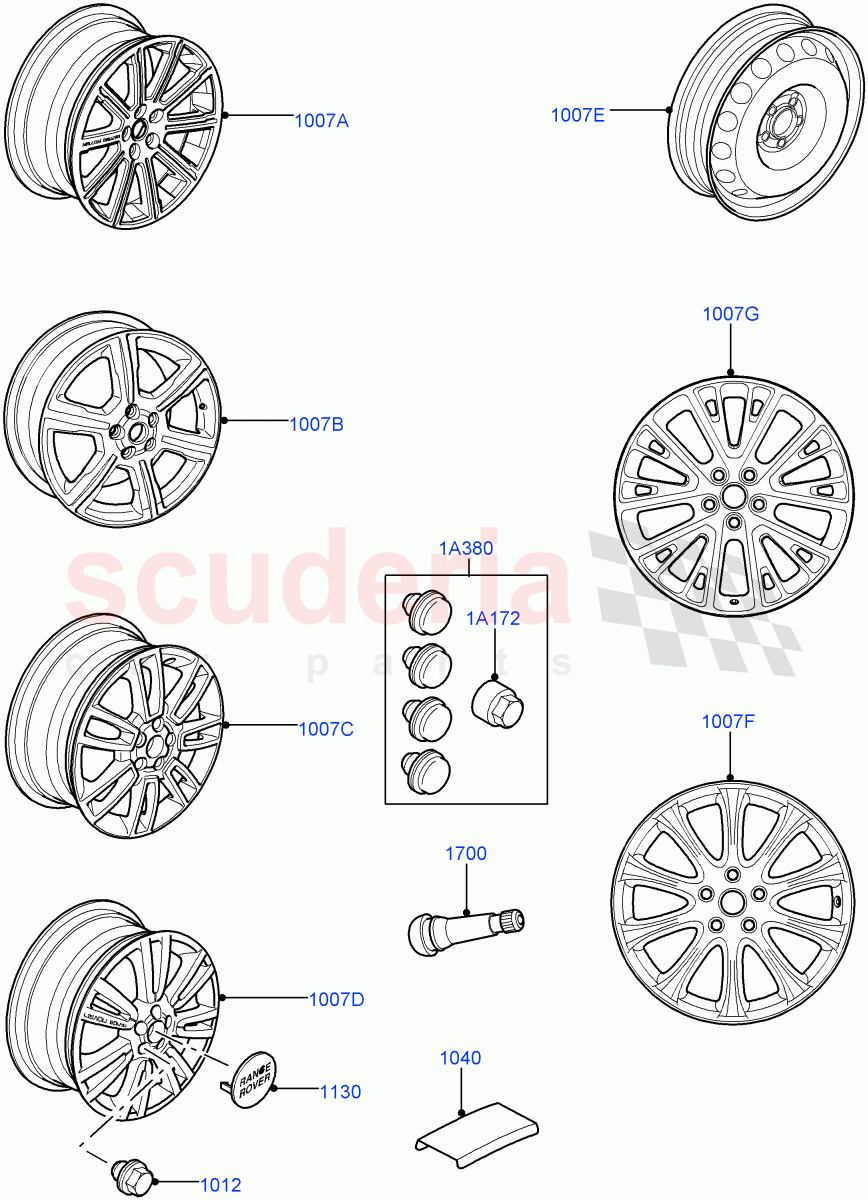

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RRD500590	NUT - WHEEL	Enquire	To Order
	LR173842	NUT - WHEEL	Enquire	To Order
	LR068126	NUT - WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRG500270	WEIGHT - BALANCE	Enquire	To Order
	RRG500280	WEIGHT - BALANCE	Enquire	To Order
	RRG500290	WEIGHT - BALANCE	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RRJ500030WYS	COVER - WHEEL	Enquire	To Order
	RRJ500060WYU	COVER - WHEEL	Enquire	To Order
	LR021626	COVER - WHEEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RRF500100	VALVE - TYRE	Enquire	To Order
	LR031766	VALVE - TYRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010666	WHEEL	Enquire	To Order
	LR017926	WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012835	WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008765	WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008766	WHEEL - ALLOY	Enquire	To Order
	LR028988	WHEEL - ALLOY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRC002882PBG	WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023207	WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020930	WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KBM500020	ADAPTOR - WHEEL NUT KEY	Enquire	To Order
	KBM500030	ADAPTOR - WHEEL NUT KEY	Enquire	To Order
	KBM500040	ADAPTOR - WHEEL NUT KEY	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RRB500120	KIT - LOCKS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1A172	KBM500020	ADAPTOR - WHEEL NUT KEY	KBM500020 ADAPTOR - WHEEL NUT KEY Type 'A', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500030	ADAPTOR - WHEEL NUT KEY	KBM500030 ADAPTOR - WHEEL NUT KEY Type 'B', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500040	ADAPTOR - WHEEL NUT KEY	KBM500040 ADAPTOR - WHEEL NUT KEY Type 'C', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500050	ADAPTOR - WHEEL NUT KEY	KBM500050 ADAPTOR - WHEEL NUT KEY Type 'D', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500060	ADAPTOR - WHEEL NUT KEY	KBM500060 ADAPTOR - WHEEL NUT KEY Type 'E', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500070	ADAPTOR - WHEEL NUT KEY	KBM500070 ADAPTOR - WHEEL NUT KEY Type 'F', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500080	ADAPTOR - WHEEL NUT KEY	KBM500080 ADAPTOR - WHEEL NUT KEY Type 'G', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500090	ADAPTOR - WHEEL NUT KEY	KBM500090 ADAPTOR - WHEEL NUT KEY Type 'H', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500100	ADAPTOR - WHEEL NUT KEY	KBM500100 ADAPTOR - WHEEL NUT KEY Type 'J', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500110	ADAPTOR - WHEEL NUT KEY	KBM500110 ADAPTOR - WHEEL NUT KEY Type 'K', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500120	ADAPTOR - WHEEL NUT KEY	KBM500120 ADAPTOR - WHEEL NUT KEY Type 'L', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500130	ADAPTOR - WHEEL NUT KEY	KBM500130 ADAPTOR - WHEEL NUT KEY Type 'M', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500140	ADAPTOR - WHEEL NUT KEY	KBM500140 ADAPTOR - WHEEL NUT KEY Type 'N', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500150	ADAPTOR - WHEEL NUT KEY	KBM500150 ADAPTOR - WHEEL NUT KEY Type 'P', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500160	ADAPTOR - WHEEL NUT KEY	KBM500160 ADAPTOR - WHEEL NUT KEY Type 'R', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500170	ADAPTOR - WHEEL NUT KEY	KBM500170 ADAPTOR - WHEEL NUT KEY Type 'S', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500180	ADAPTOR - WHEEL NUT KEY	KBM500180 ADAPTOR - WHEEL NUT KEY Type 'T', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500190	ADAPTOR - WHEEL NUT KEY	KBM500190 ADAPTOR - WHEEL NUT KEY Type 'U', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500200	ADAPTOR - WHEEL NUT KEY	KBM500200 ADAPTOR - WHEEL NUT KEY Type 'V', Wheel Nut Key / From: AA000001	-	1	Enquire
1A172	KBM500210	ADAPTOR - WHEEL NUT KEY	KBM500210 ADAPTOR - WHEEL NUT KEY Type 'W', Wheel Nut Key / From: AA000001	-	1	Enquire
1A380	RRB500120	KIT - LOCKS	RRB500120 KIT - LOCKS Locking Wheel Nuts / Kit, Please refer Topix JLR Equipment Website, Set Of 5 Pieces / From: AA000001	-	1	Enquire
1007A	LR010666	WHEEL	LR010666 WHEEL 20 X 8.5" 10 Spoke Alloy Wheel / Sparkle Silver / From: AA000001	-	5	Enquire
1007A	LR017926	WHEEL	LR017926 WHEEL 20" Style 12 10 Spoke Polished / Polished / From: AA000001	-	4	Enquire
1007B	LR012835	WHEEL	LR012835 WHEEL 8.5 X 20" Diamond Turn 6 Spk Sty 14 / Sparkle Silver / From: AA000001	-	5	Enquire
1007C	LR008765	WHEEL	LR008765 WHEEL 8 X 19" Style 8 7 X 2 Spoke Alloy / Due To The Small Size Of The Rim In Relation To The Brake System, Can't Be Used For 5.0SC Petrol And 4.4Diesel, Sparkle Silver / From: AA000001	-	4	Enquire
1007D	LR008766	WHEEL - ALLOY	LR008766 WHEEL - ALLOY 20" X 8.5" Style 9 7 X2 V Spk Alloy / Sparkle Silver / From: AA000001	-	4	Enquire
1007D	LR028988	WHEEL - ALLOY	LR028988 WHEEL - ALLOY 20" Wheel-Style 20 / Mid Silver / From: CA000001	-	4	Enquire
1007E	RRC002882PBG	WHEEL	RRC002882PBG WHEEL With Emergency Spare Wheel / 5.5J X 19" / From: AA000001	-	1	Enquire
1007F	LR023207	WHEEL	LR023207 WHEEL 19" 10-Spoke Alloy Style 15 Wheel / Sparkle Silver / From: BA000001	-	4	Enquire
1007G	LR020930	WHEEL	LR020930 WHEEL 20" Alloy - Style 17 Wheel / Decor Silver / From: BA000001	-	4	Enquire
1012	RRD500590	NUT - WHEEL	RRD500590 NUT - WHEEL From: AA000001 / To: BA355148	-	-	Enquire
1012	LR173842	NUT - WHEEL	LR173842 NUT - WHEEL From: BA355149 / To: GA906330	-	-	Enquire
1012	LR068126	NUT - WHEEL	LR068126 NUT - WHEEL From: GA906331	-	-	Enquire
1040	RRG500270	WEIGHT - BALANCE	RRG500270 WEIGHT - BALANCE 55 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500280	WEIGHT - BALANCE	RRG500280 WEIGHT - BALANCE 60 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500290	WEIGHT - BALANCE	RRG500290 WEIGHT - BALANCE 65 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500300	WEIGHT - BALANCE	RRG500300 WEIGHT - BALANCE 70 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500310	WEIGHT - BALANCE	RRG500310 WEIGHT - BALANCE 75 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500320	WEIGHT - BALANCE	RRG500320 WEIGHT - BALANCE 80 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500170	WEIGHT - BALANCE	RRG500170 WEIGHT - BALANCE 5 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500180	WEIGHT - BALANCE	RRG500180 WEIGHT - BALANCE 10 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500190	WEIGHT - BALANCE	RRG500190 WEIGHT - BALANCE 15 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500200	WEIGHT - BALANCE	RRG500200 WEIGHT - BALANCE 20 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500210	WEIGHT - BALANCE	RRG500210 WEIGHT - BALANCE 25 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500220	WEIGHT - BALANCE	RRG500220 WEIGHT - BALANCE 30 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500230	WEIGHT - BALANCE	RRG500230 WEIGHT - BALANCE 35 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500240	WEIGHT - BALANCE	RRG500240 WEIGHT - BALANCE 40 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500250	WEIGHT - BALANCE	RRG500250 WEIGHT - BALANCE 45 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500260	WEIGHT - BALANCE	RRG500260 WEIGHT - BALANCE 50 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500380	WEIGHT - BALANCE	RRG500380 WEIGHT - BALANCE 100 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500350	WEIGHT - BALANCE	RRG500350 WEIGHT - BALANCE 85 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500360	WEIGHT - BALANCE	RRG500360 WEIGHT - BALANCE 90 G, Self Adhesive / From: AA000001	-	-	Enquire
1040	RRG500370	WEIGHT - BALANCE	RRG500370 WEIGHT - BALANCE 95 G, Self Adhesive / From: AA000001	-	-	Enquire
1130	RRJ500030WYS	COVER - WHEEL	RRJ500030WYS COVER - WHEEL Silver/Black, Sparkle Silver / From: AA000001	-	4	Enquire
1130	RRJ500060WYU	COVER - WHEEL	RRJ500060WYU COVER - WHEEL Polished, Silver/Black / From: AA000001 / To: AA323986	-	4	Enquire
1130	LR021626	COVER - WHEEL	LR021626 COVER - WHEEL Polished, Silver/Black / From: AA323987 / To: BA541484	-	4	Enquire
1130	LR023302	COVER - WHEEL	LR023302 COVER - WHEEL Green/Silver, Sparkle Silver / From: BA000001 / To: BA541484	-	4	Enquire
1130	LR094547	COVER - WHEEL (LAND ROVER) (x4)	LR094547 COVER - WHEEL (LAND ROVER) (x4) Bright Black, Range Rover Badge / From: AA000001 / To: BA348693	-	4	Enquire
1130	LR089427	COVER - WHEEL	LR089427 COVER - WHEEL Green/Silver, Sparkle Silver / From: BA541485	-	4	Enquire
1130	LR089425	COVER - WHEEL	LR089425 COVER - WHEEL Polished, Silver/Black / From: BA541485	-	4	Enquire
1130	LR094547	COVER - WHEEL (LAND ROVER) (x4)	LR094547 COVER - WHEEL (LAND ROVER) (x4) Bright Black, Range Rover Badge / From: BA348694	-	4	Enquire
1700	RRF500100	VALVE - TYRE	RRF500100 VALVE - TYRE Less Tyre Pressure Sensors / From: AA000001 / To: BA348693	-	5	Enquire
1700	LR031766	VALVE - TYRE	LR031766 VALVE - TYRE Less Tyre Pressure Sensors / From: BA348694	-	5	Enquire
