Rear Cross Member & Stabilizer Bar (With B6 Level Armouring) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Rear Cross Member & Stabilizer Bar (With B6 Level Armouring) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP000160 BOLT $1.13 To Order
Photo Part No Description Price (each) Stock
RGL000021 PLATE $28.22 To Order
Photo Part No Description Price (each) Stock
RGL000011 PLATE $58.08 To Order
Photo Part No Description Price (each) Stock
QYH100271 NUT - FLANGED $2.89 IN STOCK
Photo Part No Description Price (each) Stock
RYP100161 SCREW $8.13 To Order
Photo Part No Description Price (each) Stock
RYF000021 RESTRICTOR $0.92 IN STOCK
Photo Part No Description Price (each) Stock
RHB000011 WASHER $23.58 To Order
Photo Part No Description Price (each) Stock
RBX500040 BUSH - STABILIZER BAR LINK $39.49 To Order
Photo Part No Description Price (each) Stock
RHL500010 BRACKET - STABILIZER BAR $111.59 To Order
Photo Part No Description Price (each) Stock
RGU000110 BRACKET - STABILIZER BAR $270.47 To Order
Photo Part No Description Price (each) Stock
RGB500010 BAR - STABILIZER $6,580.72 To Order
Photo Part No Description Price (each) Stock
KHE500100 FRAME $2,248.65 To Order
Photo Part No Description Price (each) Stock
LR030048 LINK - STABILIZER BAR $66.25 To Order
LR030048 LINK - STABILIZER BAR $66.25 To Order
Photo Part No Description Price (each) Stock
KHC000030 INSULATOR $60.75 To Order
Photo Part No Description Price (each) Stock
KHC000040 INSULATOR $60.75 To Order
Photo Part No Description Price (each) Stock
KHC000050 MOUNTING - RUBBER $108.09 To Order
Photo Part No Description Price (each) Stock
KHC000060 MOUNTING - RUBBER $108.09 To Order
View All

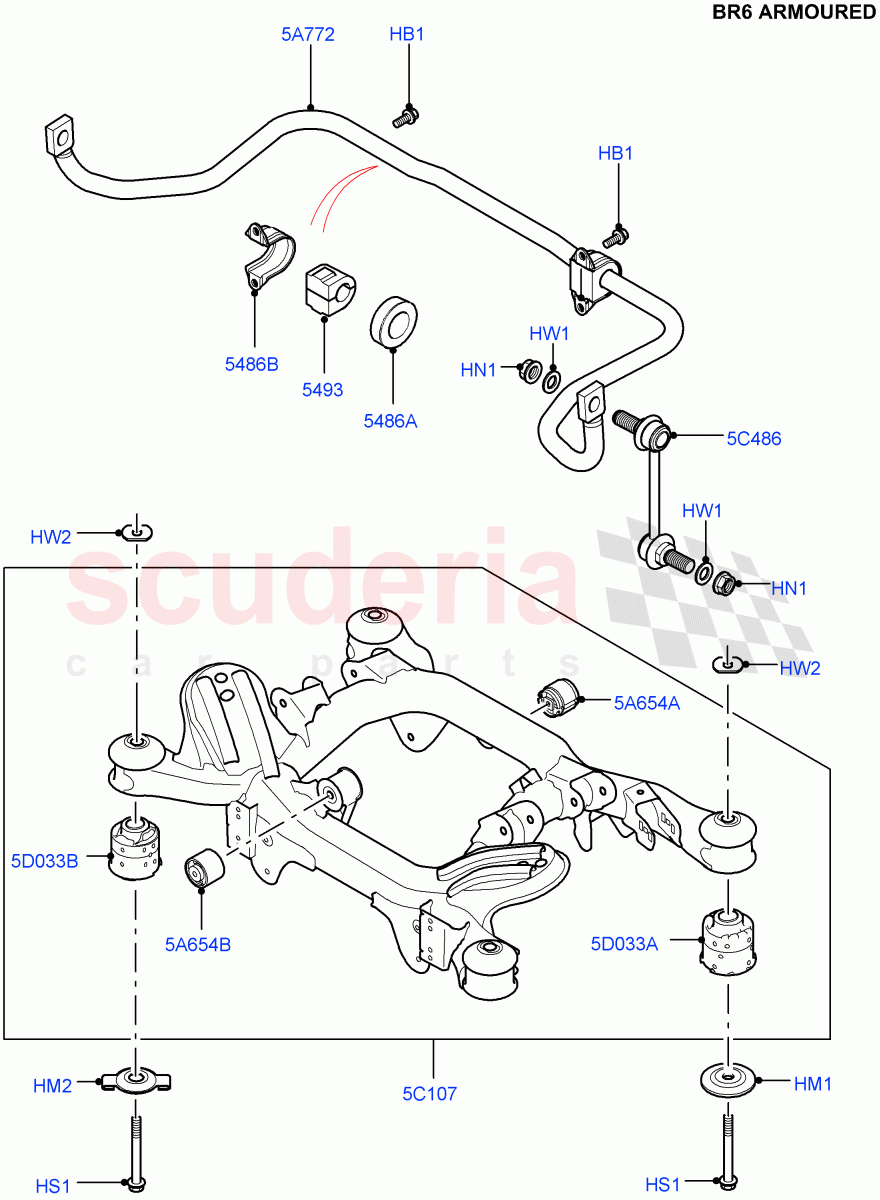

Rear Cross Member & Stabilizer Bar (With B6 Level Armouring) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP000160
BOLT
M10 x 18MM / From: AA000001 		$1.13 4
HM1 RGL000021
PLATE
Crossmember, Frame Mounting Insulator, Rear / From: AA000001 		$28.22 2
HM2 RGL000011
PLATE
Crossmember, Frame Mounting Insulator, Front / From: AA000001 		$58.08 2
HN1 QYH100271
NUT - FLANGED
M12 / From: AA000001
IN STOCK 		$2.89 4
HS1 RYP100161
SCREW
HEX Flange, M14 X 1.5 X 138 / From: AA000001 		$8.13 4
HW1 RYF000021
RESTRICTOR
M12 / From: AA000001
IN STOCK 		$0.92 4
HW2 RHB000011
WASHER
Special Washer / From: AA000001 		$23.58 4
5A654A KHC000030
INSULATOR
Centre Front, Crossmember / From: AA000001 		$60.75 2
5A654B KHC000040
INSULATOR
Crossmember, Rear Centre / From: AA000001 		$60.75 1
5A772 RGB500010
BAR - STABILIZER
From: AA000001 		$6,580.72 1
5C107 KHE500100
FRAME
From: AA000001 		$2,248.65 1
5C486 LR030048
LINK - STABILIZER BAR
From: AA000001 / To: BA345096 		$66.25 2
5C486 LR030048
LINK - STABILIZER BAR
From: BA345097 		$66.25 2
5D033A KHC000050
MOUNTING - RUBBER
Crossmember, Front / From: AA000001 		$108.09 2
5D033B KHC000060
MOUNTING - RUBBER
Crossmember, Rear / From: AA000001 		$108.09 2
5486A RHL500010
BRACKET - STABILIZER BAR
For Armoured Vehicles Only / From: AA000001 		$111.59 2
5486B RGU000110
BRACKET - STABILIZER BAR
From: AA000001 		$270.47 2
5493 RBX500040
BUSH - STABILIZER BAR LINK
From: AA000001 		$39.49 2
