Name: Radiator/Coolant Overflow Container (Cooling Ducts) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001, (V) TOBA333350)
Rating: 5.0 (1 reviews)

Radiator/Coolant Overflow Container (Cooling Ducts) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001, (V) TOBA333350) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Radiator/Coolant Overflow Container (Cooling Ducts) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V)...

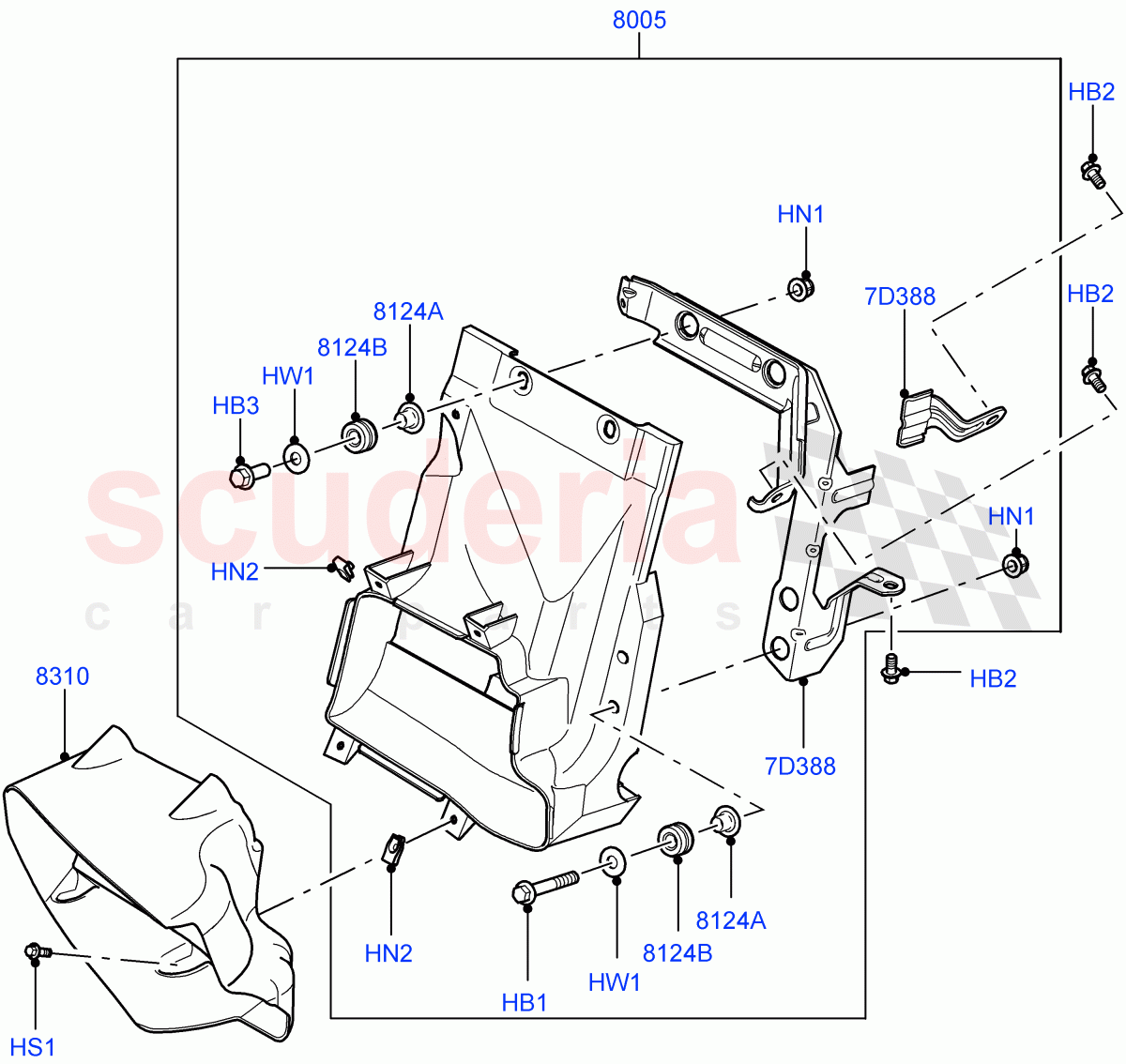

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110146	BOLT - HEX.HEAD	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS110356	SCREW	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	$4.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WC110066	WASHER	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011466	RADIATOR	$619.36	To Order
	LR020386	HOUSING - AIR DUCT	$137.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011981	DEFLECTOR - AIR	$46.26	To Order

Photo	Part No	Description	Price (each)	Stock
	PBU500131	BRACKET - RADIATOR UPPER	$385.51	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500020	BUSH	$48.69	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500050	INSULATOR - RADIATOR SUPPORT	$11.94	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB110146	BOLT - HEX.HEAD	FB110146 BOLT - HEX.HEAD Hexagonal Head, M10 x 70MM / From: AA000001	$1.74	2
HB2	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM / From: AA000001 IN STOCK	$0.63	3
HB3	FS110356	SCREW	FS110356 SCREW Hexagonal Head, M10 x 35MM / From: AA000001	$0.74	2
HN1	FY110056	NUT IN STOCK	FY110056 NUT M10 / From: AA000001 IN STOCK	$4.32	4
HN2	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: AA000001 IN STOCK	$1.57	4
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM / From: AA000001 IN STOCK	$0.97	4
HW1	WC110066	WASHER	WC110066 WASHER M10 / From: AA000001	$1.07	12
7D388	PBU500131	BRACKET - RADIATOR UPPER	PBU500131 BRACKET - RADIATOR UPPER From: AA000001	$385.51	1
8005	LR011466	RADIATOR	LR011466 RADIATOR From: AA000001 / To: AA311917	$619.36	1
8005	LR020386	HOUSING - AIR DUCT	LR020386 HOUSING - AIR DUCT From: AA311916	$137.84	1
8124A	PDI500020	BUSH	PDI500020 BUSH From: AA000001	$48.69	2
8124B	PCG500050	INSULATOR - RADIATOR SUPPORT	PCG500050 INSULATOR - RADIATOR SUPPORT From: AA000001	$11.94	2
8310	LR011981	DEFLECTOR - AIR	LR011981 DEFLECTOR - AIR From: AA000001	$46.26	1
