Radiator/Coolant Overflow Container (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYP500120 BOLT $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR010964 RADIATOR $653.87 To Order
Photo Part No Description Price (each) Stock
LR176861 CAP - OVERFLOW CONTAINER $16.40 To Order
Photo Part No Description Price (each) Stock
PCU000070 BRACKET - RADIATOR $5.31 To Order
Photo Part No Description Price (each) Stock
PCU000170 BRACKET - RADIATOR $3.78 To Order
Photo Part No Description Price (each) Stock
LR011033 BRACKET $9.43 To Order
Photo Part No Description Price (each) Stock
PCG500080 INSULATOR - RADIATOR SUPPORT $17.96 To Order
Photo Part No Description Price (each) Stock
PCG000010 MOUNTING - RUBBER $14.49 To Order
Photo Part No Description Price (each) Stock
PCG500100 MOUNTING - RUBBER $12.89 To Order
Photo Part No Description Price (each) Stock
LR011411 SHROUD - RADIATOR FAN $172.80 To Order
Photo Part No Description Price (each) Stock
LR011705 SHROUD - RADIATOR FAN $170.79 To Order
Photo Part No Description Price (each) Stock
LR010966 TANK - RADIATOR OVERFLOW $83.16 To Order
LR023077 TANK - RADIATOR OVERFLOW $152.86 To Order
Photo Part No Description Price (each) Stock
PGF500340 BRUSH $34.20 To Order
PGF500340 BRUSH $34.20 To Order
PGF500260 DEFLECTOR - AIR $29.43 To Order
Photo Part No Description Price (each) Stock
LR011041 BRACKET - RADIATOR SUPPORT $144.10 To Order
Photo Part No Description Price (each) Stock
LR007315 SEAL $2.16 IN STOCK
Photo Part No Description Price (each) Stock
LR012645 FAN AND MOTOR $743.52 To Order
Photo Part No Description Price (each) Stock
LR007314 VALVE - BLEEDER SCREW $4.58 To Order
LR055301 VALVE - BLEEDER SCREW $8.64 IN STOCK
Photo Part No Description Price (each) Stock
LR011040 CLIP $6.12 To Order
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL $23.95 IN STOCK
Photo Part No Description Price (each) Stock
LR011455 FAN AND MOTOR $663.07 To Order
LR020124 FAN AND MOTOR $984.55 To Order
Photo Part No Description Price (each) Stock
PCU000220 BRACKET - RADIATOR UPPER $18.09 To Order
Photo Part No Description Price (each) Stock
PCU000160 BRACKET - RADIATOR $18.61 To Order
View All

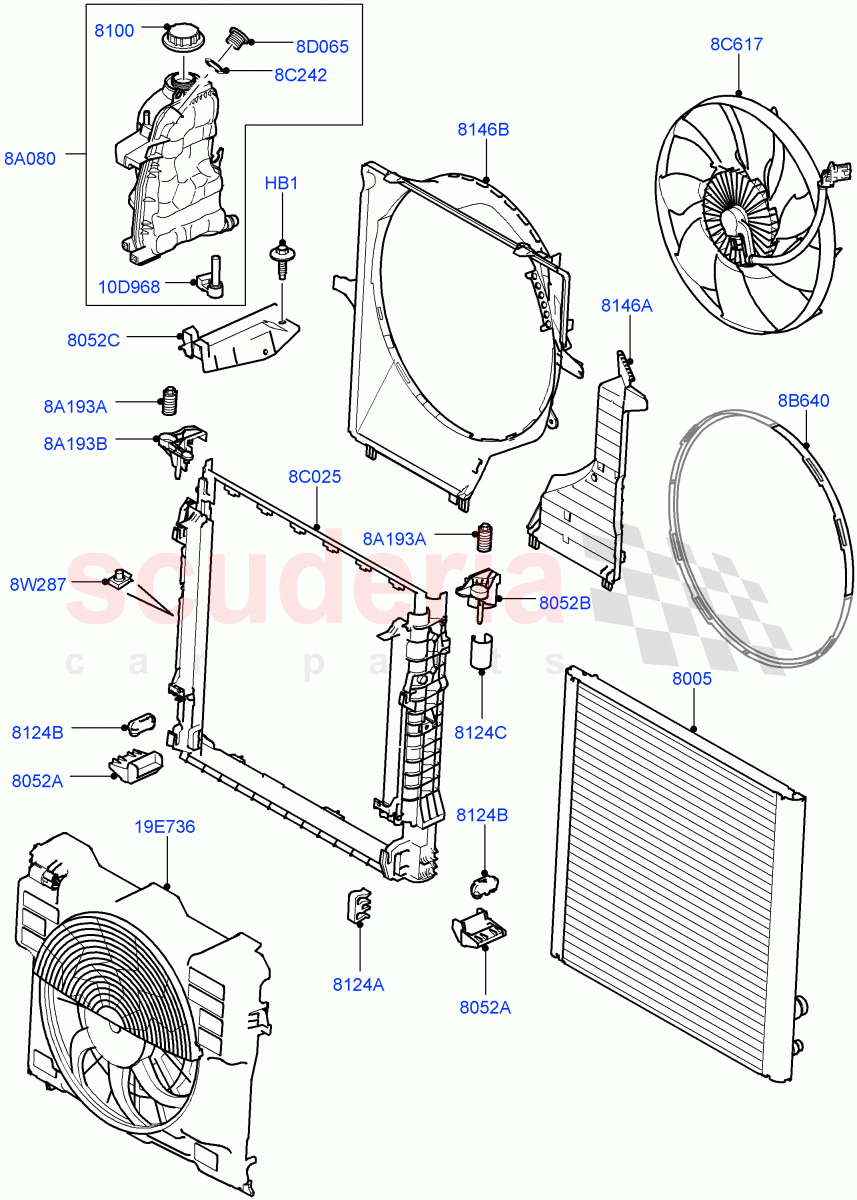

Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 PYP500120
BOLT
M6 X 20MM / From: AA000001
IN STOCK 		$0.77 3
8A080 LR010966
TANK - RADIATOR OVERFLOW
From: AA000001 / To: AA319670 		$83.16 1
8A080 LR023077
TANK - RADIATOR OVERFLOW
From: AA319671 		$152.86 1
8A193A PCU000220
BRACKET - RADIATOR UPPER
Upper / From: AA000001 		$18.09 2
8A193B PCU000160
BRACKET - RADIATOR
RH / From: AA000001 		$18.61 1
8B640 PGF500340
BRUSH
From: AA000001 / To: BA335171 		$34.20 4
8B640 PGF500340
BRUSH
From: BA335172 		$34.20 3
8B640 PGF500260
DEFLECTOR - AIR
From: BA335172 		$29.43 1
8C025 LR011041
BRACKET - RADIATOR SUPPORT
From: AA000001 		$144.10 1
8C242 LR007315
SEAL
Bleeder Screw / From: AA000001
IN STOCK 		$2.16 1
8C617 LR012645
FAN AND MOTOR
From: AA000001 		$743.52 1
8D065 LR007314
VALVE - BLEEDER SCREW
Bleeder Screw / From: AA000001 / To: AA319070 		$4.58 1
8D065 LR055301
VALVE - BLEEDER SCREW
Bleeder Screw / From: AA319071
IN STOCK 		$8.64 1
8W287 LR011040
CLIP
From: AA000001 		$6.12 1
10D968 PCJ500030
SENSOR - COOLANT LEVEL
From: AA000001
IN STOCK 		$23.95 1
19E736 LR011455
FAN AND MOTOR
Premium Air Conditioning-Front/Rear / From: AA000001 / To: AA312717 		$663.07 1
19E736 LR020124
FAN AND MOTOR
For Hot Climate Zones, With Front Comfort Air Con (IHKA) / From: AA312718 		$984.55 1
8005 LR010964
RADIATOR
From: AA000001 		$653.87 1
8052A PCU000070
BRACKET - RADIATOR
Lower / From: AA000001 		$5.31 2
8052B PCU000170
BRACKET - RADIATOR
LH / From: AA000001 		$3.78 1
8052C LR011033
BRACKET
From: AA000001 		$9.43 1
8100 LR176861
CAP - OVERFLOW CONTAINER
From: AA000001 		$16.40 1
8124A PCG500080
INSULATOR - RADIATOR SUPPORT
LH Lower / From: AA000001 		$17.96 1
8124B PCG000010
MOUNTING - RUBBER
From: AA000001 		$14.49 2
8124C PCG500100
MOUNTING - RUBBER
LH / From: AA000001 		$12.89 1
8146A LR011411
SHROUD - RADIATOR FAN
From: AA000001 		$172.80 1
8146B LR011705
SHROUD - RADIATOR FAN
From: AA000001 		$170.79 1
