Vacuum Control And Air Injection (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000385 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR020696 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR020697 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR022998 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR022758 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR022842 GASKET - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR022879 PIPE - VAC CONTROL TO TURBO VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR022845 HOSE Enquire To Order
LR038174 CONTROL HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR022849 HOSE - VACUUM CONTROL HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR022956 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR046915 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR022954 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR046916 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR022843 CLIP - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR022844 CLIP - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR021921 CLIP - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR022964 RETAINER - VACUUM HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR022966 RETAINER - VACUUM HOSE Enquire To Order
View All

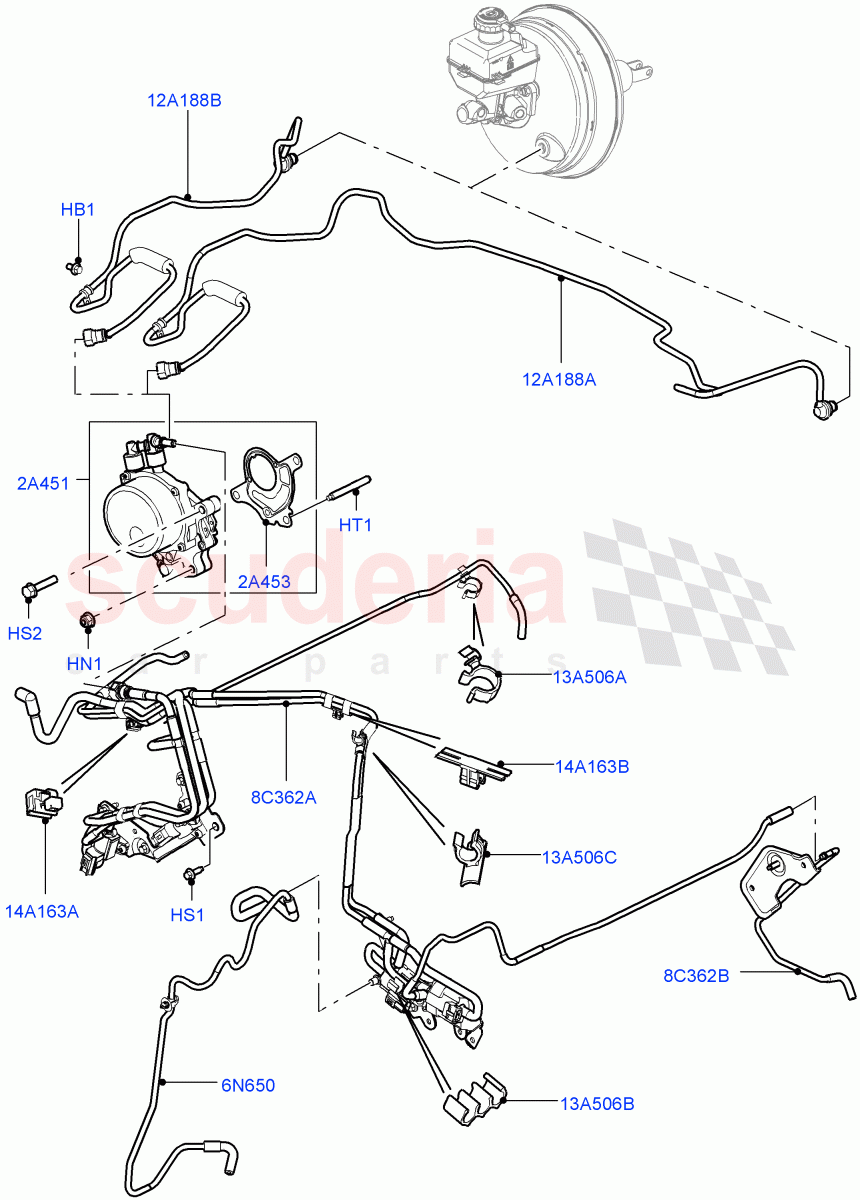

Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000385
BOLT
Hexagonal Head, M6 x 12MM / From: BA000001 		- 2 Enquire
HN1 LR020696
NUT - ADJUSTING
M8, Pump - Vacuum / From: BA000001 		- 1 Enquire
HS1 RYG500190
SCREW
Bracket, Hexagonal Head, M6 X 16MM, Main Vacuum Harness / From: BA000001 		- 8 Enquire
HS2 LR020697
SCREW
M8 x 40MM, Pump - Vacuum / From: BA000001 		- 2 Enquire
HT1 LR022998
STUD
Pump - Vacuum / From: BA000001 		- 1 Enquire
2A451 LR022758
PUMP - VACUUM
From: BA000001 		- 1 Enquire
2A453 LR022842
GASKET - VACUUM PUMP
Pump - Vacuum / From: BA000001 		- 1 Enquire
6N650 LR022879
PIPE - VAC CONTROL TO TURBO VALVE
From: BA000001 		- 1 Enquire
8C362A LR022845
HOSE
Engine Vacuum Harness, Includes Valves / From: BA000001 / To: CA393013 		- 1 Enquire
8C362A LR038174
CONTROL HARNESS
Engine Vacuum Harness, Includes Valves / From: CA393014 		- 1 Enquire
8C362B LR022849
HOSE - VACUUM CONTROL HARNESS
Turbocharger Assembly, Vacuum / From: BA000001 		- 1 Enquire
12A188A LR022956
MANIFOLD - VACUUM SUPPLY
LHD / Pump To Booster / From: BA000001 / To: CA381303 		- 1 Enquire
12A188A LR046915
HOSE - VACUUM
LHD / Pump To Booster / From: CA381304 		- 1 Enquire
12A188B LR022954
MANIFOLD - VACUUM SUPPLY
RHD / Pump To Booster / From: BA000001 / To: CA381303 		- 1 Enquire
12A188B LR046916
HOSE - VACUUM
RHD / Pump To Booster / From: CA381304 		- 1 Enquire
13A506A LR022843
CLIP - WIRING
From: BA000001 		- 1 Enquire
13A506B LR022844
CLIP - WIRING
From: BA000001 		- 1 Enquire
13A506C LR021921
CLIP - WIRING
Main Vacuum Harness / From: BA000001 		- 1 Enquire
14A163A LR022964
RETAINER - VACUUM HOSE
Main Vacuum Harness / From: BA000001 		- 1 Enquire
14A163B LR022966
RETAINER - VACUUM HOSE
Main Vacuum Harness / From: BA000001 		- 1 Enquire
