Exhaust Gas Recirculation (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Exhaust Gas Recirculation (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023113 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR023111 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR023107 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4654270 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4147433 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4537592 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR022772 GROMMET - EGR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
1255708 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS108306 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4408651 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR020249 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR023143 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR023022 GASKET - EGR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR023072 SEAL - EGR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR023158 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
LR033373 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR023159 TUBE - CONNECTING Enquire To Order
LR038549 TUBE - CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR022968 COOLER - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR022783 ACTUATOR - EGR COOLER BYPASS Enquire To Order
Photo Part No Description Price (each) Stock
LR022840 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR022904 SENSOR - EXHAUST GAS - TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR022841 TUBE - EGR COOLER Enquire To Order
LR034012 TUBE - EGR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR022775 GASKET - EGR OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR022777 GASKET - EGR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR022784 GASKET Enquire To Order
LR050864 GASKET - EGR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR023021 GASKET - EGR OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR023100 GASKET - EGR COOLER Enquire To Order
View All

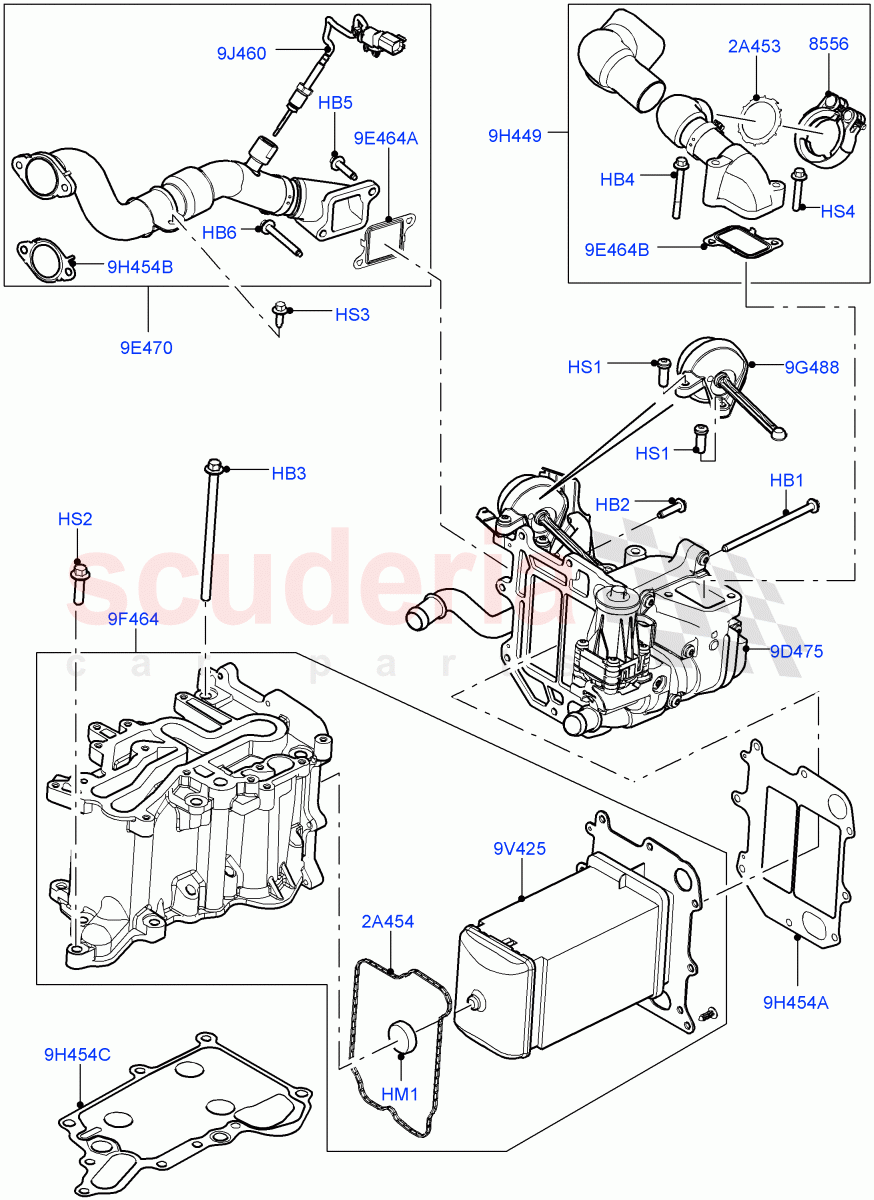

Exhaust Gas Recirculation (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR023113
BOLT
EGR Cooler To EGR Valve, M6 X 115 / From: BA000001 		- 2 Enquire
HB2 LR023111
BOLT
EGR Cooler To EGR Valve, M6 x 25MM / From: BA000001 		- 6 Enquire
HB3 LR023107
BOLT
M8 x 140MM / From: BA000001 		- 4 Enquire
HB4 4654270
BOLT
Inlet Tube To Recirculating Valve, M6 x 55MM / From: BA000001 		- 1 Enquire
HB5 4147433
BOLT
M6 X 25MM, Outlet Tube / From: BA000001 		- 1 Enquire
HB6 4537592
BOLT - HEX.HEAD
M6 x 50MM, Outlet Tube / From: BA000001 		- 1 Enquire
HM1 LR022772
GROMMET - EGR COOLER
EGR Cooler, Grommet, Rubber / From: BA000001 		- 1 Enquire
HS1 1255708
SCREW
Actuator, M6 X 20MM / From: BA000001 		- 2 Enquire
HS2 FS108306
SCREW
M8 x 30MM / From: BA000001 		- 4 Enquire
HS3 4408651
SCREW
M6 X 14MM / From: BA000001 		- 1 Enquire
HS4 LR020249
SCREW
Inlet Tube To Recirculating Valve, M6 x 35MM / From: BA000001 		- 1 Enquire
2A453 LR023022
GASKET - EGR INLET
Exhaust Manifold To EGR Cooler / From: BA000001 		- 1 Enquire
2A454 LR023072
SEAL - EGR COOLER
EGR Cooler To EGR Valve / From: BA000001 		- 1 Enquire
9D475 LR023158
VALVE - EXHAUST GAS RECIRCULATION
Includes Bypass Valve / From: BA000001 / To: CA393569 		- 1 Enquire
9D475 LR033373
VALVE - EXHAUST GAS RECIRCULATION
Includes Bypass Valve / From: CA393570 		- 1 Enquire
9E464A LR022775
GASKET - EGR OUTLET
EGR Valve To Inlet Manifold / From: BA000001 		- 1 Enquire
9E464B LR022777
GASKET - EGR INLET
Exhaust Manifold To EGR Cooler / From: BA000001 		- 1 Enquire
9E470 LR023159
TUBE - CONNECTING
Outlet / From: BA000001 / To: CA393569 		- 1 Enquire
9E470 LR038549
TUBE - CONNECTING
Outlet / From: CA393570 		- 1 Enquire
9F464 LR022968
COOLER - EGR
From: BA000001 		- 1 Enquire
9G488 LR022783
ACTUATOR - EGR COOLER BYPASS
Vacuum EGR Cooler Bypass Actuator / From: BA000001 		- 1 Enquire
9H449 LR022840
TUBE - EXHAUST GAS RECIRCULATION
From: BA000001 		- 1 Enquire
9H454A LR022784
GASKET
EGR Cooler To EGR Valve / From: BA000001 / To: CA393569 		- 1 Enquire
9H454A LR050864
GASKET - EGR COOLER
EGR Cooler To EGR Valve / From: CA393570 		- 1 Enquire
9H454B LR023021
GASKET - EGR OUTLET
Used Between EGR Valve And Intake / From: BA000001 		- 1 Enquire
9H454C LR023100
GASKET - EGR COOLER
Module - EGR System / From: BA000001 		- 1 Enquire
9J460 LR022904
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature Sensor / From: BA000001 		- 1 Enquire
9V425 LR022841
TUBE - EGR COOLER
EGR Cooler / From: BA000001 / To: CA393569 		- 1 Enquire
9V425 LR034012
TUBE - EGR COOLER
EGR Cooler / From: CA393570 		- 1 Enquire
8556 LR023143
CLAMP - HOSE
From: BA000001 		- 1 Enquire
