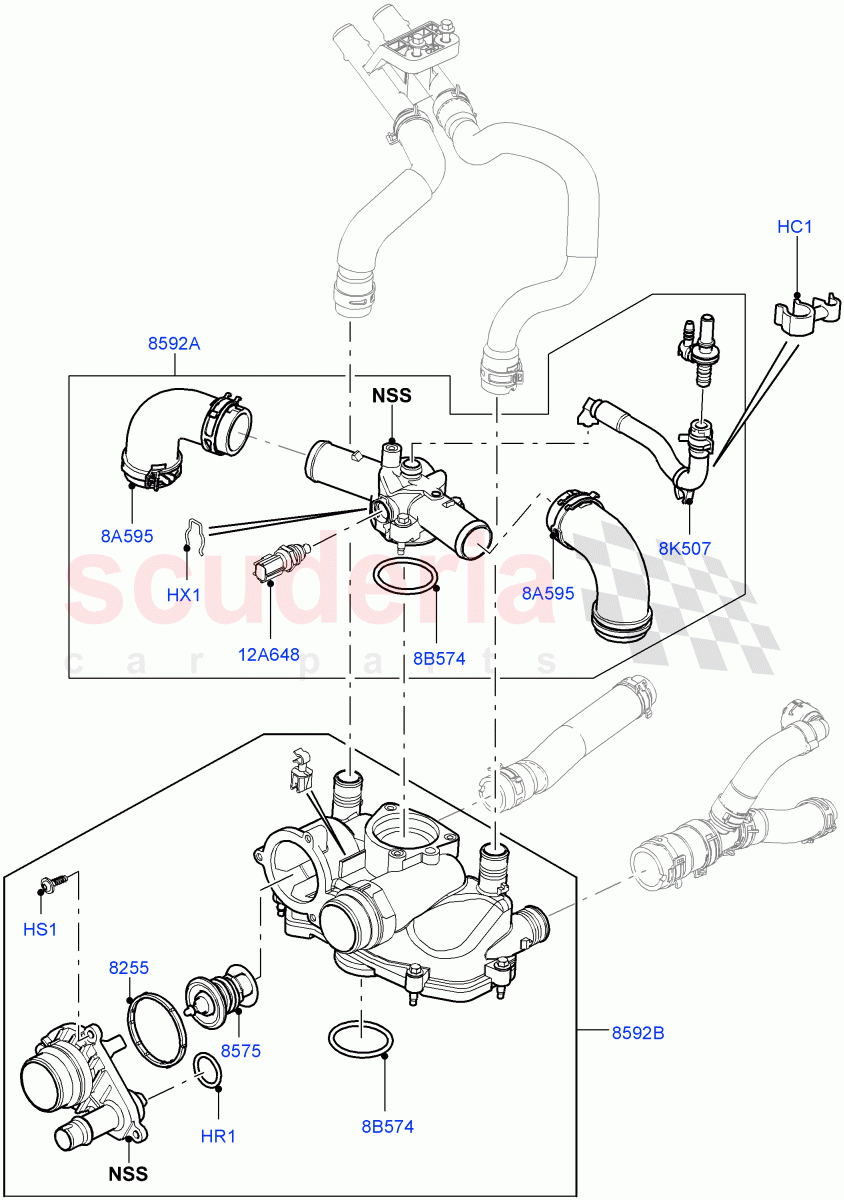

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006015	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023137	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004615	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003602	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023141	GASKET - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023138	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022690	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR186860	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023144	HOSE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023145	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023142	HOSE - COOLANT BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000241	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order
	LR044930	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR006015	CLIP	LR006015 CLIP	-	1	Enquire
HR1	LR023137	RING - SEALING	LR023137 RING - SEALING Cover, Thermostat Assy / From: BA000001	-	1	Enquire
HS1	LR004615	SCREW	LR004615 SCREW 6 x 20 / From: BA000001	-	4	Enquire
HX1	LR003602	RETAINER	LR003602 RETAINER Clip, Coolant Temperature Sensor / From: BA000001	-	1	Enquire
8A595	LR023144	HOSE - WATER OUTLET	LR023144 HOSE - WATER OUTLET To Cylinder Head / From: BA000001	-	2	Enquire
8B574	LR023145	O-RING	LR023145 O-RING Bottom, Thermostat Housing / From: BA000001	-	2	Enquire
8K507	LR023142	HOSE - COOLANT BLEED	LR023142 HOSE - COOLANT BLEED Cooling System Bleed / From: BA000001	-	1	Enquire
12A648	LR000241	SENSOR - ENGINE COOLANT TEMPERATURE	LR000241 SENSOR - ENGINE COOLANT TEMPERATURE From: BA000001 / To: CA999999	-	1	Enquire
12A648	LR044930	SENSOR - ENGINE COOLANT TEMPERATURE	LR044930 SENSOR - ENGINE COOLANT TEMPERATURE From: DA000001	-	1	Enquire
8255	LR023141	GASKET - THERMOSTAT	LR023141 GASKET - THERMOSTAT Thermostat Assy / From: BA000001	-	1	Enquire
8575	LR023138	THERMOSTAT	LR023138 THERMOSTAT From: BA000001	-	1	Enquire
8592A	LR022690	CONNECTION - WATER OUTLET	LR022690 CONNECTION - WATER OUTLET Upper / From: BA000001	-	1	Enquire
8592B	LR186860	CONNECTION - WATER OUTLET	LR186860 CONNECTION - WATER OUTLET Lower / From: BA000001	-	1	Enquire
