Cooling System Pipes And Hoses (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Cooling System Pipes And Hoses (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010328 Bolt Enquire To Order
Photo Part No Description Price (each) Stock
LR022661 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR022672 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR022660 COOLER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR022730 HOSE WITH CONNECTOR - HEATER LINE Enquire To Order
Photo Part No Description Price (each) Stock
LR022662 HOSE - RADIATOR Enquire To Order
LR025953 HOSE - RADIATOR Enquire To Order
LR029140 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR022717 HOSE - EGR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR022718 HOSE - EGR COOLER Enquire To Order
View All

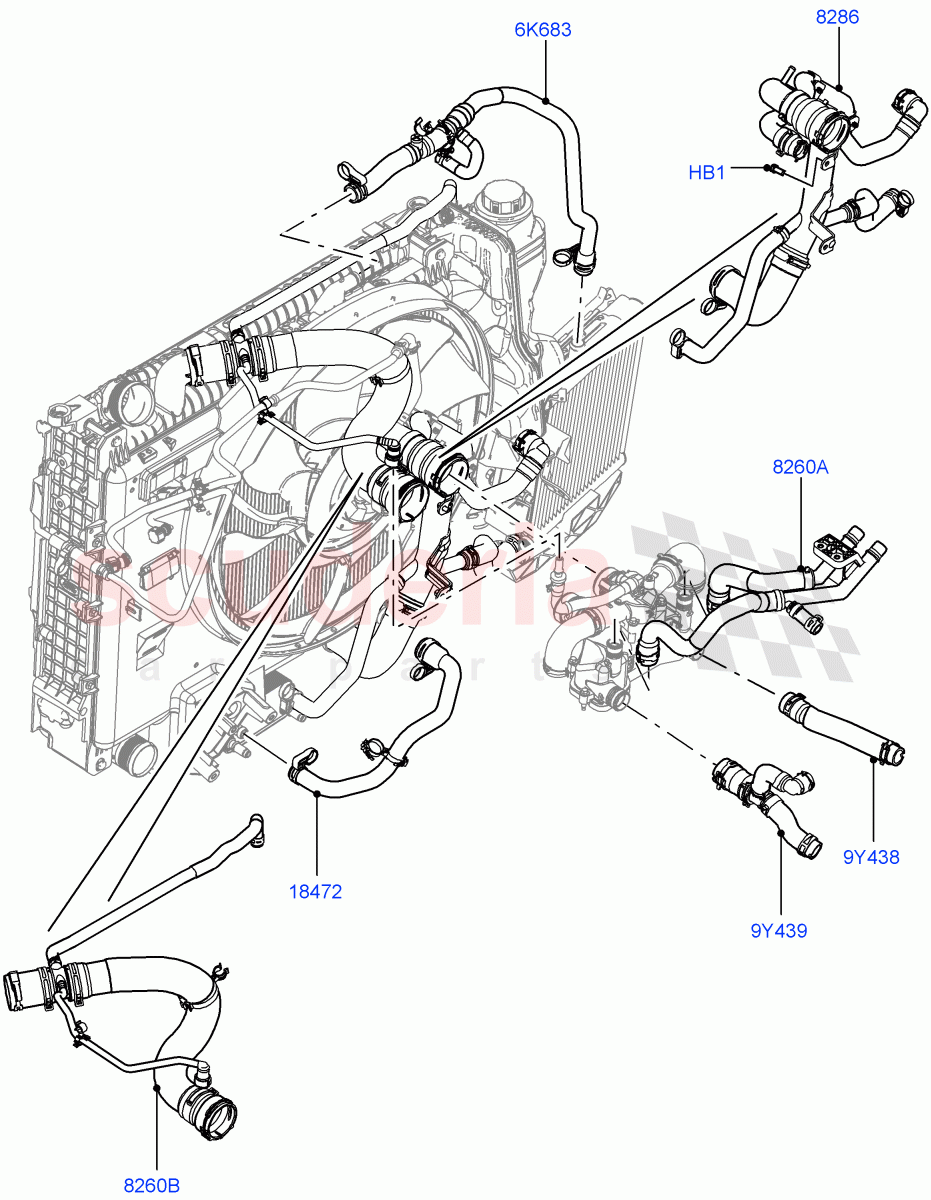

Cooling System Pipes And Hoses (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010328
Bolt
M6 x 12MM / From: BA000001 		- 2 Enquire
6K683 LR022660
COOLER - FUEL
From: BA000001 		- 1 Enquire
9Y438 LR022717
HOSE - EGR COOLER
EGR Cooler Inlet / From: BA000001 		- 1 Enquire
9Y439 LR022718
HOSE - EGR COOLER
EGR Cooler Outlet / From: BA000001 		- 1 Enquire
8260A LR022730
HOSE WITH CONNECTOR - HEATER LINE
Hose With Connector - Heater Line / From: BA000001 		- 1 Enquire
8260B LR022662
HOSE - RADIATOR
From: BA000001 / To: BA336414 		- 1 Enquire
8260B LR025953
HOSE - RADIATOR
From: BA336415 / To: BA340709 		- 1 Enquire
8260B LR029140
HOSE - RADIATOR
From: BA340710 		- 1 Enquire
8286 LR022661
HOSE - RADIATOR
From: BA000001 		- 1 Enquire
18472 LR022672
HOSE - HEATER WATER
From: BA000001 		- 1 Enquire
