View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR017966	TUBE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
9J280	WFP500560	PIPE - FUEL	WFP500560 PIPE - FUEL Feed, From Fuel Tank To Under Floor Pipes, Return / From: AA000001 / To: AA999999	-	1	Enquire
9J280	LR024681	PIPE - FUEL	LR024681 PIPE - FUEL Feed, From Fuel Tank To Under Floor Pipes, Return / From: BA000001	-	1	Enquire
9K335	WJP502080	PIPE - FUEL	WJP502080 PIPE - FUEL Fuel Tank To Fuel Burning Heater / From: AA000001 / To: AA999999	-	1	Enquire
9K335	LR023920	PIPE - FUEL	LR023920 PIPE - FUEL Fuel Tank To Fuel Burning Heater / From: BA000001	-	1	Enquire
9289A	WFP500382	TUBE	WFP500382 TUBE Feed, From Fuel Tank To Under Floor Pipes / From: AA000001 / To: AA999999	-	1	Enquire
9289A	LR025324	PIPE - FUEL	LR025324 PIPE - FUEL Feed, From Fuel Tank To Under Floor Pipes / From: BA000001	-	1	Enquire
9289B	LR017966	TUBE	LR017966 TUBE Feed, Under Floor, Vapour Line / From: AA000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

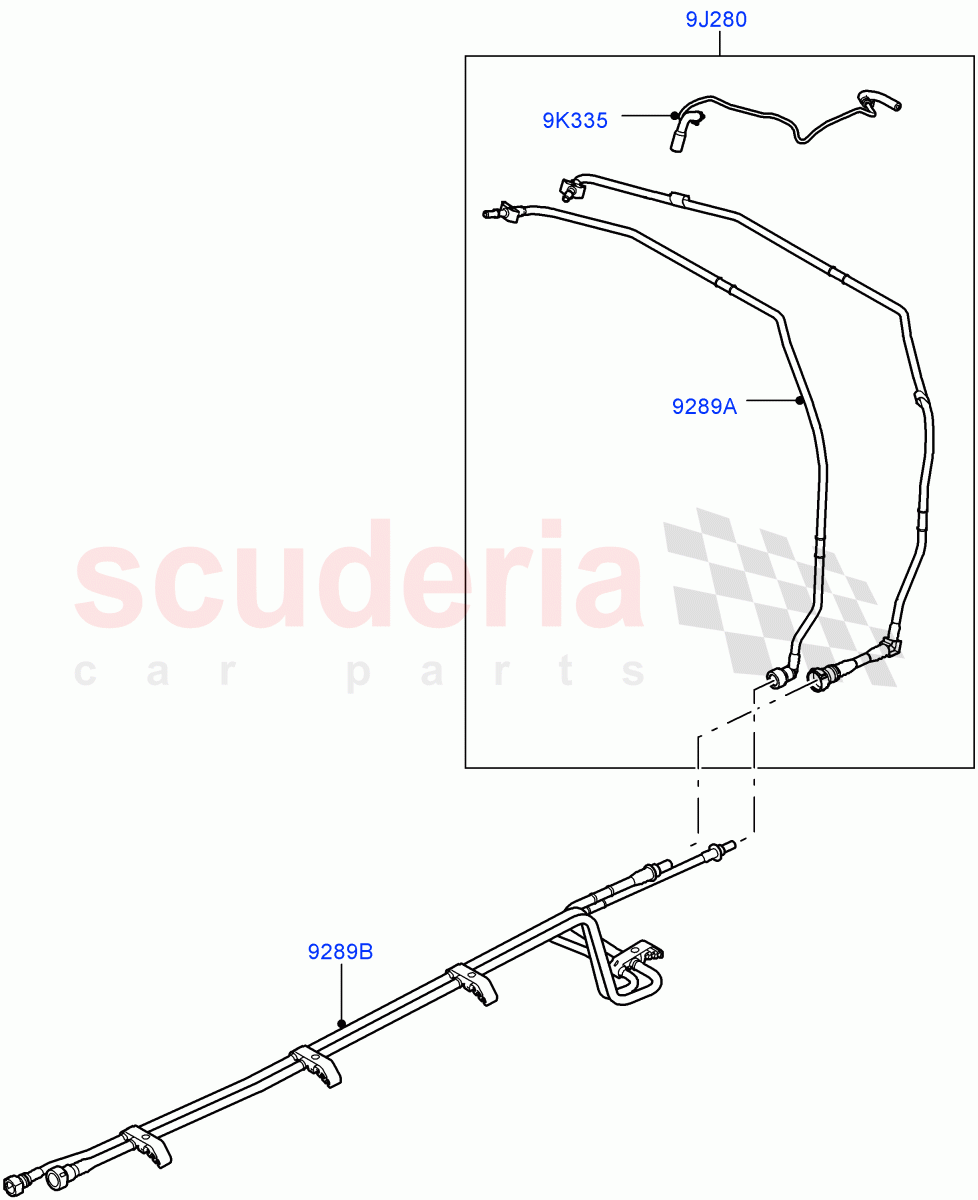

Fuel Lines (Rear Centre) (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
