Name: Fuel Lines (Front) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

View All

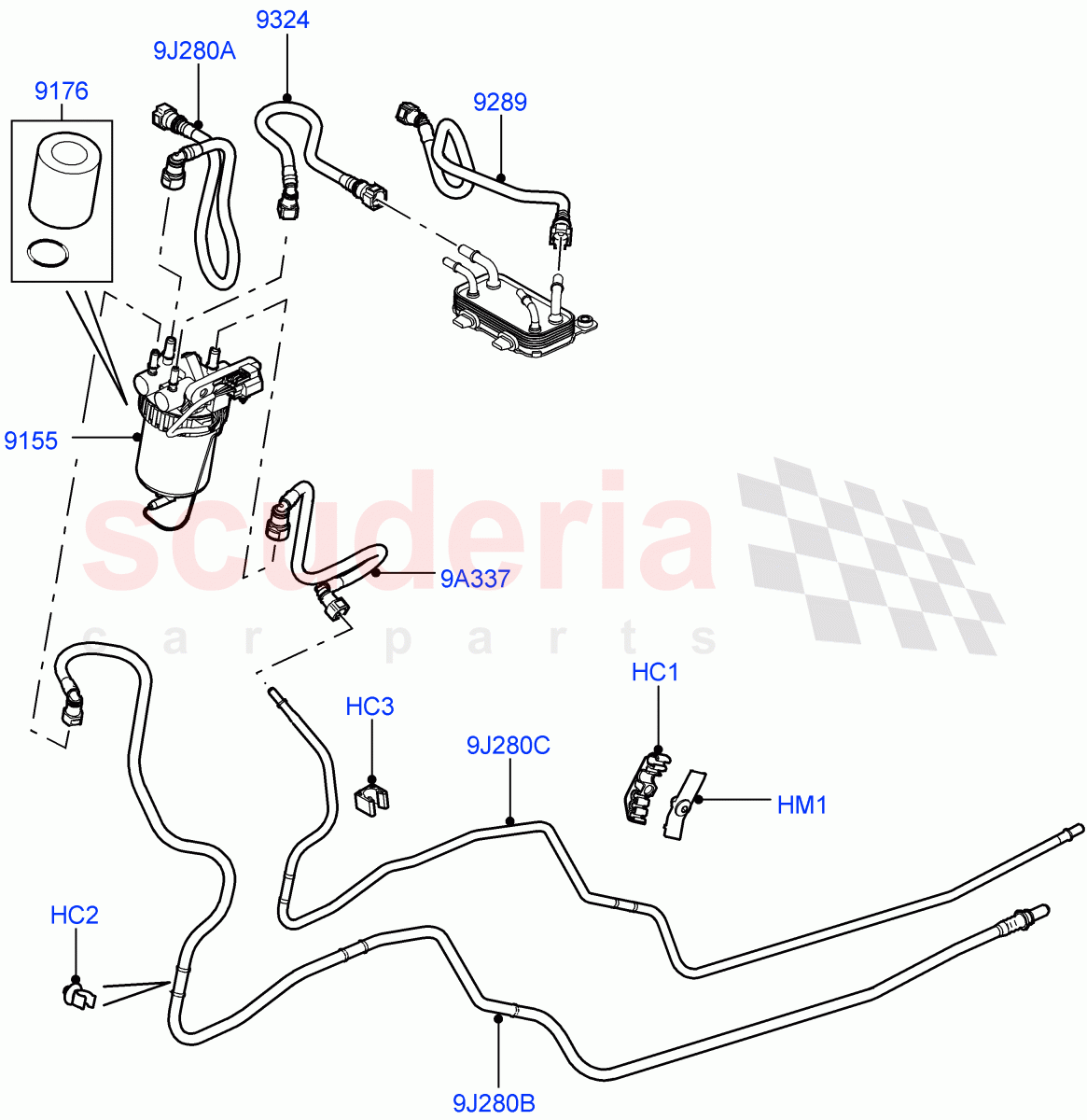

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WJC000040	CLIP - BRAKE PIPE	$13.45	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC000060	CLIP	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC500130	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WZU000010	COVER	$6.55	To Order

Photo	Part No	Description	Price (each)	Stock
	WJN500160	FILTER - FUEL	$186.87	To Order

Photo	Part No	Description	Price (each)	Stock
	WJI500030	ELEMENT - FUEL FILTER	$72.06	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501390	PIPE - FUEL	$67.18	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501380	PIPE - FUEL	$63.48	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501400	PIPE - FUEL	$73.30	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501370	PIPE - FUEL	$64.43	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	WJC000040	CLIP - BRAKE PIPE	WJC000040 CLIP - BRAKE PIPE 5 Way / From: AA000001	$13.45	4
HC2	WYC000060	CLIP	WYC000060 CLIP U-Shaped Clip / From: AA000001	$1.70	1
HC3	WYC500130	Clip	WYC500130 Clip Single / From: AA000001	-	1	Enquire
HM1	WZU000010	COVER	WZU000010 COVER Clip, Cover / From: AA000001	$6.55	4
9A337	WJP501400	PIPE - FUEL	WJP501400 PIPE - FUEL Feed, Filter / From: AA000001	$73.30	1
9J280A	WJP501370	PIPE - FUEL	WJP501370 PIPE - FUEL Feed, From Fuel Filter To Engine / From: AA000001	$64.43	1
9J280B	WJP500742	PIPE - FUEL	WJP500742 PIPE - FUEL From Fuel Filter To Under Floor Pipes, Return / From: AA000001 / To: BA334867	$179.45	1
9J280B	LR025954	PIPE - FUEL	LR025954 PIPE - FUEL From Fuel Filter To Under Floor Pipes, Return / From: BA334868	$158.29	1
9J280C	WJP501410	PIPE - FUEL	WJP501410 PIPE - FUEL Feed / From: AA000001 / To: BA334867	$47.89	1
9J280C	LR025976	PIPE - FUEL	LR025976 PIPE - FUEL Feed / From: BA334868	$47.89	1
9155	WJN500160	FILTER - FUEL	WJN500160 FILTER - FUEL With Sensor / From: AA000001	$186.87	1
9176	WJI500030	ELEMENT - FUEL FILTER	WJI500030 ELEMENT - FUEL FILTER Includes O-Ring / From: AA000001	$72.06	1
9289	WJP501390	PIPE - FUEL	WJP501390 PIPE - FUEL From Engine To Fuel Cooler, Return / From: AA000001	$67.18	1
9324	WJP501380	PIPE - FUEL	WJP501380 PIPE - FUEL From Fuel Cooler To Fuel Filter, Return / From: AA000001	$63.48	1

Fuel Lines (Front) (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
