Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

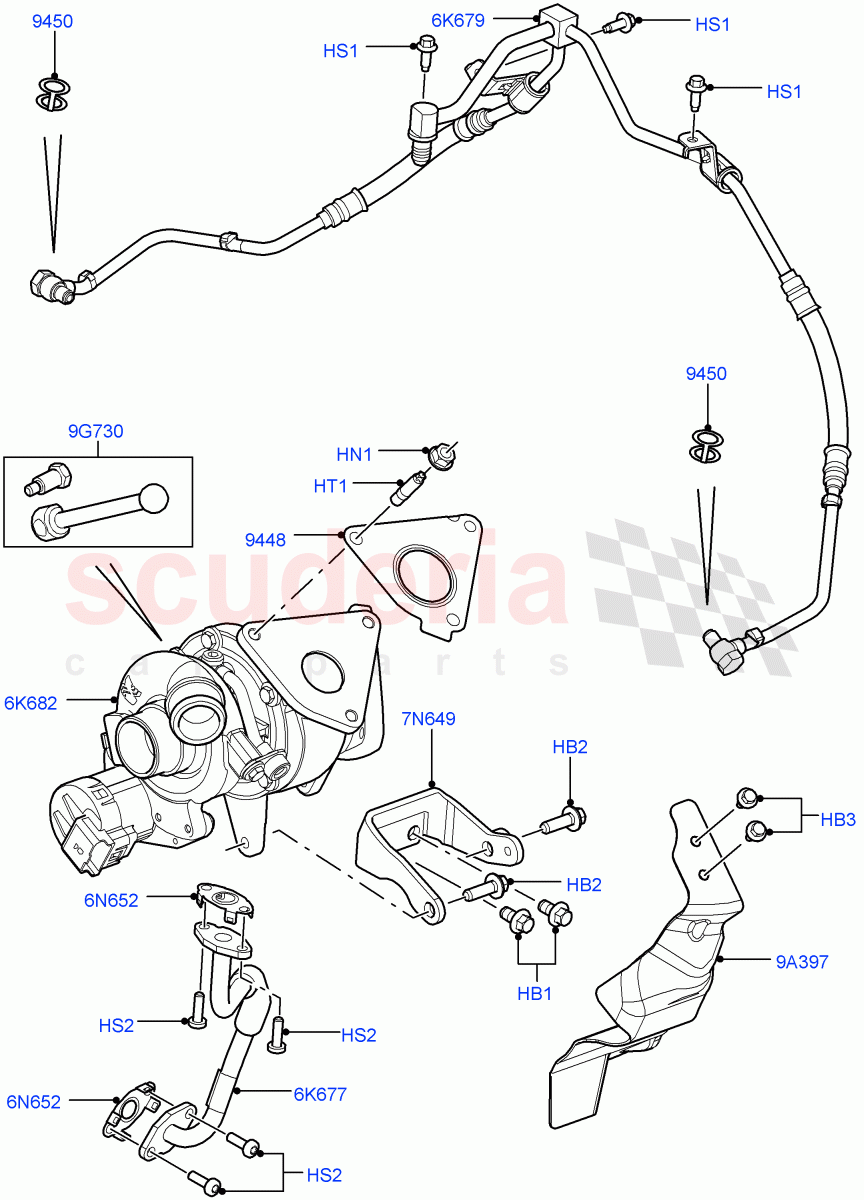

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000631	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LYG500280	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1255708	SCREW	Enquire	To Order
	LR006028	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003623	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1372726	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003786	HOSE - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006644	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004527	TURBOCHARGER	Enquire	To Order
	LR008830	TURBOCHARGER	Enquire	To Order
	LR021046	TURBOCHARGER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR003787	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004044	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PMY500020	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023090	ACTUATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1419376	BOLT	1419376 BOLT Hexagonal Head, M8 X 16MM / From: AA000001	-	2	Enquire
HB2	LR000631	BOLT - HEX.HEAD	LR000631 BOLT - HEX.HEAD M8 1.25 X 25 / From: AA000001	-	2	Enquire
HB3	LYG500280	BOLT - HEX.HEAD	LYG500280 BOLT - HEX.HEAD M6 X 14MM / From: AA000001	-	2	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / From: AA000001	-	3	Enquire
HS1	4408651	SCREW	4408651 SCREW M6 X 14MM / From: AA000001	-	3	Enquire
HS2	1255708	SCREW	1255708 SCREW M6 X 20MM / From: AA000001 / To: AA312723	-	2	Enquire
HS2	LR006028	SCREW	LR006028 SCREW M6 X 16MM, Torx / From: AA312724	-	4	Enquire
HT1	LR113358	STUD	LR113358 STUD M8 X 16MM, M8 x 8MM / From: AA000001	-	3	Enquire
6K677	LR003786	HOSE - CONNECTING	LR003786 HOSE - CONNECTING From: AA000001	-	1	Enquire
6K679	LR006644	PIPE - OIL FEED	LR006644 PIPE - OIL FEED From: AA000001	-	1	Enquire
6K682	LR004527	TURBOCHARGER	LR004527 TURBOCHARGER LH, New Part-Please Check For Reman Version / From: AA000001 / To: AA321548	-	1	Enquire
6K682	LR008830	TURBOCHARGER	LR008830 TURBOCHARGER LH, Remanufactured Part / From: AA000001 / To: AA321548	-	1	Enquire
6K682	LR021046	TURBOCHARGER	LR021046 TURBOCHARGER LH, New Part-Please Check For Reman Version / From: AA321549	-	1	Enquire
6K682	LR021656	TURBOCHARGER	LR021656 TURBOCHARGER LH, Remanufactured Part / From: AA321549	-	1	Enquire
6N652	LR003787	GASKET	LR003787 GASKET Tube - Oil Return / From: AA000001	-	2	Enquire
7N649	LR004044	BRACKET	LR004044 BRACKET Turbocharger Assembly / From: AA000001	-	1	Enquire
9A397	PMY500020	SHIELD	PMY500020 SHIELD Turbocharger Assembly / From: AA000001	-	1	Enquire
9G730	LR023090	ACTUATOR	LR023090 ACTUATOR LH, Incl. pin, Includes Rod, Service Kit / From: AA000001 / To: AA316114	-	1	Enquire
9448	LR003623	GASKET - EXHAUST MANIFOLD	LR003623 GASKET - EXHAUST MANIFOLD Turbocharger Assembly / From: AA000001	-	1	Enquire
9450	1372726	GASKET - OIL TUBE	1372726 GASKET - OIL TUBE Banjo Washer / From: AA000001	-	2	Enquire
