Fuel Injection Pump - Diesel (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Fuel Injection Pump - Diesel (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4567977 BOLT $3.74 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
LR003877 GASKET $16.37 To Order
Photo Part No Description Price (each) Stock
1418843 BOLT $7.15 To Order
Photo Part No Description Price (each) Stock
1420986 BOLT $17.94 To Order
Photo Part No Description Price (each) Stock
1418958 BRACKET $39.13 To Order
Photo Part No Description Price (each) Stock
LR009803 BRACKET $23.03 To Order
Photo Part No Description Price (each) Stock
LR009737 PUMP - FUEL INJECTION $2,190.16 To Order
Photo Part No Description Price (each) Stock
1418841 GEAR - FUEL INJECTION PUMP DRIVE $79.19 To Order
View All

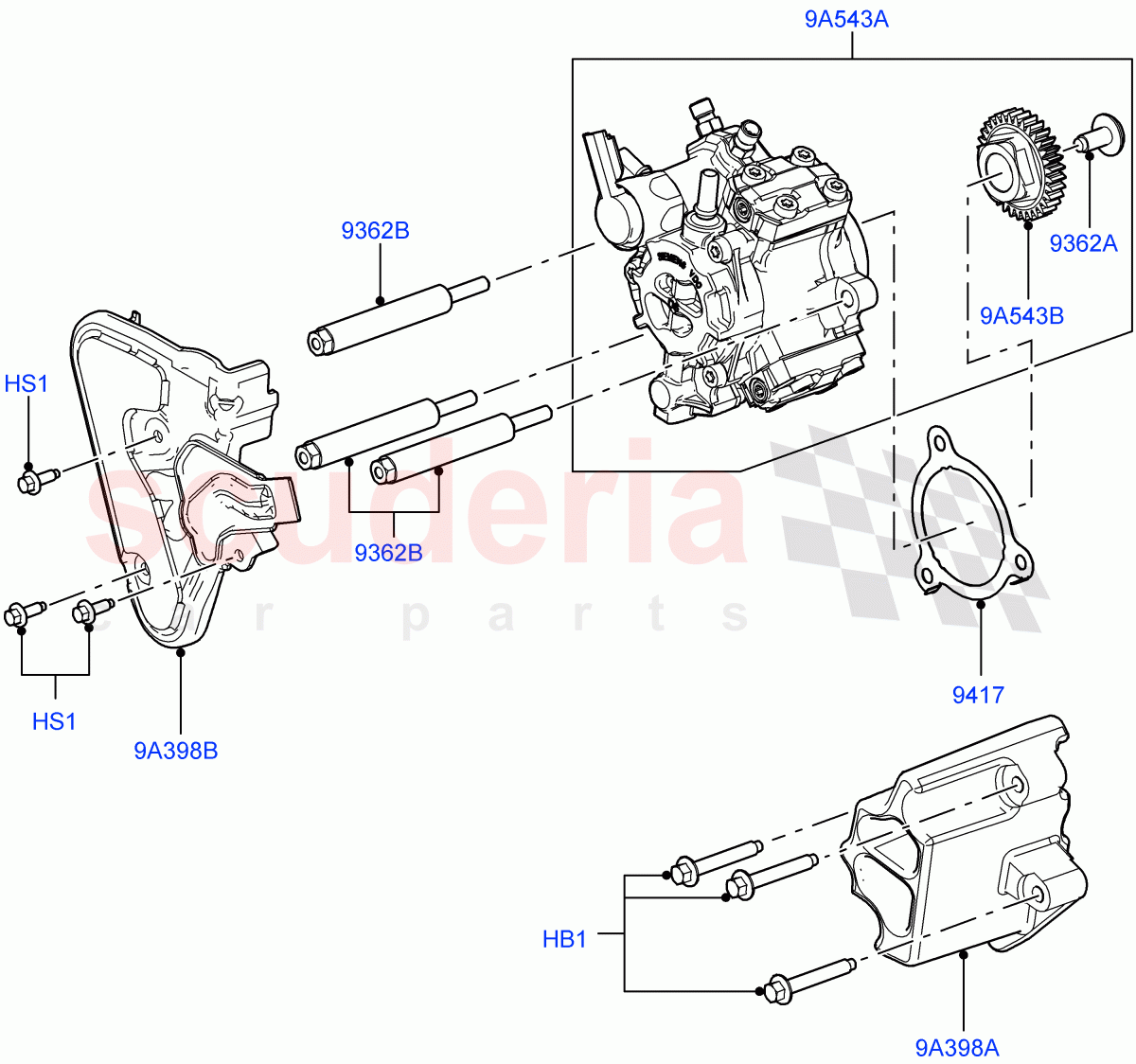

Fuel Injection Pump - Diesel (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4567977
BOLT
M8 X 50 / From: AA000001 		$3.74 3
HS1 4364422
SCREW
M6 X 16MM / From: AA000001 		$1.30 3
9A398A 1418958
BRACKET
From: AA000001 		$39.13 1
9A398B LR009803
BRACKET
From: AA000001 		$23.03 1
9A543A LR009737
PUMP - FUEL INJECTION
From: AA000001 		$2,190.16 1
9A543B 1418841
GEAR - FUEL INJECTION PUMP DRIVE
Fuel Pump Gear / From: AA000001 		$79.19 1
9362A 1418843
BOLT
Fuel Pump Gear / From: AA000001 		$7.15 1
9362B 1420986
BOLT
Fuel Pump To Cylinder Head / From: AA000001 		$17.94 3
9417 LR003877
GASKET
For Fuel Pump / From: AA000001 		$16.37 1
