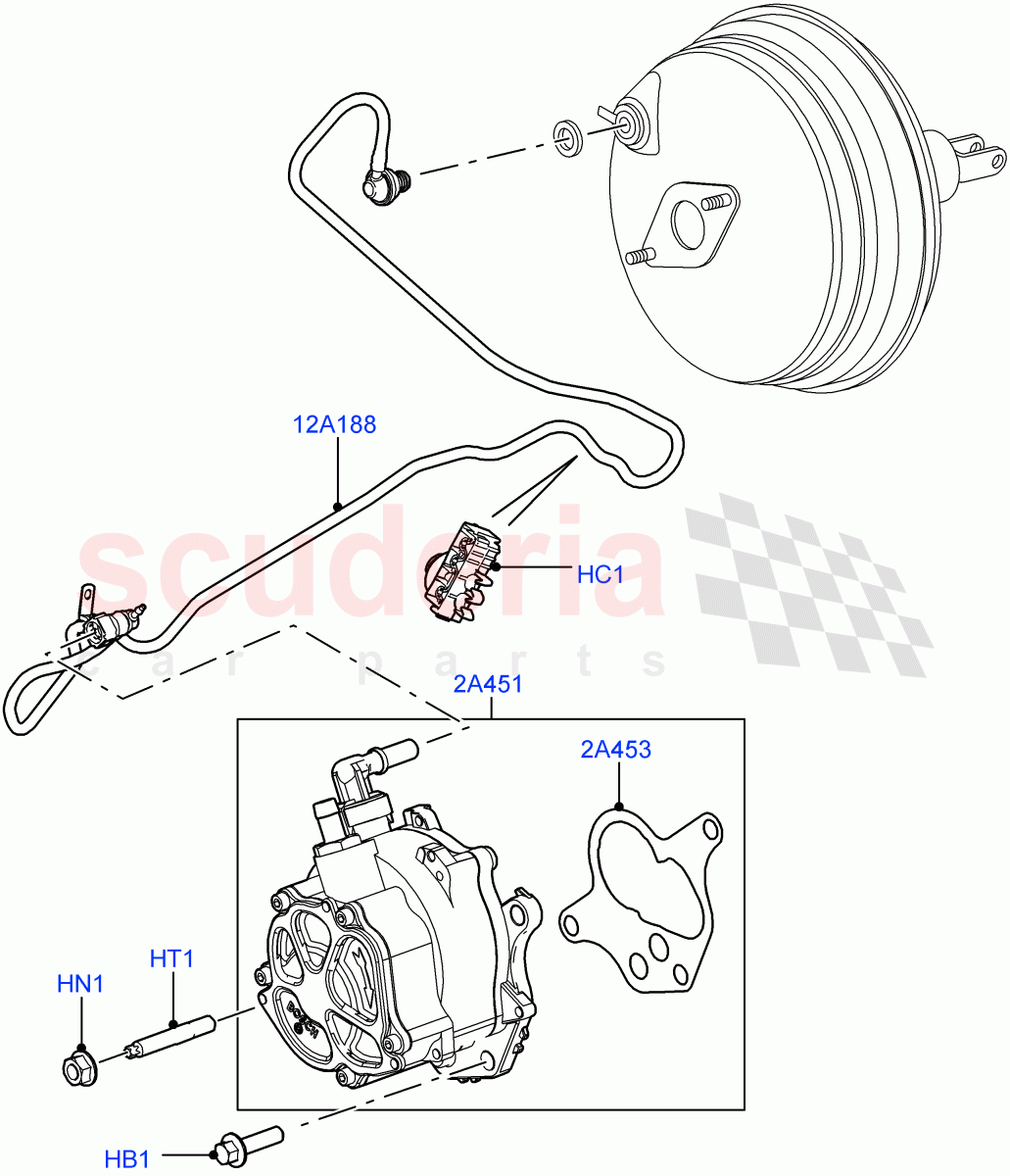

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGK500071	CLIP - BRAKE PIPE	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108042	NUT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	1331241	STUD	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001852	PUMP - VACUUM	$981.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004014	GASKET	$33.70	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	SGK500071	CLIP - BRAKE PIPE	SGK500071 CLIP - BRAKE PIPE Double / From: AA000001	$6.02	2
HN1	FN108042	NUT	FN108042 NUT M8 / From: AA000001	$1.34	3
HT1	1331241	STUD	1331241 STUD M8 X 15 + M8 X 35 / From: AA000001	$1.05	3
2A451	LR001852	PUMP - VACUUM	LR001852 PUMP - VACUUM From: AA000001	$981.07	1
2A453	LR004014	GASKET	LR004014 GASKET From: AA000001	$33.70	1
12A188	LR011528	MANIFOLD - VACUUM SUPPLY	LR011528 MANIFOLD - VACUUM SUPPLY LHD / Pump To Booster / From: AA000001 / To: AA324552	$51.87	1
12A188	LR011529	MANIFOLD - VACUUM SUPPLY	LR011529 MANIFOLD - VACUUM SUPPLY RHD / Pump To Booster / From: AA000001	$56.19	1
12A188	LR023076	MANIFOLD - VACUUM SUPPLY	LR023076 MANIFOLD - VACUUM SUPPLY LHD / Pump To Booster / From: AA324553	$51.87	1

Haven't found what you're looking for?

View Cart / Checkout

Vacuum Control And Air Injection (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
