Exhaust Gas Recirculation (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Exhaust Gas Recirculation (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1316028 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR004123 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4115041 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR003898 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
RYP500960 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR006115 THERMOSTAT - EGR Enquire To Order
Photo Part No Description Price (each) Stock
1418926 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR004529 TUBE - EGR VALVE TO INLET MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
1418949 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR018321 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR018322 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR003831 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR004250 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR003828 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR003858 COOLER - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR003857 COOLER - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR006966 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR006965 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
View All

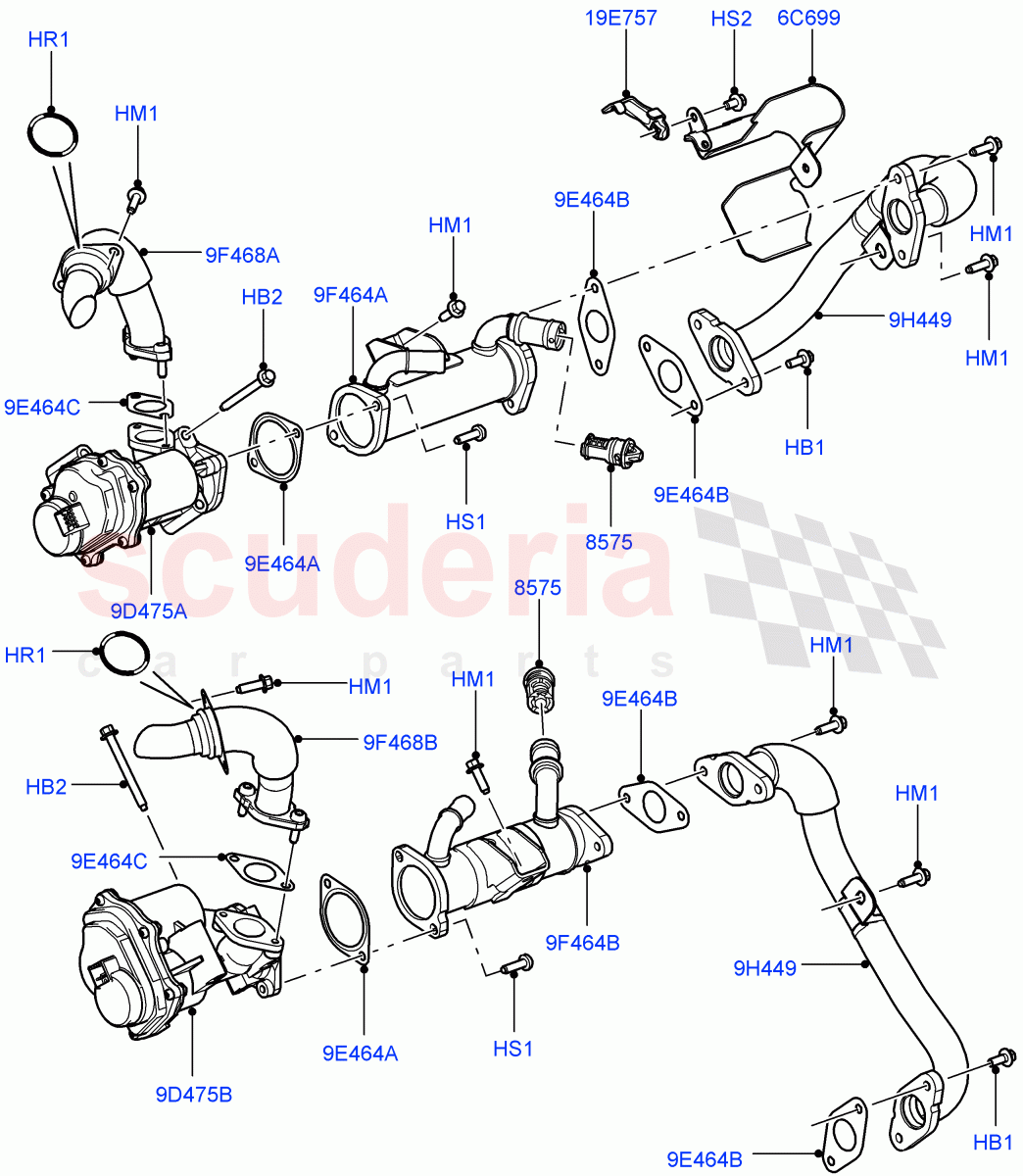

Exhaust Gas Recirculation (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1316028
BOLT
M6 X 16MM / From: AA000001 		- 4 Enquire
HB2 LR004123
BOLT
4 Per Package, M6 x 60MM / From: AA000001 		- 6 Enquire
HM1 4115041
BOLT
M6 X 18.5 / From: AA000001 		- 16 Enquire
HR1 LR003898
RING - SEALING 		- 1 Enquire
HS1 RYP500960
SCREW
M6 X 16MM, Torx / From: AA000001 		- 4 Enquire
6C699 1418926
SHIELD
EGR Valve, Inlet Pipe / From: AA000001 		- 1 Enquire
9D475A LR018321
VALVE - EXHAUST GAS RECIRCULATION
RH / From: AA000001 		- 1 Enquire
9D475B LR018322
VALVE - EXHAUST GAS RECIRCULATION
LH / From: AA000001 		- 1 Enquire
9E464A LR003831
GASKET
EGR Cooler, EGR Valve / From: AA000001 		- 2 Enquire
9E464B LR004250
GASKET
EGR Cooler, Inlet Pipe / From: AA000001 		- 4 Enquire
9E464C LR003828
GASKET
EGR Valve, Outlet pipe / From: AA000001 		- 1 Enquire
9F464A LR003858
COOLER - EGR
RH / From: AA000001 		- 1 Enquire
9F464B LR003857
COOLER - EGR
LH / From: AA000001 		- 1 Enquire
9F468A LR006966
TUBE - EXHAUST GAS RECIRCULATION
RH / From: AA000001 		- 1 Enquire
9F468B LR006965
TUBE - EXHAUST GAS RECIRCULATION
LH / From: AA000001 		- 1 Enquire
9H449 LR004529
TUBE - EGR VALVE TO INLET MANIFOLD
From: AA000001 		- 2 Enquire
19E757 1418949
BRACKET
Heat Shield / From: AA000001 		- 1 Enquire
8575 LR006115
THERMOSTAT - EGR
EGR Cooler / From: AA000001 		- 2 Enquire
