Thermostat/Housing & Related Parts (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Thermostat/Housing & Related Parts (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1255708 SCREW $8.94 To Order
Photo Part No Description Price (each) Stock
LR003602 RETAINER $1.16 To Order
Photo Part No Description Price (each) Stock
LR003341 THERMOSTAT $26.86 To Order
Photo Part No Description Price (each) Stock
LR003520 THERMOSTAT $28.42 To Order
Photo Part No Description Price (each) Stock
LR004318 CONNECTION - WATER OUTLET $165.35 To Order
Photo Part No Description Price (each) Stock
LR003339 RETAINER $2.85 To Order
Photo Part No Description Price (each) Stock
LR004320 HOSE $30.12 To Order
Photo Part No Description Price (each) Stock
LR003521 KIT - EGR SYSTEM MODIFICATION $187.89 To Order
Photo Part No Description Price (each) Stock
LR003335 VALVE $105.68 To Order
Photo Part No Description Price (each) Stock
LR000241 SENSOR - ENGINE COOLANT TEMPERATURE $21.91 To Order
LR044930 SENSOR - ENGINE COOLANT TEMPERATURE $58.42 To Order
Photo Part No Description Price (each) Stock
LR003336 SEAL $5.79 To Order
Photo Part No Description Price (each) Stock
LR003338 SEAL $36.06 To Order
Photo Part No Description Price (each) Stock
LR003337 SEAL $5.62 To Order
Photo Part No Description Price (each) Stock
LR004319 O-RING $5.81 To Order
View All

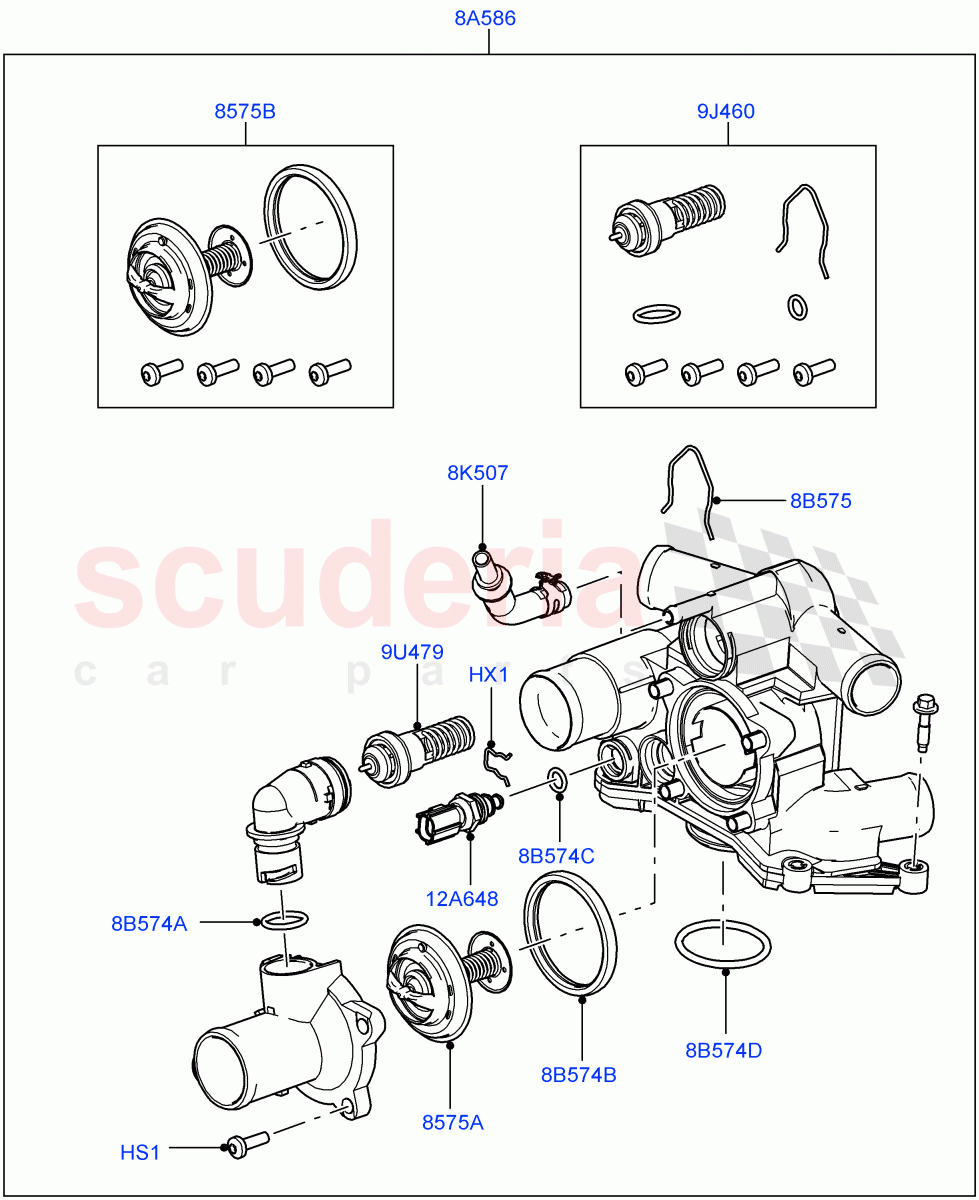

Thermostat/Housing & Related Parts (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 1255708
SCREW
M6 X 20MM / From: AA000001 		$8.94 4
HX1 LR003602
RETAINER
Clip, Coolant Temperature Sensor / From: AA000001 		$1.16 1
8A586 LR004318
CONNECTION - WATER OUTLET
From: AA000001 		$165.35 1
8B574A LR003336
SEAL
Cover, Thermostat Assy / From: AA000001 		$5.79 1
8B574B LR003338
SEAL
Thermostat Assy / From: AA000001 		$36.06 1
8B574C LR003337
SEAL
Coolant Temperature Sensor / From: AA000001 		$5.62 1
8B574D LR004319
O-RING
Thermostat Housing / From: AA000001 		$5.81 1
8B575 LR003339
RETAINER
EGR Valve / From: AA000001 		$2.85 1
8K507 LR004320
HOSE
From: AA000001 		$30.12 1
9J460 LR003521
KIT - EGR SYSTEM MODIFICATION
EGR Valve, Service Kit / From: AA000001 		$187.89 1
9U479 LR003335
VALVE
EGR Valve / From: AA000001 		$105.68 1
12A648 LR000241
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 		$21.91 1
12A648 LR044930
SENSOR - ENGINE COOLANT TEMPERATURE
From: DA000001 		$58.42 1
8575A LR003341
THERMOSTAT
From: AA000001 		$26.86 1
8575B LR003520
THERMOSTAT
Service Kit / From: AA000001 		$28.42 1
