Name: Cooling System Pipes And Hoses (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

Cooling System Pipes And Hoses (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Cooling System Pipes And Hoses (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

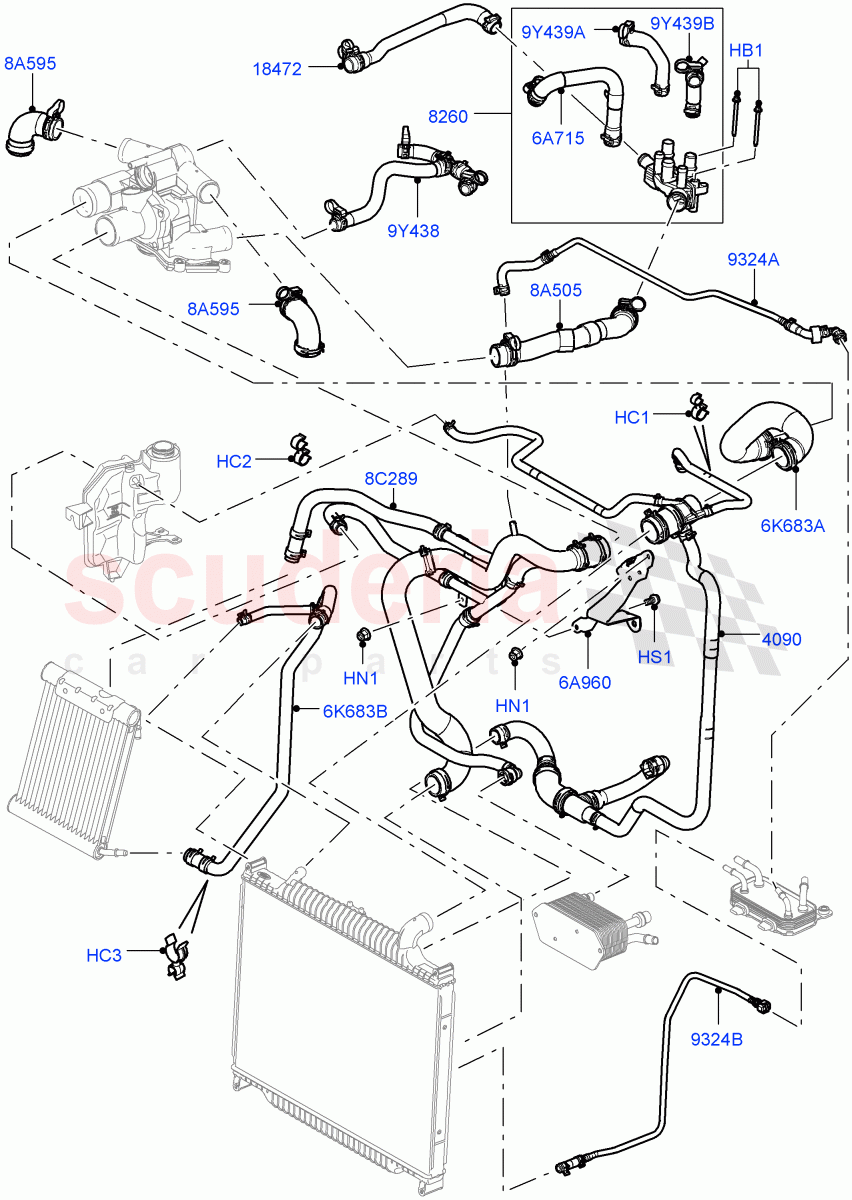

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419375	BOLT	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC500270	CLIP - HOSE	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR500210	CLIP	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC500320	CLIP	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS110166P	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH503180	HOSE - VENT	$300.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005819	CONNECTOR	$141.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008276	HOSE - HEATER WATER	$27.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005821	HOSE	$33.63	To Order

Photo	Part No	Description	Price (each)	Stock
	PEU500190	BRACKET	$11.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008202	HOSE	$63.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008237	HOSE - WATER OUTLET	$49.70	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH503210	HOSE	$1,077.66	To Order

Photo	Part No	Description	Price (each)	Stock
	PEH500430	HOSE	$135.18	To Order

Photo	Part No	Description	Price (each)	Stock
	PIH500052	HOSE	$57.81	To Order

Photo	Part No	Description	Price (each)	Stock
	1418972	HOSE	$60.56	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH503200	HOSE	$56.61	To Order

Photo	Part No	Description	Price (each)	Stock
	PIH500180	HOSE ASSY	$128.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003648	HOSE	$17.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005822	HOSE	$13.95	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1419375	BOLT	1419375 BOLT M6 X 71 / From: AA000001	$4.30	2
HC1	PYC500270	CLIP - HOSE	PYC500270 CLIP - HOSE Double / From: AA000001	$1.99	1
HC2	YQR500210	CLIP	YQR500210 CLIP Double / From: AA000001	$0.76	1
HC3	PYC500320	CLIP	PYC500320 CLIP Double / From: AA000001	$2.27	1
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 / From: AA000001 IN STOCK	$0.69	2
HS1	FS110166P	SCREW	FS110166P SCREW M10 x 16MM / From: AA000001	$0.76	1
6A715	LR005821	HOSE	LR005821 HOSE Engine, Oil Cooler, Outlet Tube / From: AA000001	$33.63	1
6A960	PEU500190	BRACKET	PEU500190 BRACKET From: AA000001	$11.08	1
6K683A	PCH503200	HOSE	PCH503200 HOSE Upper / From: AA000001	$56.61	1
6K683B	PIH500180	HOSE ASSY	PIH500180 HOSE ASSY Radiator To Cooler / From: AA000001	$128.94	1
8A505	LR008202	HOSE	LR008202 HOSE Connector, Inlet Tube / From: AA000001	$63.56	1
8A595	LR008237	HOSE - WATER OUTLET	LR008237 HOSE - WATER OUTLET To Cylinder Head / From: AA000001	$49.70	2
8C289	PCH503210	HOSE	PCH503210 HOSE Bottom, From Reservoir To Tube, Transmission Cooler Line / From: AA000001	$1,077.66	1
9Y438	1418972	HOSE	1418972 HOSE Cooled EGR, Inlet / From: AA000001	$60.56	1
9Y439A	LR003648	HOSE	LR003648 HOSE Cooled EGR / From: AA000001	$17.10	1
9Y439B	LR005822	HOSE	LR005822 HOSE Cooled EGR / From: AA000001	$13.95	1
4090	PCH503180	HOSE - VENT	PCH503180 HOSE - VENT From: AA000001	$300.36	1
8260	LR005819	CONNECTOR	LR005819 CONNECTOR Connector / From: AA000001	$141.06	1
9324A	PEH500430	HOSE	PEH500430 HOSE For Fuel Cooler, Return / From: AA000001	$135.18	1
9324B	PIH500052	HOSE	PIH500052 HOSE Feed, For Fuel Cooler / From: AA000001	$57.81	1
18472	LR008276	HOSE - HEATER WATER	LR008276 HOSE - HEATER WATER From: AA000001	$27.38	1
