Name: Rear Axle (4.4L DOHC DITC V8 Diesel, Rear Axle Open Style Differential, 3.0 V6 D Gen2 Mono Turbo, 3.0L DOHC GDI SC V6 PETROL, 5.0L OHC SGDI NA V8 Petrol - AJ133, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOGA999999)
Rating: 5.0 (1 reviews)

Rear Axle (4.4L DOHC DITC V8 Diesel, Rear Axle Open Style Differential, 3.0 V6 D Gen2 Mono Turbo, 3.0L DOHC GDI SC V6 PETROL, 5.0L OHC SGDI NA V8 Petrol - AJ133, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOGA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Rear Axle (4.4L DOHC DITC V8 Diesel, Rear Axle Open Style Differential, 3.0 V6 D Gen2 Mono Turbo,...

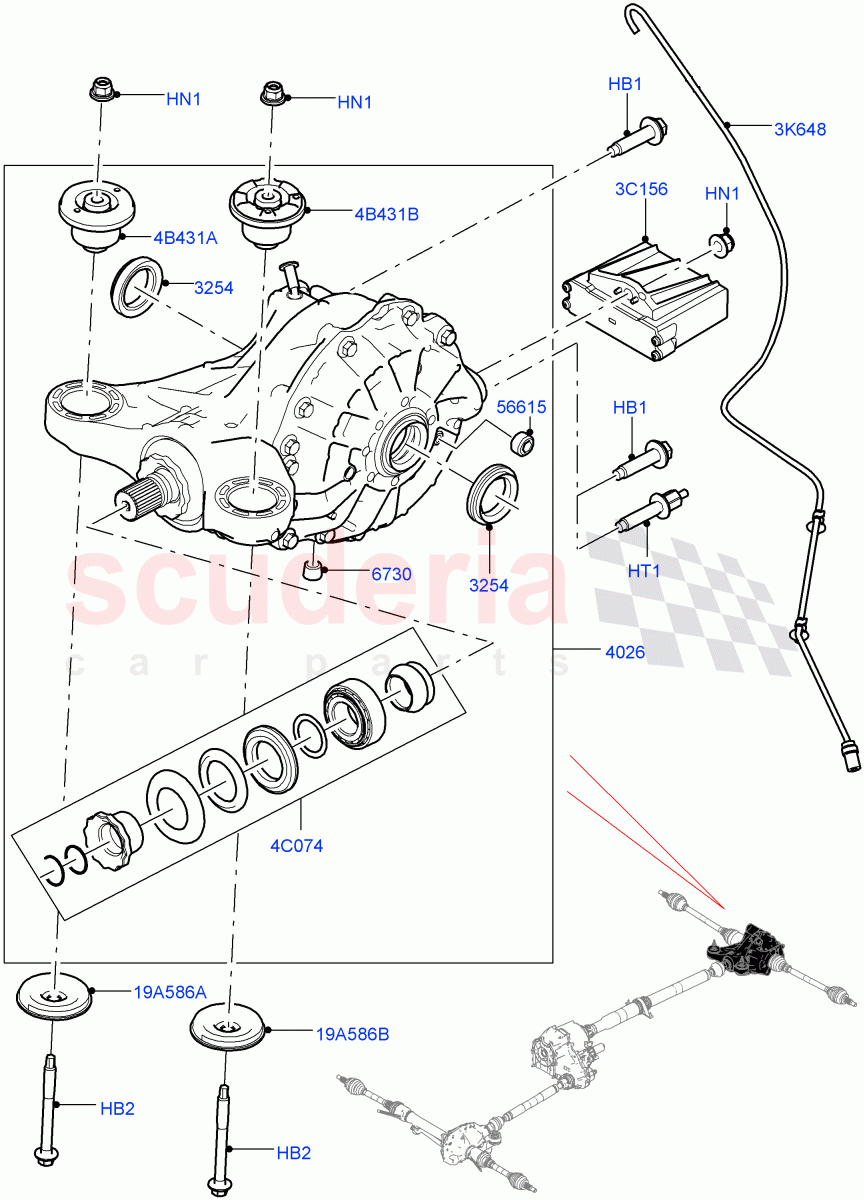

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033214	BOLT	$4.27	IN STOCK
	LR033214	BOLT	$4.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024747	BOLT	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500510	NUT - HEX.	$3.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053501	STUD - THREADED	$8.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158113	SEAL - OIL	$21.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039510	DIFFERENTIAL - REAR	$2,433.30	To Order
	LR039511	DIFFERENTIAL - REAR	$3,069.29	To Order
	LR051427	DIFFERENTIAL - REAR	$3,011.31	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TYB500110	PLUG - OIL DRAIN	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058291	DAMPER - DAMPING MASS	$273.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034527	TUBE - BREATHER	$29.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068951	KIT - PINION REPAIR	$179.65	To Order

Photo	Part No	Description	Price (each)	Stock
	TYB500060	PLUG - FILLER	$3.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033261	INSULATOR - BUSH TYPE	$22.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033262	INSULATOR - BUSH TYPE	$22.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033211	PLATE - DIFFERENTAL MOUNTING	$34.91	To Order
	LR055252	PLATE - DIFFERENTAL MOUNTING	$33.28	To Order
	LR072608	PLATE - DIFFERENTAL MOUNTING	$28.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033213	PLATE - DIFFERENTAL MOUNTING	$34.91	To Order
	LR072607	PLATE - DIFFERENTAL MOUNTING	$28.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033214	BOLT IN STOCK	LR033214 BOLT Bolt And Washer, Hexagonal Head, M14 X 55MM / To: DA999999 IN STOCK	$4.27	2
HB1	LR033214	BOLT IN STOCK	LR033214 BOLT Bolt And Washer, Hexagonal Head, M14 X 55MM / From: EA000001 IN STOCK	$4.27	1
HB2	LR024747	BOLT	LR024747 BOLT Hexagonal Head, M12 X 112 / To: GA999999	$3.24	2
HN1	RYH500510	NUT - HEX.	RYH500510 NUT - HEX. M12, Nut And Washer	$3.62	3
HT1	LR053501	STUD - THREADED	LR053501 STUD - THREADED M14 X 55 + M8 X 21 / From: EA000001	$8.29	1
3C156	LR058291	DAMPER - DAMPING MASS IN STOCK	LR058291 DAMPER - DAMPING MASS IN STOCK	$273.67	1
3K648	LR034527	TUBE - BREATHER	LR034527 TUBE - BREATHER	$29.62	1
4B431A	LR033261	INSULATOR - BUSH TYPE	LR033261 INSULATOR - BUSH TYPE RH	$22.38	1
4B431B	LR033262	INSULATOR - BUSH TYPE	LR033262 INSULATOR - BUSH TYPE LH	$22.38	1
4C074	LR068951	KIT - PINION REPAIR	LR068951 KIT - PINION REPAIR Includes Seal	$179.65	1
19A586A	LR033211	PLATE - DIFFERENTAL MOUNTING	LR033211 PLATE - DIFFERENTAL MOUNTING RH / To: FA203255	$34.91	1
19A586A	LR055252	PLATE - DIFFERENTAL MOUNTING	LR055252 PLATE - DIFFERENTAL MOUNTING RH / From: FA203256 / To: FA221530	$33.28	1
19A586A	LR072608	PLATE - DIFFERENTAL MOUNTING	LR072608 PLATE - DIFFERENTAL MOUNTING RH / From: FA221531	$28.53	1
19A586B	LR033213	PLATE - DIFFERENTAL MOUNTING	LR033213 PLATE - DIFFERENTAL MOUNTING LH / To: FA221530	$34.91	1
19A586B	LR072607	PLATE - DIFFERENTAL MOUNTING	LR072607 PLATE - DIFFERENTAL MOUNTING LH / From: FA221531	$28.53	1
3254	LR158113	SEAL - OIL	LR158113 SEAL - OIL Driveshaft	$21.80	2
4026	LR039510	DIFFERENTIAL - REAR	LR039510 DIFFERENTIAL - REAR 5.0L OHC SGDI SC V8 Petrol - AJ133 / New Part-Please Check For Reman Version / To: GA249552	$2,433.30	1
4026	LR039511	DIFFERENTIAL - REAR	LR039511 DIFFERENTIAL - REAR 5.0L OHC SGDI NA V8 Petrol - AJ133 / New Part-Please Check For Reman Version / To: GA249552	$3,069.29	1
4026	LR051427	DIFFERENTIAL - REAR	LR051427 DIFFERENTIAL - REAR 5.0L OHC SGDI SC V8 Petrol - AJ133 / Remanufactured Part / To: GA249552	$3,011.31	1
4026	LR051428	DIFFERENTIAL - REAR	LR051428 DIFFERENTIAL - REAR 5.0L OHC SGDI NA V8 Petrol - AJ133 / Remanufactured Part / To: GA249552	$2,065.84	1
4026	LR041963	DIFFERENTIAL - REAR	LR041963 DIFFERENTIAL - REAR 3.0L DOHC GDI SC V6 PETROL / New Part-Please Check For Reman Version / To: GA249552	$1,936.97	1
4026	LR070149	DIFFERENTIAL - REAR	LR070149 DIFFERENTIAL - REAR 5.0L OHC SGDI SC V8 Petrol - AJ133 / New Part-Please Check For Reman Version / From: GA249553 / To: GA999999	$2,868.25	1
4026	LR070148	DIFFERENTIAL - REAR	LR070148 DIFFERENTIAL - REAR 5.0L OHC SGDI NA V8 Petrol - AJ133 / New Part-Please Check For Reman Version / From: GA249553 / To: GA999999	$2,868.25	1
4026	LR070146	DIFFERENTIAL - REAR	LR070146 DIFFERENTIAL - REAR 3.0L DOHC GDI SC V6 PETROL / New Part-Please Check For Reman Version / From: GA249553 / To: GA999999	$2,868.25	1
4026	LR039508	DIFFERENTIAL - REAR	LR039508 DIFFERENTIAL - REAR 4.4L DOHC DITC V8 Diesel / New Part-Please Check For Reman Version / To: GA249552	$2,373.72	1
4026	LR070151	DIFFERENTIAL - REAR	LR070151 DIFFERENTIAL - REAR 4.4L DOHC DITC V8 Diesel / New Part-Please Check For Reman Version / From: GA249553	$2,868.25	1
4026	LR039509	DIFFERENTIAL - REAR	LR039509 DIFFERENTIAL - REAR 3.0 V6 Diesel / New Part-Please Check For Reman Version / To: GA249552	$2,373.72	1
4026	LR070150	DIFFERENTIAL - REAR	LR070150 DIFFERENTIAL - REAR 3.0 V6 Diesel / New Part-Please Check For Reman Version / From: GA249553 / To: GA999999	$2,868.25	1
4026	LR051425	DIFFERENTIAL - REAR	LR051425 DIFFERENTIAL - REAR 4.4L DOHC DITC V8 Diesel / Remanufactured Part / To: GA249552	$2,981.51	1
4026	LR070154	DIFFERENTIAL - REAR	LR070154 DIFFERENTIAL - REAR 5.0L OHC SGDI NA V8 Petrol - AJ133 / Remanufactured Part / From: GA249553 / To: GA999999	$1,893.05	1
4026	LR124947	DIFFERENTIAL - REAR	LR124947 DIFFERENTIAL - REAR 3.0 V6 Diesel / Remanufactured Part / To: GA999999	$1,893.05	1
4026	LR124948	DIFFERENTIAL - REAR	LR124948 DIFFERENTIAL - REAR 5.0L OHC SGDI SC V8 Petrol - AJ133 / Remanufactured Part / From: GA249553 / To: GA999999	$1,893.05	1
4026	LR124952	DIFFERENTIAL - REAR	LR124952 DIFFERENTIAL - REAR 3.0L DOHC GDI SC V6 PETROL / Remanufactured Part / To: GA999999	$1,893.05	1
4026	LR070157	DIFFERENTIAL - REAR	LR070157 DIFFERENTIAL - REAR 4.4L DOHC DITC V8 Diesel / Remanufactured Part / From: GA249553	$1,893.05	1
6730	TYB500110	PLUG - OIL DRAIN	TYB500110 PLUG - OIL DRAIN Drain Plug, Plug - Oil Drain	$4.31	1
56615	TYB500060	PLUG - FILLER	TYB500060 PLUG - FILLER Filler Plug	$3.35	1
